Synthesizer Voice A-111-5 System A-100 DOEPFER
6
1

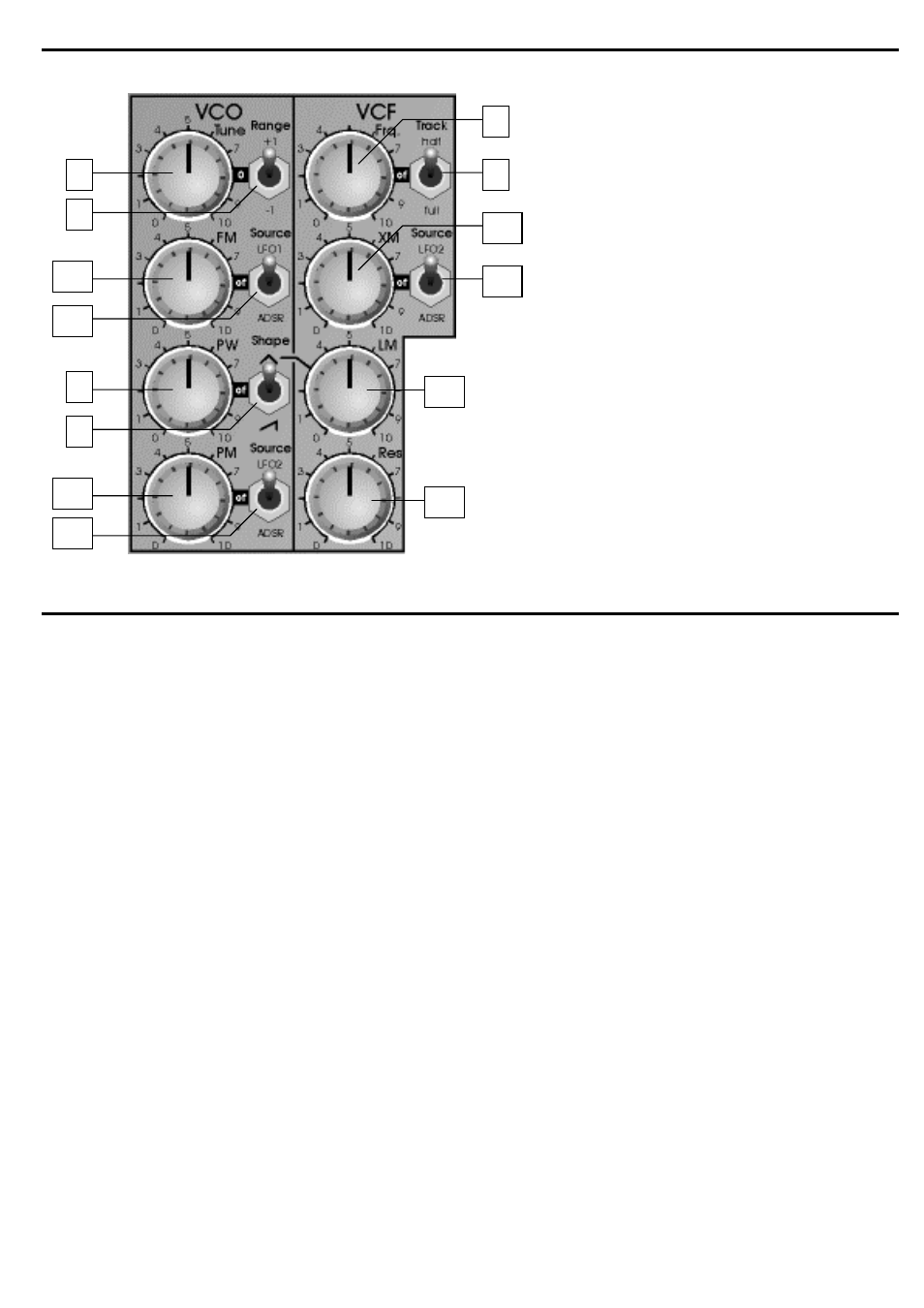

Fig. 2a: Front Panel
(VCO and VCF)
1 VCO
Tune
2 VCO Range Switch (Octave Switch)
3a VCO FM Source Switch
3b VCO FM Level
4
VCO Waveshape Switch
5 VCO Rectangle Pulsewidth
6a VCO Pulsewidth Modulation Source
6b VCO Pulsewidth Modulation Level
7 VCF
Frequency
8 VCF Tracking Switch
9a VCF exponential FM Source Switch
9b VCF exponential FM Level
10 VCF linear FM Level
11 VCF
Resonance
2
3b
3a
5
4
6b
6a
7
9a
8
9b
10
11
