Doepfer A-101-9 Universal Vactrol Module User Manual
Page 8
DOEPFER
DOEPFER
DOEPFER
DOEPFER
System A-100
Universal Vactrol Module A-101-9
8

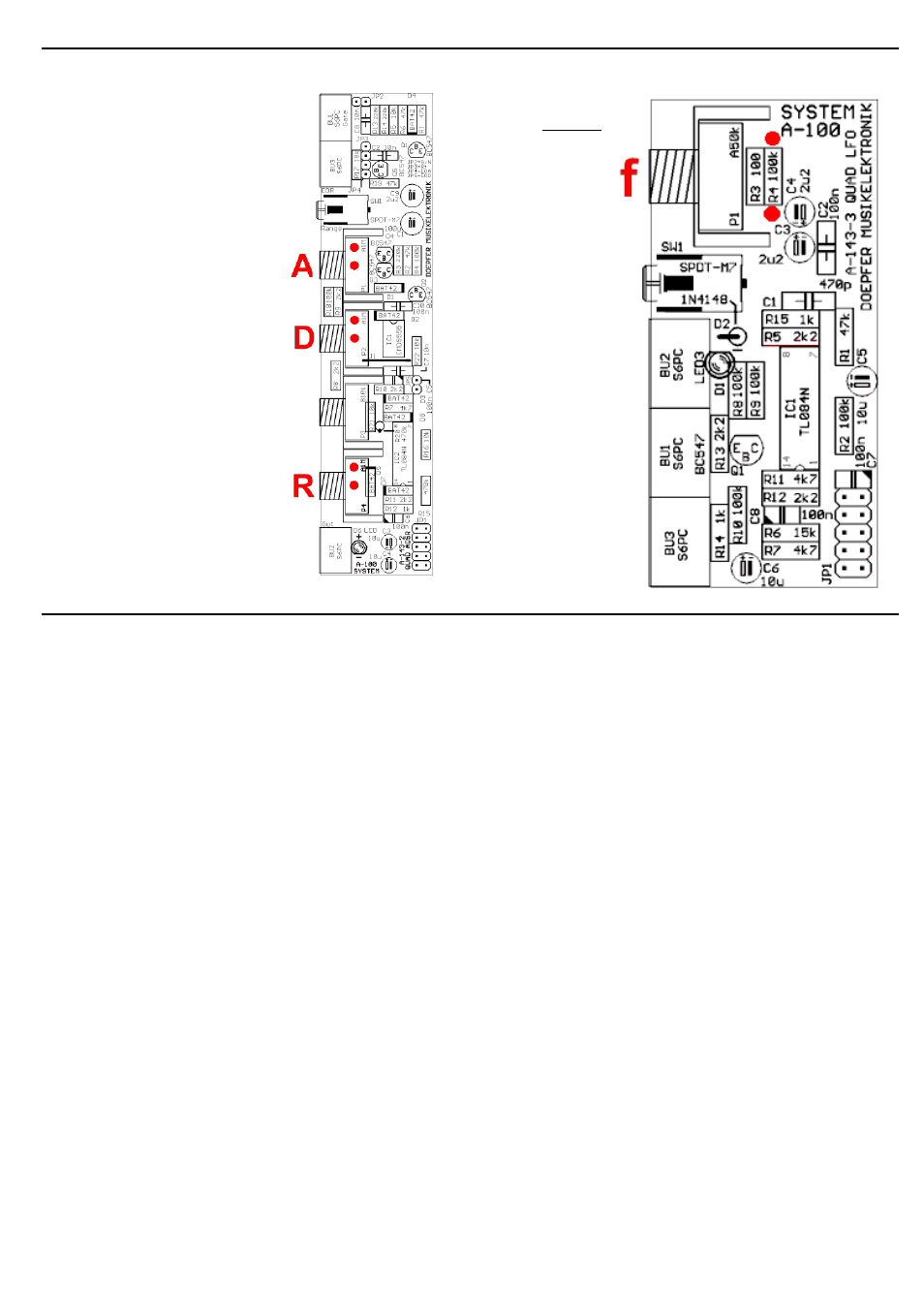

5.3. Envelope Generator A-143-2 (A, D, R)
Affected potentiometers:
Attack (A): P1
Decay (D): P2
Release (R): P4
5.4. A-143-3 Quad LFO (frequency)
Affected resistors:
frequency: R4
(has to be increased
from 100k to about 1M
and connected in
parallel to VAC1 or
VAC2)
