8. BRAKES
NOTE: While the mower is in motion, all braking
is performed dynamically through the hydraulic
pumps and traction motors within the IHTs. This
is controlled by the lap bars. When parked, with
the engine off, the hydraulic system locks the
drive wheels.
8.1. To push the unit, you must release the hydraulic
brake. Locate the release levers at the rear of
the transmission mounting bracket. Pull them
toward the rear and lower the wide area of the
rod into the keyhole slot.
8.2. Lift and safely support the rear of the mower.
8.3. Remove the lug nuts from the rear wheels using
a 3/4” socket, and remove the wheels.
8.4. Prior to adjustment, check the condition of the
parking brake cables. See Figure 8.4.
• The cables should not be chafed, kinked, burnt,
or corroded. They should move freely.
• The springs should not be over-stretched or cor-
roded.
8.5. Unbolt the left side control console using a 3/8”
socket, and remove the console.
NOTE: Disconnect the left neutral switch to
avoid damaging electrical components.
8.6. Inspect the lever end of the cables. The Z-fitting
on the lever end of the cable should not be dam-
aged. The cable housing ends should lock
securely into the bracket. See Figure 8.6.

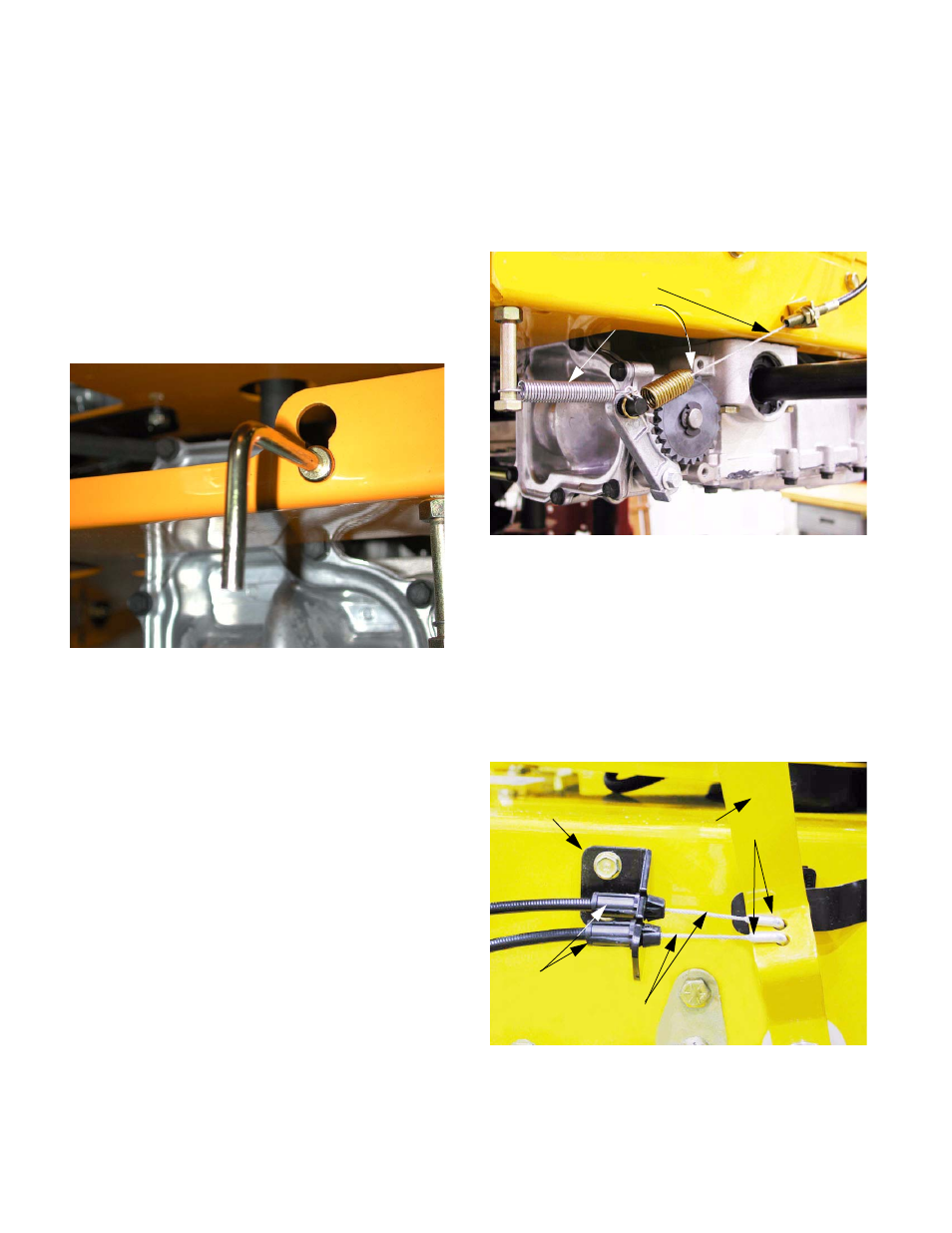

Figure 8.1
Figure 8.4
Check condition of:
cables
springs
return springs
Figure 8.6
Cable bracket
Z-fittings
Cable ends
Cable cores
Parking brake
lever
