Series 1000 and 1500
68
36. STEERING ADJUSTMENT / ALIGNMENT
IMPORTANT: The front tires will have a “TOE-
IN” between 1/16” and 5/16” to allow the unit to
track properly.
36.1. Check the tire pressure in the front tires and
make certain that they are at approximately 14
PSI.
36.2. Place the unit on level ground.
36.3. Place the steering wheel in the straight forward
position.
36.4. Lower the deck lift lever to the lowest position.
36.5. Line up the centering hole in the steering gear
with the centering hole in the support plate, and
insert a 1/4” Phillips screw driver up through
both. See Figure 36.5.
36.6. In front of the axle, measure the distance hori-
zontally from the inside of the left rim to the
inside of the right rim. See Figure 36.6.
36.7. From behind the axle, measure the distance hor-
izontally from the inside of the left rim to the
inside of the right rim.
36.8. The measurement taken in front of the axle
should be between 1/16” and 5/16” less than the
measurement taken behind the axle. If not, per-
form the following steps:
36.9. Loosen the jam nut at the rear of the right ball
joint that secures the ball joint to the drag link
using a 1/2” wrench and an 11/16” wrench. See
Figure 36.9.
36.10. Remove the hex nut and lock washer that
secures the right ball joint to the right axle
assembly using a 1/2” wrench and a 9/16
wrench.

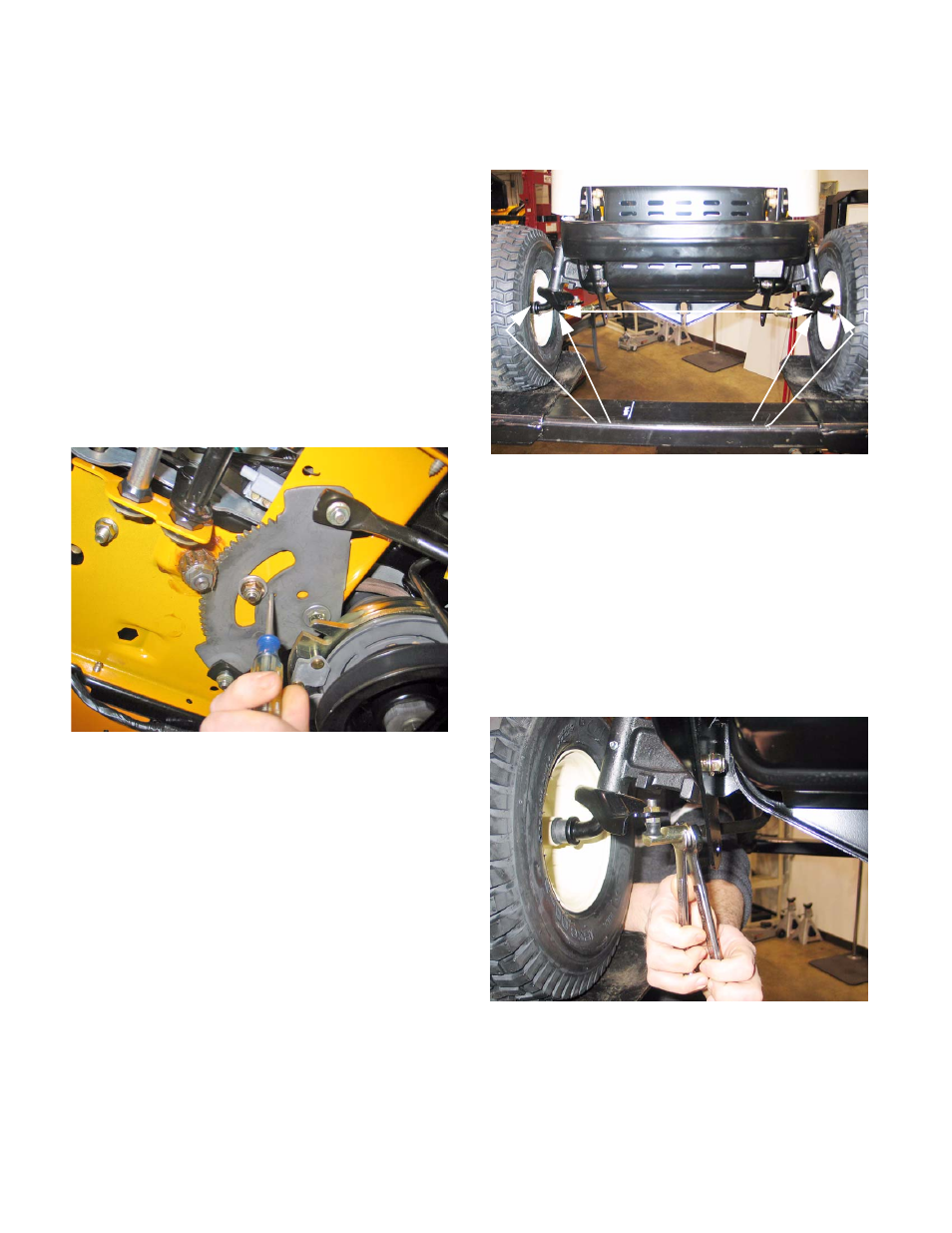

Figure 36.5
Figure 36.6
Measure rim-to-rim at the front and back of rim
Figure 36.9
