Network Video Server/IP Camera User Manual
20

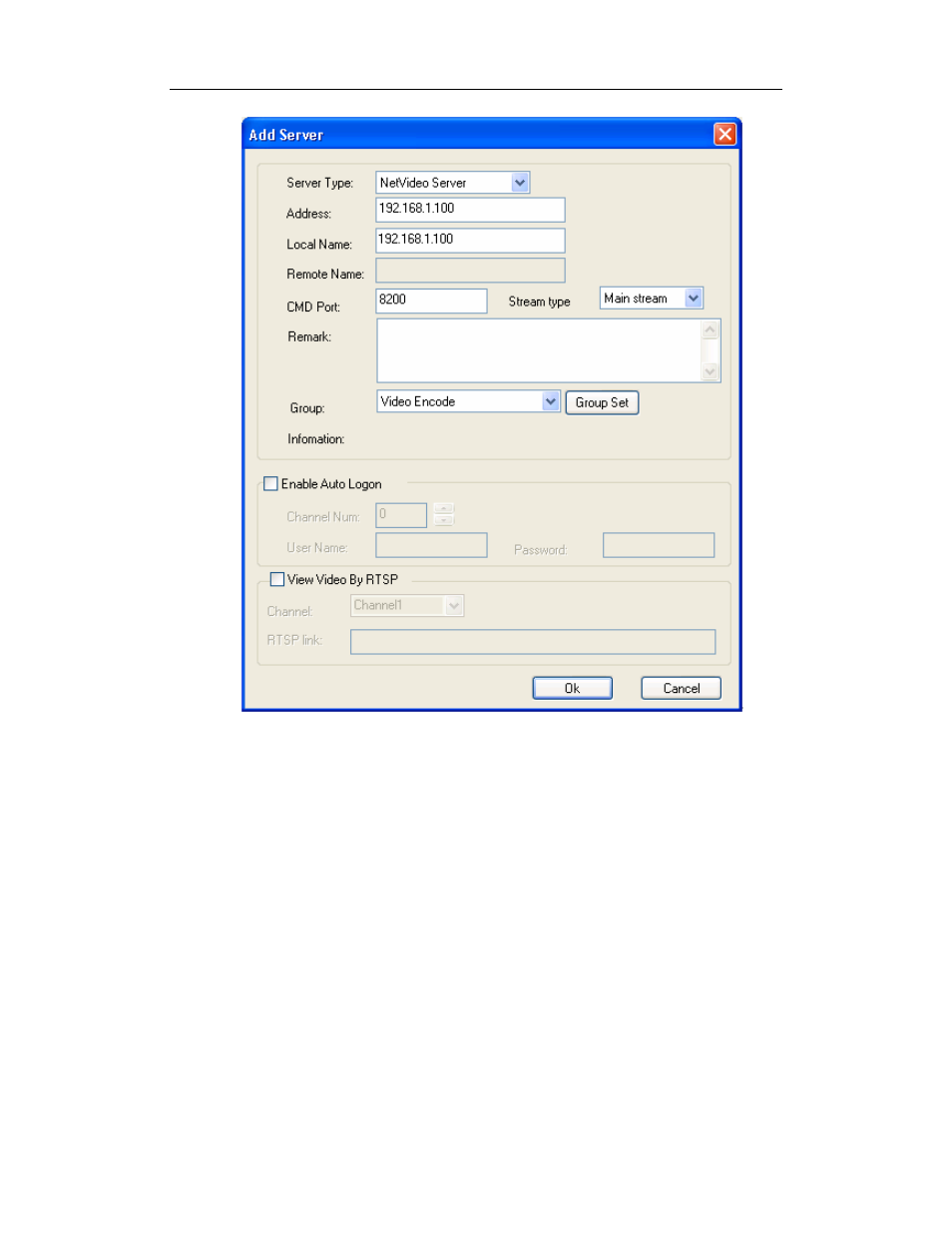

Step 1: click the pull down option box of Host Type; select the device type to be added.
Step 2: type remote address (fill in IP address or domain name) of device in Address field.
Step 3: type the Local Name defined by user.
Step 4: set data port number of device in Command Port, the port number of DVS/DVS/IP
Camera/37 Series network DVR is 8200 by default, this port number can be defined by user, and
fill in according to the data port in network setting.
Tick『Enable auto login server』, when you login the server next time, you need not to type
user name and password and can login the device automatically.
Step 5: after the setting is finished, return to the main interface of software, double click the
added device in the device list, and then double click the channel below the device to preview the
video.
