Digital Video Recorder User Manual
43
e
the speed dome has the protocols this DVR supports and set the parameters according to its manual.
STEP1 Press right mouse to show the control bar. Enter Menu---->System--->P.T.Z, see Fig 3.25.
3.6 PTZ Control
Please connect speed domes to the DVR via RS485 first, referring to 2.3.1 Rear Panel Interface. In addition, make sur

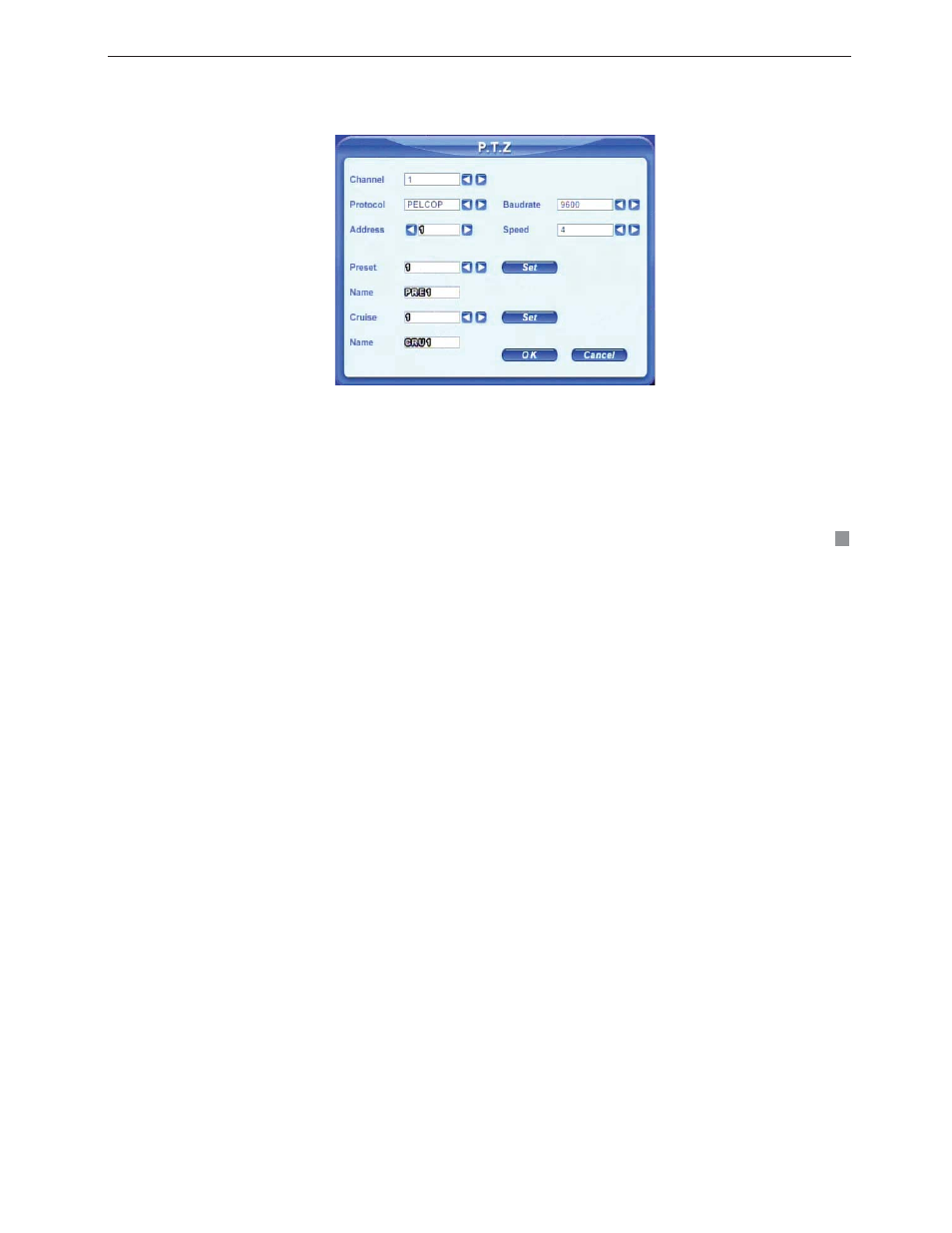

Fig 3.25 PTZ Setup
STEP2 Set protocol, baud rate, address according to the parameters of the speed dome.
STEP3 Click Set button at right of Preset. Here Fig 3.26 Set Presets. Adjust the speed dome.
Select a preset and click Save to a preset. User y.
users can set presets as
s can set 128 presets totall
