COP-USA DVRHPEG-8 User Manual
Page 14
Digital Video Recorder User Manual

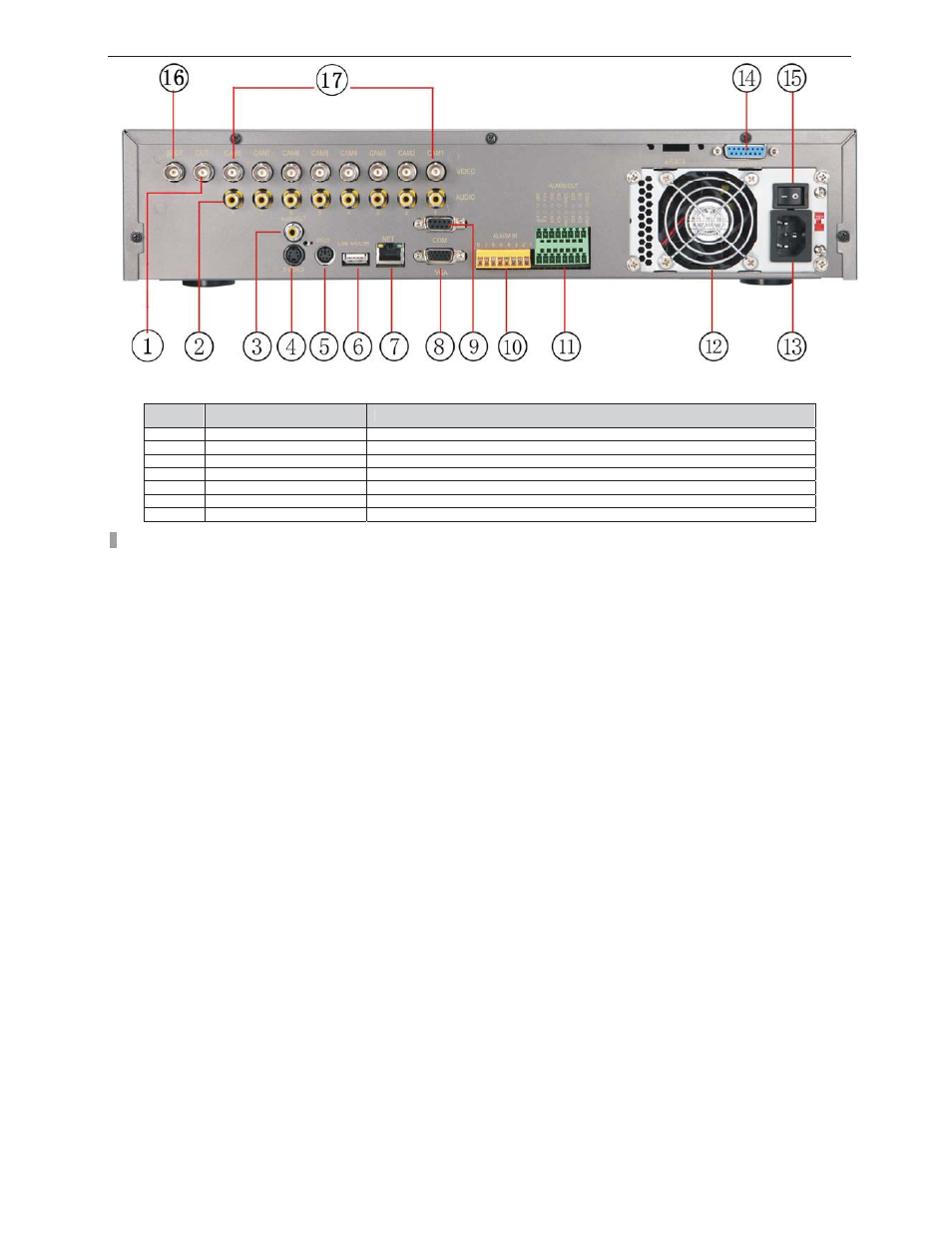

Fig 2.5 Rear Panel (1) for 8-channel DVR
Item
Name
Description
1
Video out
Connect to monitor
2
Audio in
Audio of channel from 1 to 8
3
Audio out
Audio output, connect to the sound box
4
S-video
S-Video output, connect to monitor
5
PS/2 port
Connect to PS/2 mouse
6
USB MOUSE
Only for USB mouse
7
RJ45 PORT
Connected to internet
8
