29
¾ ᇹEnable Alarm Snapshotᇺ When the sensor trigger events happened, system will send alarm
JPG image to specific client automatically. The client must be specified firstly and set its IP
address in “network setting”
¾ ᇹPreset channelᇺWhen the sensor is triggered, system will automatically preset dome as the
“PTZ preset position”, system must connect with a preset-supporting dome and set preset position
on the main interface.
¾ ᇹOutput SetᇺSystem provides 2 channels on-off value for user to connect with bells, lights,
beepers etc. When sensor trigger event happens, system will output on-off value to attached
devices.

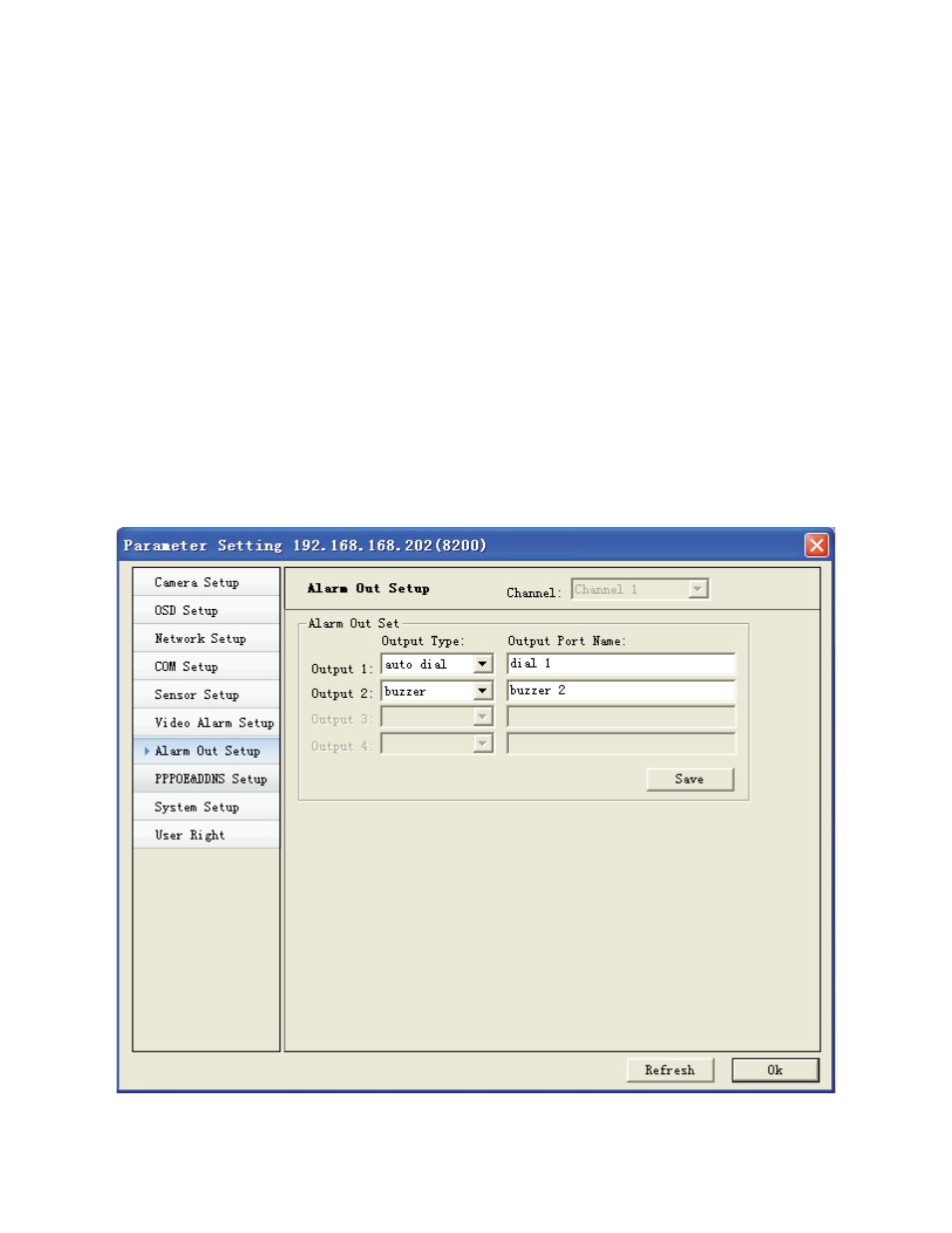

3.6.4. Sensor output setting
The function of alarm output can automatically trigger specific sensor output on-off value to
trigger alarm devices such as beepers. The setting is shown as following figure:
Figure 3-11 Camera output alarm setting
