18

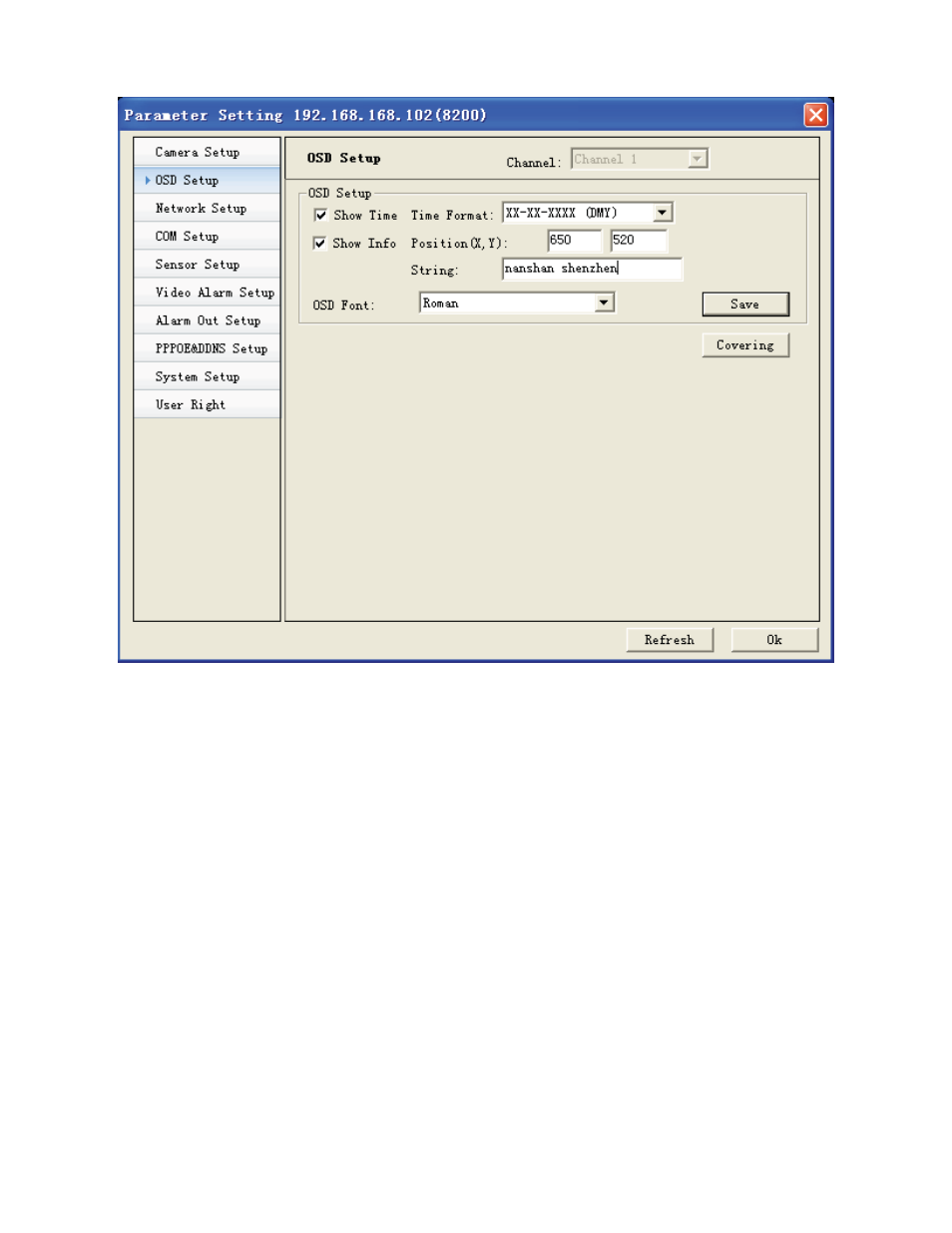

Figure 3-3 OSD setting
¾ ᇹDisplay information settingᇺThis setting achieves the characters overlay function, including
date overlay, time overlay, channel description overlay, and font display. Date and time will be
displayed on the top left of the preview image. Channel description displays the location with
coordinate X (0~720) and Y(0~576)
¾ ᇹMask zone settingᇺ᧶This setting achieves the video mask setting function on specific zone.
Click “Covering” by left mouse button, a setting dialogue box will pop-up. Then draw a zone
where you would like to mask on the image with left mouse button and click “Ok”, the setting is
finished. If you would like to cancel the mask setting, click “Clear” with left key and click “Ok”
directly.
