6.1 Checking Thick Materials

For checking materials over 1 inch in thickness, use precision
ground gage blocks in conjunction with the MTG.

Example: If you are checking a 2 inch thick part you can use a
1 inch gage block positioned under the sample to obtain the
thickness values.

The maximum sample height capacity of the MTG is 5 inches.

6.2 Data

Port

For those requiring data output for recording and quality
documentation purposes, a serial output cable and
Windows-based software program is optionally available.

– 5 –

5.0 U

SING THE

I

NDICATOR

F

UNCTION

K

EYS

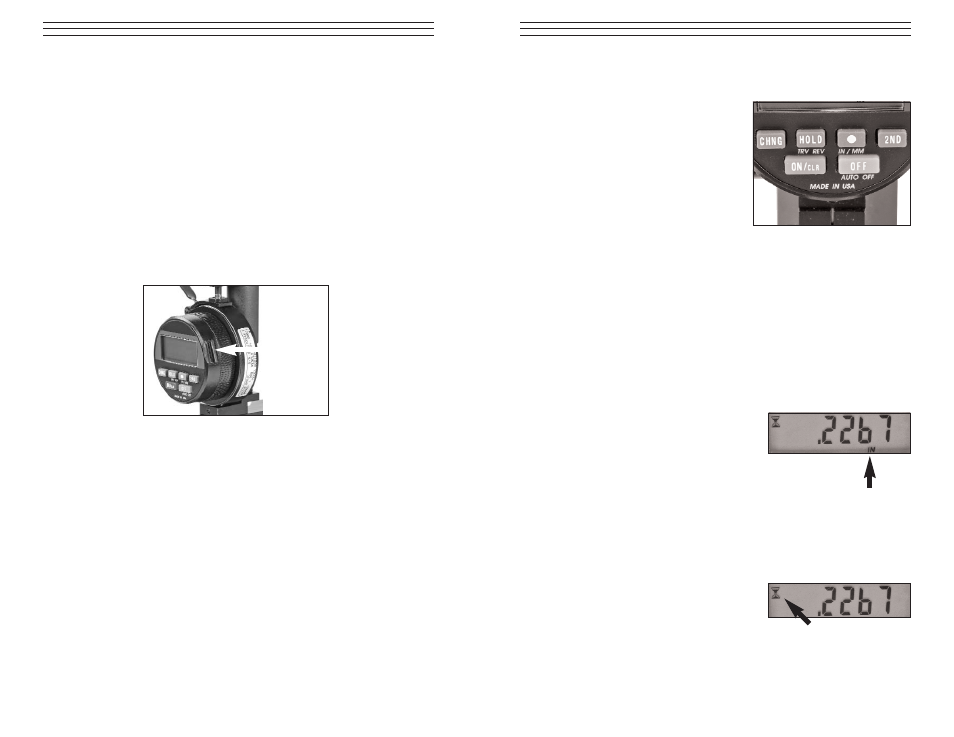

To turn the indicator ON.

1. Press and hold the ON/clr key

until clr appears on the indicator
display, then release

To turn the indicator OFF.

1. Press and release the OFF key

To clear the indicator display to zero.

1. Press and release ON/clr key

until .0000 appears on the display.

To turn MAX HOLD on and off.

1. Press and release the HOLD key . MAX will appear on the screen

when this fuction is active. Repeat to turn this fuction off.

To change the indicator units from inch to millimeter or
millimeter to inch.

1. Press and hold 2nd key until 2nd appears on bottom of display,

then release.

2. The newly selected units will appear

at the bottom of the display.
MM for millimeter or IN for inch.

3. Press and release “•” within three

seconds to lock your selected units.

To turn AUTO OFF on and off

1. Press and hold 2nd key until 2nd appears on bottom of display,

then release.

2. Press and release the OFF key

within three seconds to activate
your selection. An hourglass will
appear on the left side of the display
when the AUTO OFF feature is active

NOTE: AUTO OFF is activated after 10 minutes of non-use.

– 8 –

Data Port
