– 3 –
2.0 U NPACKING AND S ET -U P
Your MTG system is packaged completely assembled and tested at our
plant to ensure a quality product. However, there are some basic steps
that must be performed before using your MTG for the first time.
1. Carefully unpack the MTG. Take special care when lifting to
support the unit from the granite base when unpacking and
whenever moving the unit.
2. If additional presser feet and weights (mass) have been ordered be
sure to also unpack those items, which are wrapped separately.
3. After the unit is unpacked, it can be cleaned with alcohol,
WITH EXCEPTION OF THE ELECTRONIC INDICATOR.
4. The MTG should then be placed on a clean, flat vibration-free
surface for use.
3.0 I NSTALLING B ATTERIES
1. Using a narrow edge, flathead
screwdriver, gently pry under
the tab on the left side of the
indicator bezel and slide out
the battery tray as you turn
the indicator face down.
2. Insert two CR 2450 Lithium
batteries (3V) into the tray
cavities, positive (+) side up.
Now slide the tray back into its
slot, taking care that the batteries
stay in proper position.
– 10 –

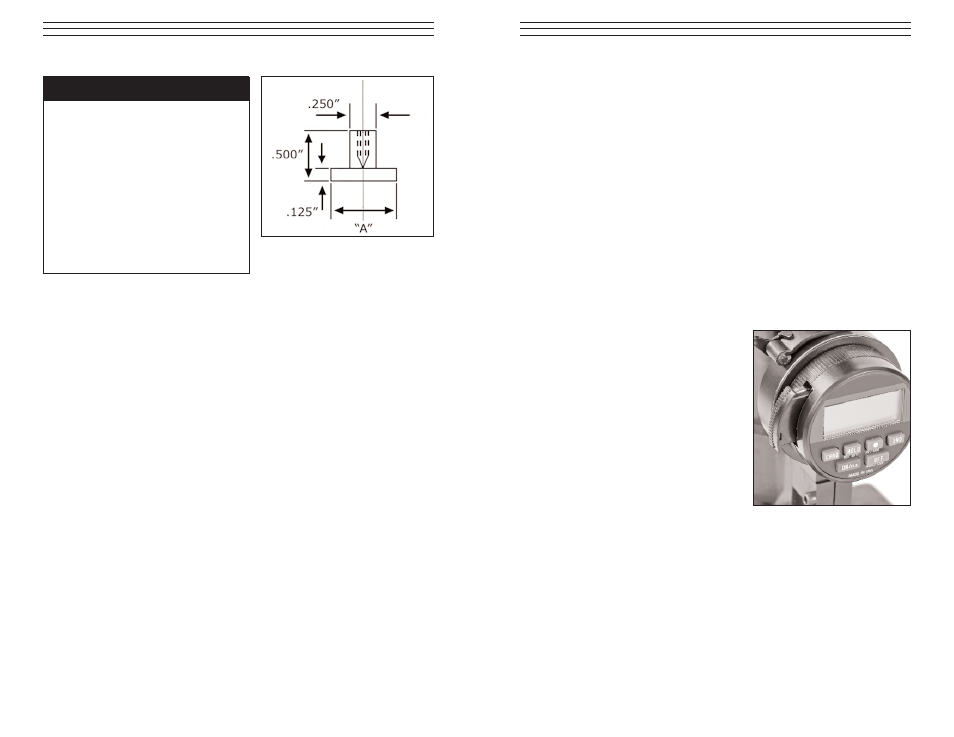

Presser Foot “A” Dim. (mm)
PF-1 10.0
PF-2 8.0
PF-3 6.3
PF-4 6.0
PF-5 5.0
PF-6 4.0
PF-7 3.2
PF-8 16.0
PF-9 25.0
Optional Presser Foot
(Feeler / Anvil)
