– 4 –

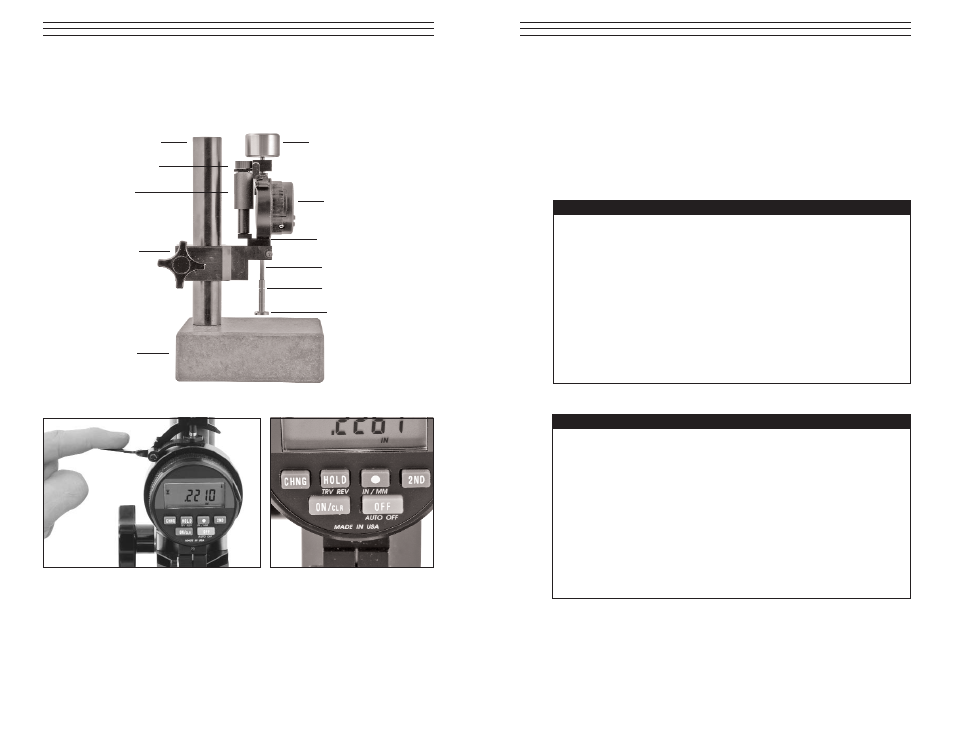

4.0 O

VERVIEW

Function Keys

Lifting Arm

– 9 –

7.0 A

CCESSORIES

The MTG can be used to check the thickness of rubber and rubber
type materials. Use the optional presser feet and mass combinations
to check a wide assortment of other materials, such as foams, tapes,
films, textiles, felts, sheetmetal, foils, fabrics, cloth, leather, fiberboard,
plywood, paper, etc.

Foot Model

Foot Dia. (mm)

Mass Model

Mass (g)

MTG-01-1 10.0 MTG-03-1

176

MTG-01-2 8.0 MTG-03-2

113

MTG-01-3 6.3 MTG-03-3

70

MTG-01-4 6.0 MTG-03-4

63

MTG-01-5 5.0 MTG-03-5

44

MTG-01-6 4.0 MTG-03-6

28

MTG-01-7 3.2 MTG-03-7

18

MTG-01-8 1

6.0

MTG-03-8

452

MTG-01-9 25.0 MTG-03-9

1104

For Materials Equal to or Above 35 IRHD

Presser Foot/Mass Combinations

Foot Model

Foot Dia. (mm)

Mass Model

Mass (g)

MTG-01-1 10.0 MTG-04-1 80

MTG-01-2 8.0 MTG-04-2

52

MTG-01-3 6.3 MTG-04-3

32

MTG-01-4 6.0 MTG-04-4

29

MTG-01-5 5.0 MTG-04-5

20

MTG-01-6 4.0 MTG-04-6

13

MTG-01-7 3.2 MTG-04-7 8

MTG-01-8 1

6.0

MTG-04-8

212

MTG-01-9 25.0 MTG-04-9

518

For Materials Below 35 IRHD

Presser Foot/Mass Combinations

Note: Custom sized presser feet and weights (mass) to fit specific needs or
applications are also available.

Column

Air Dampener Knob

Air Dampener

Adjustment Knob

Granite Base

Presser Foot

Swivel Connector

Indicator Spindle

Stem Mount Arm

Indicator

Mass (Weight)
