TI-45N Operating Instruction Guide
4
Mode Selector
Back Light
On/Off
Probe Zero
Test Plate for Zero Adjustment
Equivalent to 0.197"
(5.00 mm)
steel
On/Off Switch
Probe Cable Connectors
Red: transmitter
Green: receiver
LCD Display
Increase Sonic Velocity
or Thickness Adjustment
Decrease Sonic Velocity
or Thickness Adjustment
Probe

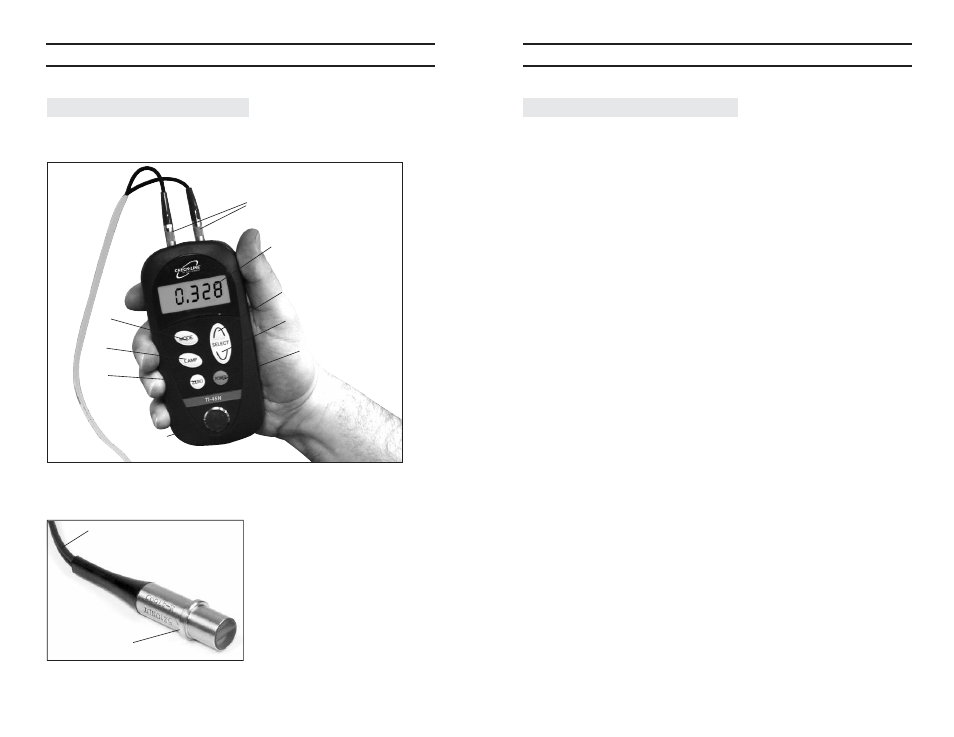

3.0 D ESCRIPTION OF G AUGE
3.1 Gauge
3.2 Probe Assembly
Probe Cable: Do not bend sharply.
Do not bring into contact with high
temperature objects (> 60 °C)
TI-45N Operating Instruction Guide
9.0 S PECIFICATIONS
Range (steel) Flat plate 1.00 to 199.99 mm
Pipe 30 in. diameter and 1.50 in. thickness or more
Accuracy (mm) ±0.02
Errors (mm) 1.00 to 99.9 ±0.05
100.00 to 199.99 ±2% / rdg
Probe (standard) 5Z10NDT-M
Probe Cable HF coaxial cable: 1.5 D-QEVX2C, 1.0m
Connector: FFS00250CTCE31
Object Material Iron, steel, aluminum, any other metal, hard plastics,
glass and ceramics
Sonic Velocity 1,000 – 12,000 m/s (10 predefined sonic velocities
Adjustable Range stored in meter
Display Digital LCD display with backlight
Display Resolution 0.01 mm (1.00mm to 199.9mm)
Display Frequency Approx. 3 times / sec
Digits 4-1/2 (max 19999) the upper digit displays 1 only
Start-up Time Approx 2 Sec.
Power Supply 1 AA-type alkaline battery, 1.5 V
Operating Time >30 hours continuous operation
Usage: 2 sec. measurement followed by 10 sec standby
Test Panel for 5.00 mm thickness for steel (sonic velocity 5930 m/s)
Zero Adjustment come standard with gauge
Weight Meter: approx 150 g. Probe: Approx. 50 g
Dimensions 69 (W), 144 (L), 30 (H) mm
Operating Temperature -5 °C to 55 °C
Storage Temperature -10 °C to 55 °C
Warranty Meter: 1 year. Probe: 90 days
