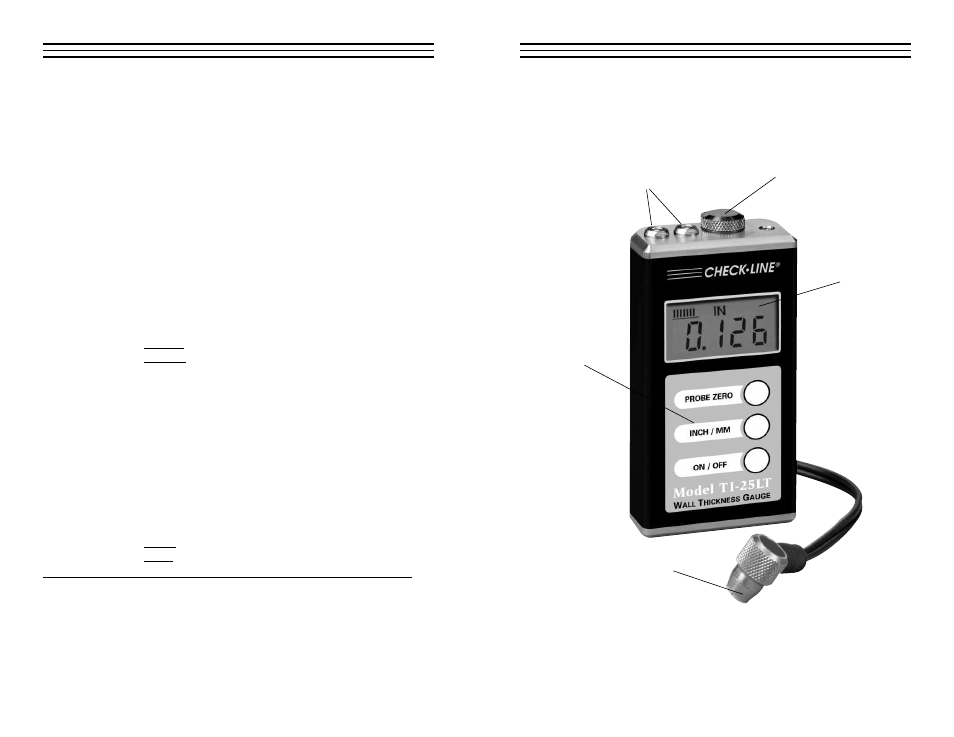

3 .0 O V ERV I EW O F G AU GE
3.1 Gauge
Probe
Receptacles
Probe Zero Test Plate and
Battery Compartment Cover
Backlit
LCDDisplay
Membrane
Keypad
Probe
– 14 –
7 .0 S PECI FI CAT I ON S
Range* 0.040–6.00" (1.00–150.0 mm)
Other ranges available with optional probes.
Resolution 0.004" (0.01 mm)
Display 4 1⁄ 2 -Digit, 0.5" Backlit LCD
Velocity
Range
.0787–.3937 in/µs (2000–10,000 m/sec.)
Probe 1⁄ 4", 5 MHz, actual wearface is 3⁄ 8" (9.5mm)
Probe
Wearface
PEEK (Polyethylethylkeytone)
Cable 4 ft. (1.2 m) waterproof cable with non-polarized,
quick-disconnect connectors. Optional lengths up to
50 ft. (15 meters).
Temp. Limits Ambient: –20 to 120 °F (–30 to 50 °C)
Material: 0 to 200 °F (–20 to 100 °C)
Special high temperature probes are optionally available.
Battery Type Two AA batteries
Battery Life 200 hours
Weight 710 ounces (280 g)
Size 2.5 x 4.5 x 1.25" (64 x 114 x 32 mm)
Accessories
Included
Probe/cable assembly, 4 oz. bottle of coupling fluid,
NIST Calibration Certificate, 2 AA batteries, operating
instructions, hard-plastic carrying case.
Warranty Gauge: 5 years
Probe: 90 days
*Measuring Range indicated is for steel. Actual range for other materials will vary based
upon the material’s sonic velocity and attenuation.
