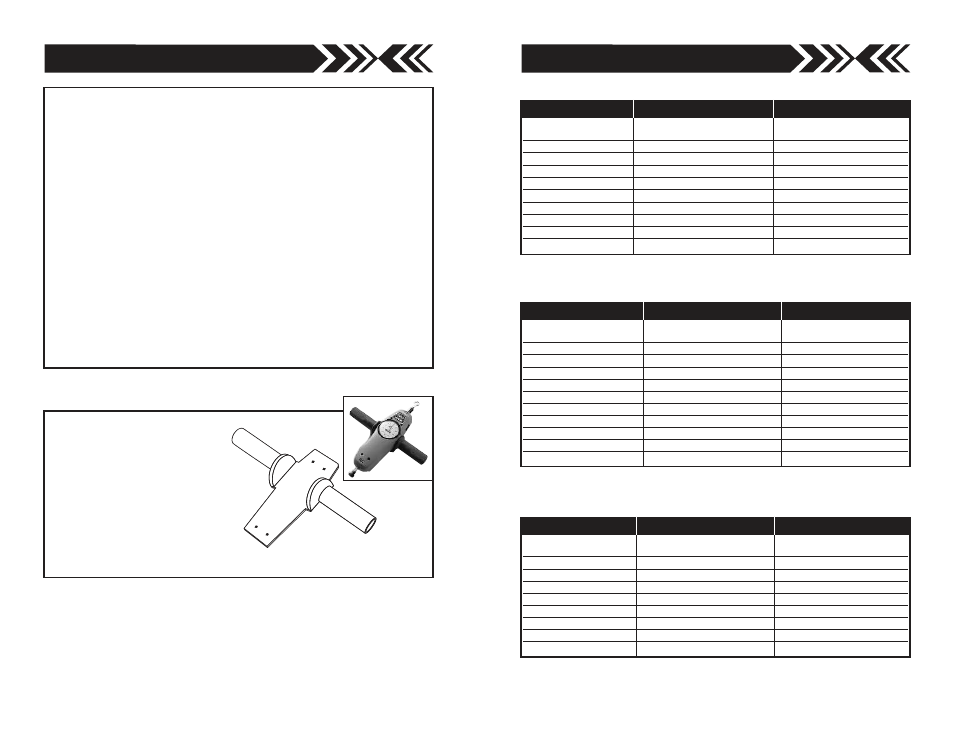

The OH-1/MOH-1 fits PS, MF
and FB series. Constructed of
high quality steel for rugged use, the
handle facilitates measurements of
heavy loads. Com
plete with
mounting screws, the OH-1
handle ensures safe and consis-
tent measuring conditions.
OPTIONAL HANDLE
IMPORTANT
1. Do not exceed the capacity of the unit and avoid shock loading.
2. Failure to allow for sufficient overload capacity in the load,
structure and mounting elements, may result in property
damage, serious injury, and death. For applications involving
suspension of equipment, additional safeguards are also a
necessity.
3. Do not use the tension shaft to measure compression or the
compression shaft to measure tension.
4. Accuracy may be affected if unit is exposed to high humidity
or dust.
5. Do not apply oil or chemical soap, which causes corrosion or
dust adhesion.
6. Do not remove warranty seal or disassemble gauge.
Disassembly voids warranty.
7. Specifications subject to change without notice.
Pounds Kilograms Newtons
Model
Capacity
Model
Capacity
Model
Capacity
(Resolution) (Resolution) (Resolution)
FB-32oz 32ozf (0.25 ozf) FB-1 kg 1 kgf (10 gf) FB-10 N 10 N (0.1 N)
FB-80oz 80ozf (1 ozf) FB-2 kg 2 kgf (20 gf) FB-20 N 20 N (0.2 N)
FB-2 2 lbf (0.02 lbf) FB-3 kg 3 kgf (25 gf) FB-30 N 30 N (0.25N)
FB-5 5 lbf (0.05 lbf) FB-5 kg 5 kgf (50 gf) FB-50 N 50 N (0.5 N)
FB-10 10 lbf (0.1 lbf) FB-10 kg 10 kgf (100 gf) FB-100 N 100 N (1 N)
FB-20 20 lbf (0.2 lbf) FB-20 kg 20 kgf (200 gf) FB-200 N 200 N (2 N)
FB-30 30 lbf (0.25 lbf) FB-30 kg 30 kgf (250 gf) FB-300 N 300 N (2.5 N)
FB-50 50 lbf (0.5 lbf) FB-50 kg 50 kgf (500 gf) FB 500 N 500 N (5 N)
FB-100 100 lbf (1 lbf)
FB-150 150 lbf (1 lbf)
FB Ranges (Resolution) Accuracy: FB ±0.3% F.S. FB-150 ±0.5%F.S.
PS/MF Ranges (Resolution) Accuracy: PS±0.2% F.S. MF±0.3% F.S.
Pounds Kilograms Newtons
Model
Capacity
Model
Capacity
Model
Capacity
(Resolution) (Resolution) (Resolution)
PS-32oz 32ozf (0.25 ozf) PS-0.5 kg 500 gf (2.5 gf) PS-10 N 10 N (0.05 N)
PS-80oz 80ozf (1 ozf) PS-1 kg 1 kgf (5 gf) PS-20 N 20 N (0.1 N)
PS-2 2 lbf (0.01 lbf) PS-2 kg 2 kgf (10 gf) PS-30 N 30 N (0.2 N)
PS-5 5 lbf (0.025 lbf) PS-3 kg 3 kgf (20 gf) PS-50 N 50 N (0.25 N)
PS-10 10 lbf (0.05 lbf) PS-5 kg 5 kgf (25 gf) PS-100 N 100 N (0.5 N)
PS-20 20 lbf (0.1 lbf) PS-10 kg 10 kgf (50 gf) PS-200 N 200 N (1 N)
PS-30 30 lbf (0.2 lbf) PS-20 kg 20 kgf (100 gf) PS-300 N 300 N (2 N)
PS-50 50 lbf (0.25 lbf) PS-30 kg 30 kgf (200 gf) PS-500 N 500 N (2.5 N)
PS-100 100 lbf (0.5 lbf) PS-50 kg 50 kgf (250 gf)
Pounds Kilograms Newtons
Model
Capacity
Model
Capacity
Model
Capacity
(Resolution) (Resolution) (Resolution)
ESH-200 200 lbf (2 lbf) ESH-50 kg 50 kgf (0.5 kgf)
PSH-200 200 lbf (1 lbf) PSH-50 kg 50 kgf (0.25 kgf)
ESH-300 300 lbf (2.5 lbf) ESH-100 kg 100 kgf (1 kgf) ESH-1000 N 1000 N (10 N)
PSH-300 300 lbf (2 lbf) PSH-100 kg 100 kgf (0.5 kgf) PSH-1000 N 1000 N (5 N)
ESH-400 400 lbf (4 lbf) ESH-200 kg 200 kgf (2 kgf) ESH-2000 N 2000 N (20 N)
PSH-400 400 lbf (2 lbf) PSH-200 kg 200 kgf (1 kgf) PSH-2000 N 2000 N (10 N)
ESH-500 500 lbf (5 lbf) ESH-300 kg 300 kgf (2.5 kgf) ESH-3000 N 3000 N (25 N)
PSH-500 500 lbf (2.5 lbf) PSH-300 kg 300 kgf (2 kgf) PSH-3000 N 3000 N (20 N)
ESH and PSH Ranges (Resolution) Accuracy: ESH±0.5% F.S. PSH±0.3% F.S.
Overload capacity: 165 lbs. for all ranges Stroke: 10 mm F.S.
Overload capacity: 165 lbs. for all ranges Stroke: 10mm F.S.
Overload capacity: 135% of rated capacity Stroke: 10mm F.S.
