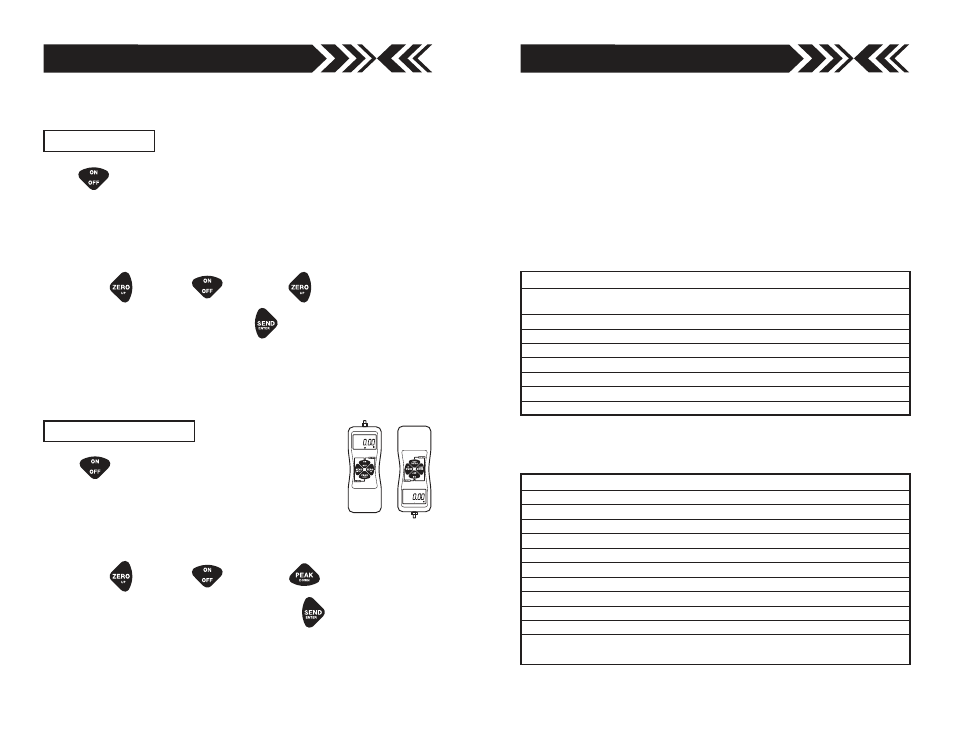

GENERAL OPERATION
Selecting Units
Press to turn on the gauge.The display briefly shows the gauge
capacity, then zero with a measuring unit.To change to other units:
1. Turn off the gauge.
2. Hold and press once. Press to cycle units (ozf or
lbf, gf or kgf, and N), then press to select. The LCD display
briefly shows the gauge capacity, then zero with the newly
selected measuring unit, which is retained as a default.
Reversing the Display
Press and the LCD display briefly shows the
gauge capacity and then zero. To reverse the display:
1. Turn off the gauge.
2. Hold and press once. Press to cycle between
standard and reverse display, then press to select. The
LCD display briefly shows gauge capacity and then zero with
the newly selected display, which is retained as a default.
STANDARD
DISPLAY
REVERSE
DISPLAY
Selecting Units
Reversing the Display
2. Mitutoyo Digimatic
Connect the CB-301 cable to the communications port and the
device receiving the data. Set up parameters as instructed from the
Mitutoyo processor manual.
3. ±1 VDC Analog Signal
Connect the CB-101 analog cable to the communications port and
the device receiving the data.
Accuracy ± 0.2% F.S., ± 1 LSD
Selectable Units lbf(ozf), kgf(gf) or Newtons
Overload Capacity 200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Data processing speed 1,000 data/second (30 data/second rate selectable)
Display Update 10 times/second
Power Rechargeable NI-MH battery pack or AC adapter
Battery Indicator Display flashes battery icon when battery is low
CPU 8-bit CMOS
Setpoints Programmable high/low setpoints with LCD indicators
Outputs RS-232C, Digimatic and ±1 VDC analog output
Operating Temp. 32° to 100°F (0° to 40°C)
Accessories included AC adapter/charger, hook, flat tip, conical tip, chisel tip,
notched tip, extension shaft
Model Capacity (Resolution)
Ounces (ozf)/ Grams (gf)/ Newtons
Pounds (lbf) Kilograms (kgf)
DS2-0.4 7.00 (0.01 ozf) 200.0 (0.1 gf) 2.000 (0.001 N)
DS2-1 18.00 (0.01 ozf) 500.0 (0.1 gf) 5.000 (0.001 N)
DS2-4 4.400 (0.001 lbf) 2.000 (0.001 kgf) 20.00 (0.01 N)
DS2-11 11.00 (0.01 lbf) 5.000 (0.001 kgf) 50.00 (0.01 N)
DS2-44 44.00 (0.01 lbf) 20.00 (0.01 kgf) 200.0 (0.1 N)
DS2-110 110.0 (0.1 lbf) 50.00 (0.01 kgf) 500.0 (0.1 N)
DS2-220 220.0 (0.1 lbf) 100.0 (0.1 kgf) 1000 (1 N)
DS2 Ranges (Resolution) Accuracy: ±0.2% F.S. ±1 LSD
DS2 Specifications
