2.2 Display
(1) Brightness in μs and/or degrees (BRIGHT)
(2) Delay in ms and/or degrees (DELAY)
(3) Phase shift (PHASE)
(4) Unit of frequency in rpm, Hz and/or FPM
(5) Value
(6) Multiplier (MULT.)
(7) Trigger divider (DIV.)
(8) Slow motion (SLOW)
(9) Trigger signal edge (TRIG.)
(10) Internal/external trigger (INT / EXT)
(11) Store / read parameters (MEMORY IN / MEMORY OUT)
(12) Pro mode (P)
(13) Battery status – full, half full or low

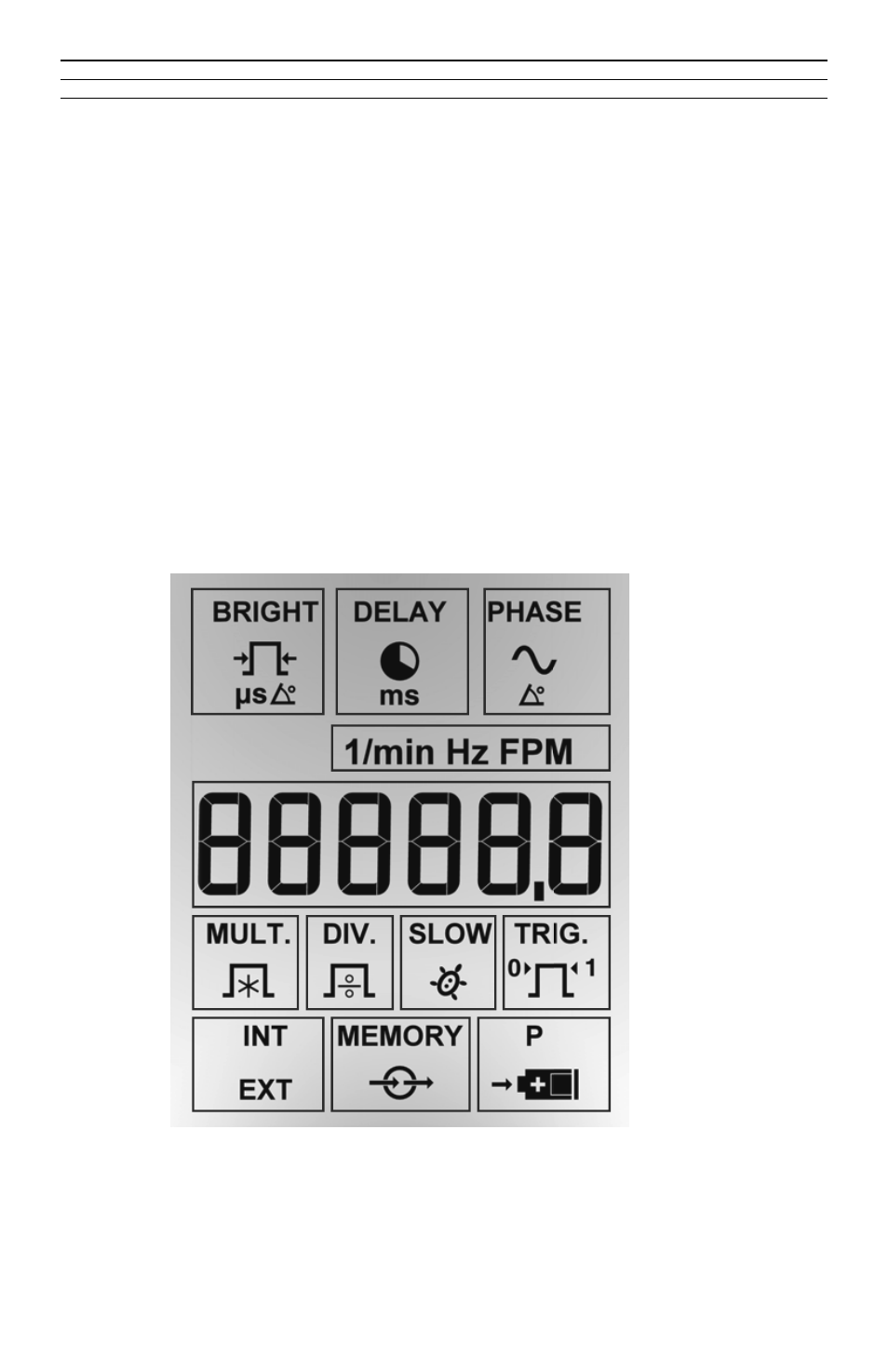

Fig. 2 - Display
