California Faucets StyleDrai 9177-HMA Hot Mop Adapter User Manual
Page 2
9177-HMA_ii_130923.doc
Pg 2
2. Mop hot tar over top of cast iron
BODY and surrounding sloped floor
3. Place HOT MOP ADAPTER onto hot
tar
4. Check level of HOT MOP ADAPTER
while tightening bolts
5. Tar over top of HOT MOP ADAPTER
to the RAISED RIDGE and insure tar is
clear of WEEP HOLE
6.
Perform water test
NOTE: Weep holes
shall be open and allow water to pass freely
7. Place a few small pieces gravel on
WEEP HOLES as shown
8. Install WEEP PROTECTOR and
StyleDrain
®
UPGRADE THROAT onto
HOT MOP ADAPTER.
9. Perform all standard flooring
installation methods and adjust height
of THROAT as necessary for finished
floor surface.
NOTE: Hot Mop Adapter may be used with
INSTANT-SET, EZ TEST, OATEY-151, and other
drains when liquid applied or sheet membrane
waterproofing systems are specified as well.
10. For EZ-TEST drains, it may be necessary
to cut off some of the lower threaded
section on the StyleDrain
®
UPGRADE
THROAT as shown.
IMPORTANT: Prior to cutting, “stack up”
height (thickness) of all flooring materials must be
determined to allow for flush height of THROAT
to top surface with flooring.

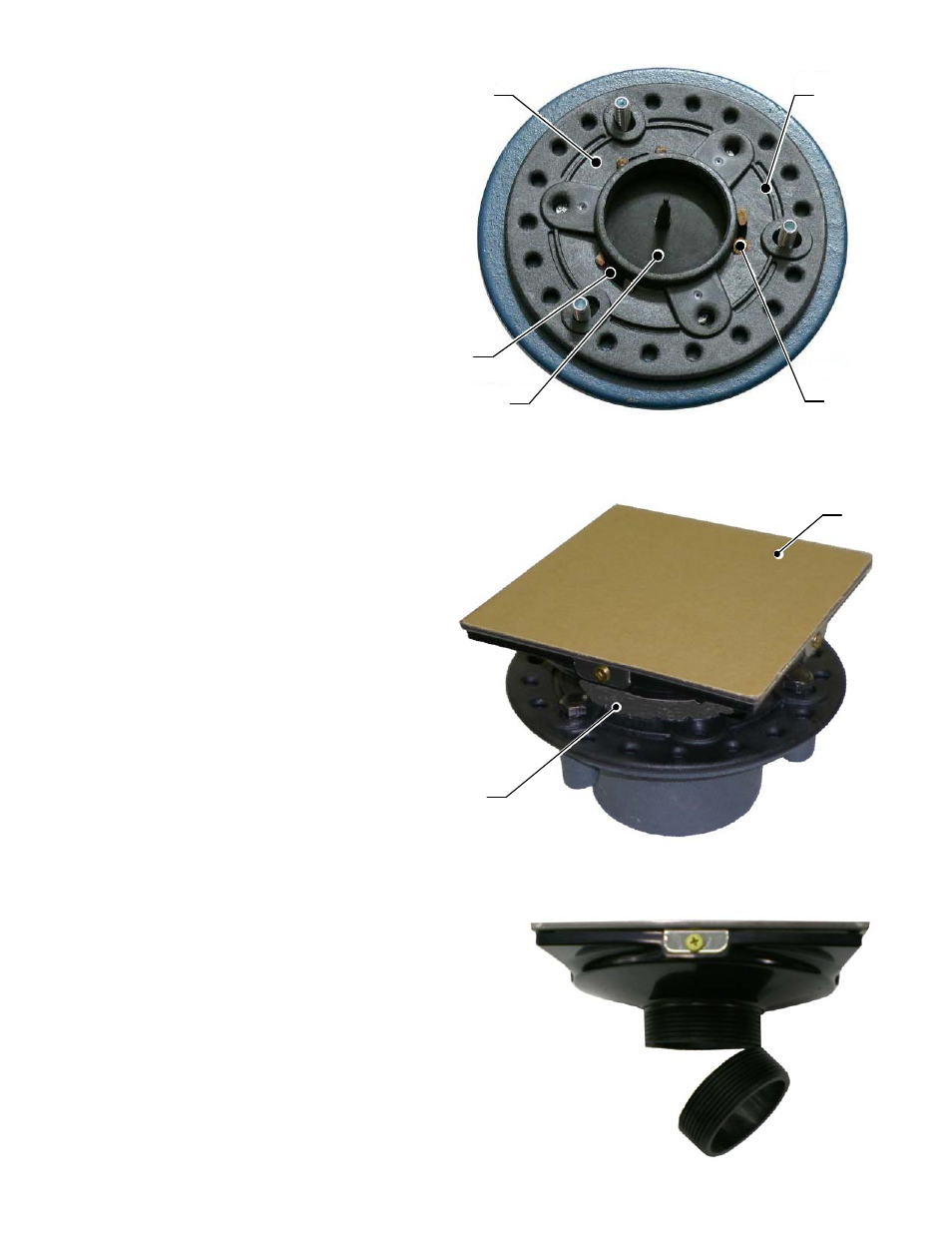

Throat with
Mudguard
Weep Hole
Protector
Weep
Plane
Weep Hole
Test Plug
Gravel
Raised Ridge
