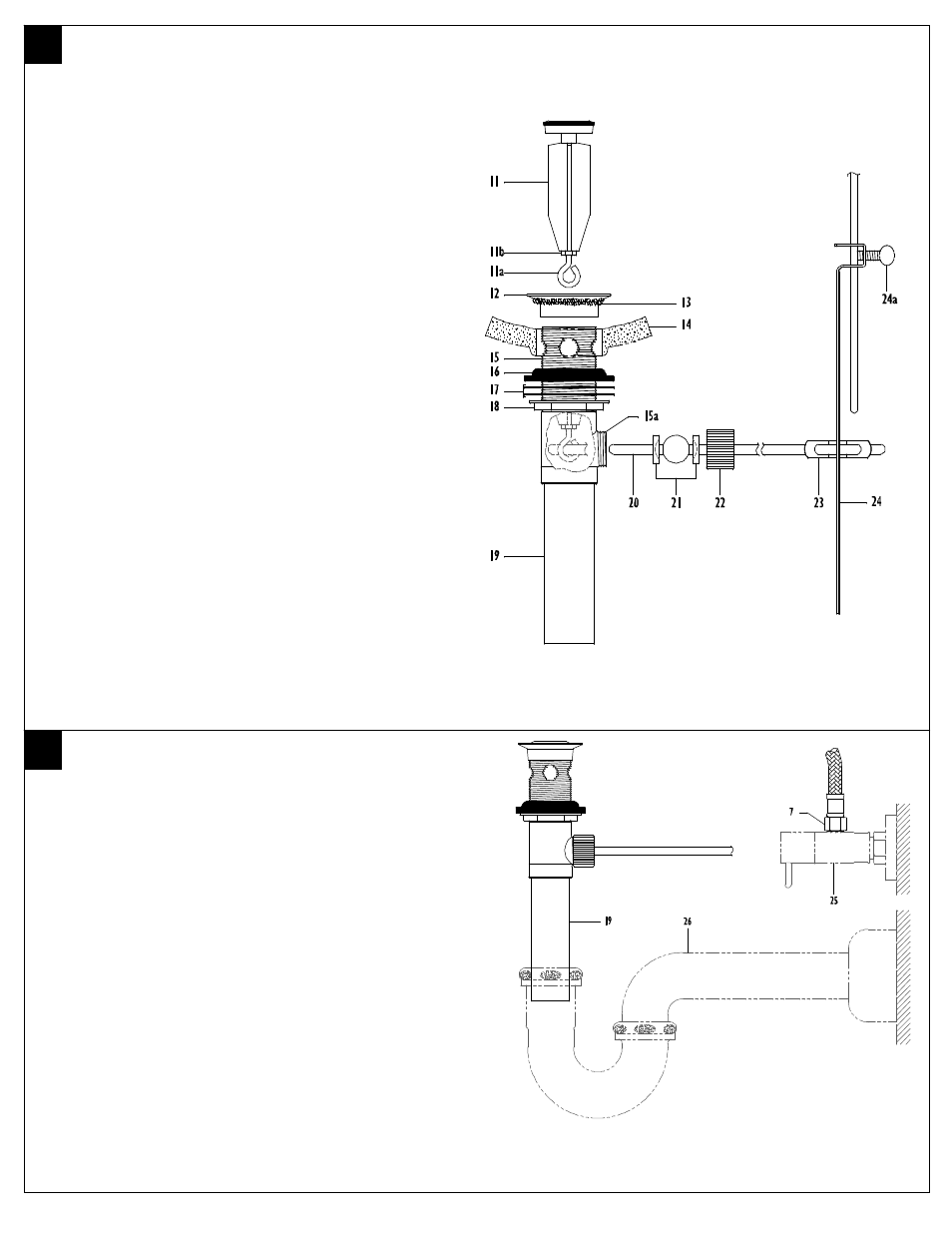

INSTALLING POP-UP DRAIN

• Remove COLLAR (12) from pop-up assembly and apply

SILICONE CAULK (13) (or equivalent) to underside of
COLLAR (12)

CAUTION: Do not use or any oil base sealant that may damage finish

• Insert DRAIN BODY (15) from underside through sink

DRAIN HOLE (14) & attach to COLLAR (12)

• Align BALL ROD HOLE (15a) toward LIFT ROD (4) and

firmly tighten FLANGE NUT (18) against FRICTION

WASHER (17), MACK WASHER (16) and sink DRAIN

HOLE (14)

• Remove TAILPIECE (19) from DRAIN BODY (15), apply

thread sealant to TAILPIECE (19) threads and tighten
into DRAIN BODY (15)

• Insert STOPPER (11) into COLLAR (12) & rotate EYE-

SCREW (11a) to accept BALL ROD (20)

NOTE: If necessary, adjust stopper eye-screw height by loosening LOCK
NUT (11b) and rotating EYE-SCREW (11a), retighten LOCK NUT (11b)

• Remove spring CLIP (23) from BALL ROD (20)
• Remove NUT (22) and both CONE WASHERS (21)

from DRAIN BODY (15) and place on BALL ROD (20)
as shown

• Insert BALL ROD (20) with CONE WASHERS (21) into

BALL ROD HOLE (15a) and through EYE-SCREW (11a)

• Tighten NUT (22), but allow BALL ROD (20) to freely

move up and down

• Place STRAP (24) onto LIFT ROD (4) and tighten

THUMB-SCREW (24a)

Place one end of CLIP (23) onto BALL ROD (20), then

STRAP (23), gently squeeze CLIP (23) and slide other
end of CLIP (23) onto BALL ROD (20)

Check proper operation of STOPPER (11) and adjust by

sliding STRAP (24) on LIFT ROD (4)


SUPPLY & WASTE CONNECTIONS

• Connect blue colored FLEX HOSE (7) to cold SUPPLY

VALVE (25) and red colored FLEX HOSE (7) to hot
SUPPLY VALVE (25)

IMPORTANT: Flush supply lines and valves prior to installation to prevent
damage and malfunction of cartridge

• Connect waste P-TRAP (26) to drain TAILPIECE (19)

NOTE: Supply valves and P-Trap are not supplied with faucet. See CAL
TRIM for complete selection of matching products in desired finish

• Turn on cold and hot SUPPLY VALVES (25)
• Slowly open faucet lever by lifting lever and rotate to left

and right

• Check all connections for leaks and repair as necessary
• Give these instructions and Blue Plastic Aerator Key to

consumer for safe keeping

NOTE: Occasionally, due to water conditions it may be necessary to

remove aerator and clean debris off with soft bristle toothbrush
