TYPICAL DRAIN INSTALLATION
This faucet does not come with a drain because the typical lift
rod style drains are not practical for most vessel sinks. Vessel
sinks are very unique and therefore a standard drain is
generally not convenient. Cal Trim, a division of California
Faucets, offers a complete selection of styles (i.e. Umbrella,
Lift & Turn, Grid, etc…) and configurations (i.e. with/without
overflow holes and partially/fully polished & finished) to
compliment the range of vessel sinks available.

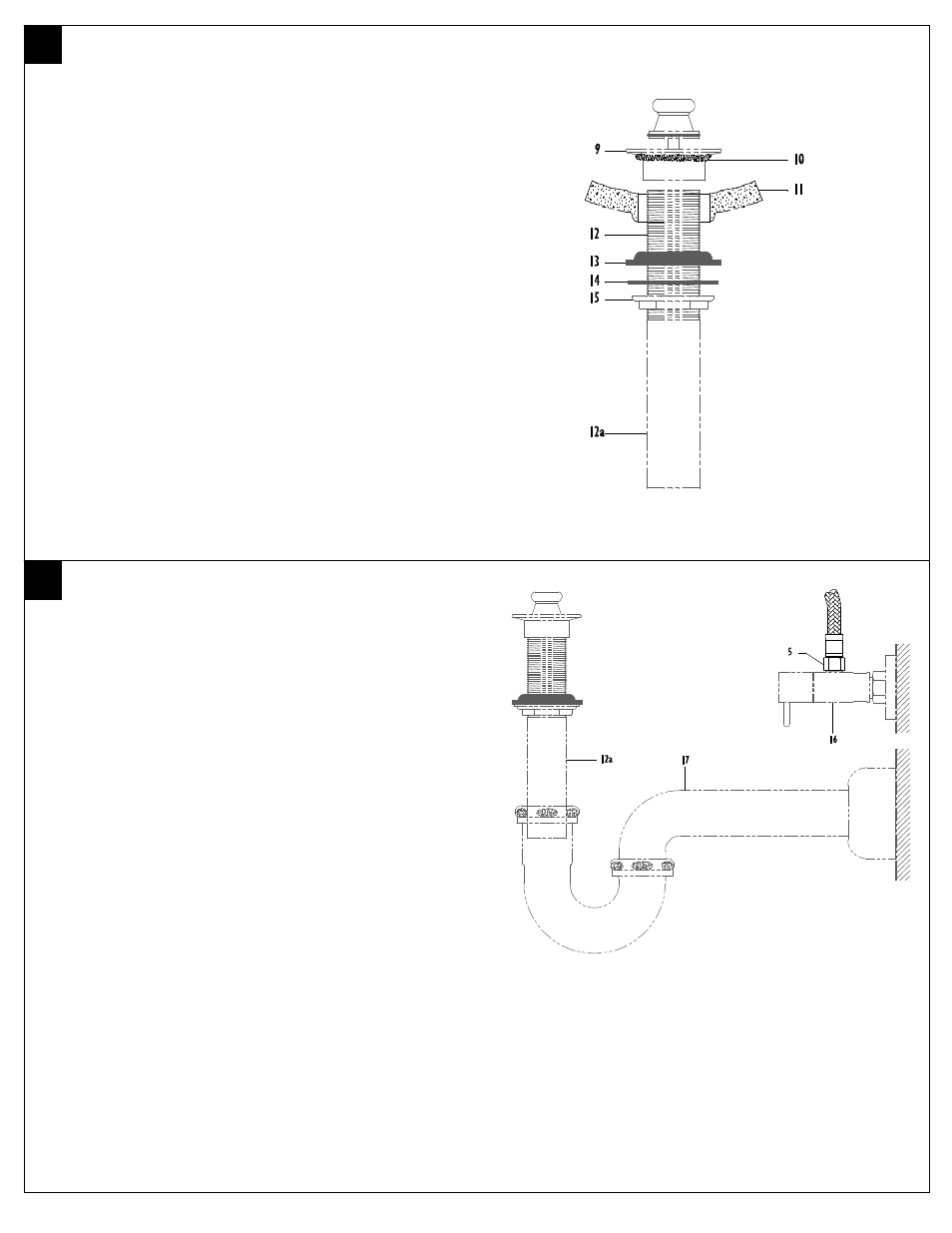

The following is a typical installation of Cal Trim’s Lift & Turn
Drain:
• Remove COLLAR (9) from drain assembly and apply
SILICONE CAULK (10) (or equivalent) to underside of
COLLAR (9)
CAUTION: Do not use or any oil base sealant that may damage finish
• Insert DRAIN BODY (12) from underside through sink
DRAIN HOLE (11) and attach to COLLAR (9)
• Firmly tighten FLANGE NUT (15) against FRICTION
WASHER (14), MACK WASHER (13) and sink DRAIN
HOLE (11)
SUPPLY & WASTE CONNECTIONS
• Connect blue colored FLEX HOSE (5) to cold SUPPLY
VALVE (16) and red colored FLEX HOSE (5) to hot
SUPPLY VALVE (16)
IMPORTANT: Flush supply lines and valves prior to installation to prevent
damage and malfunction of cartridge
• Connect waste P-TRAP (17) to drain TAILPIECE (12a)
NOTE: Supply valves and P-Trap are not supplied with faucet. See CAL
TRIM for complete selection of matching products in desired finish
• Turn on cold and hot SUPPLY VALVES (16)
• Slowly open faucet lever by lifting lever and rotate to left
and right
• Check all connections for leaks and repair as necessary
• Give these instructions and Blue Plastic Aerator Key to
consumer for safe keeping
NOTE: Occasionally, due to water conditions it may be necessary to
remove aerator and clean debris off with soft bristle toothbrush
