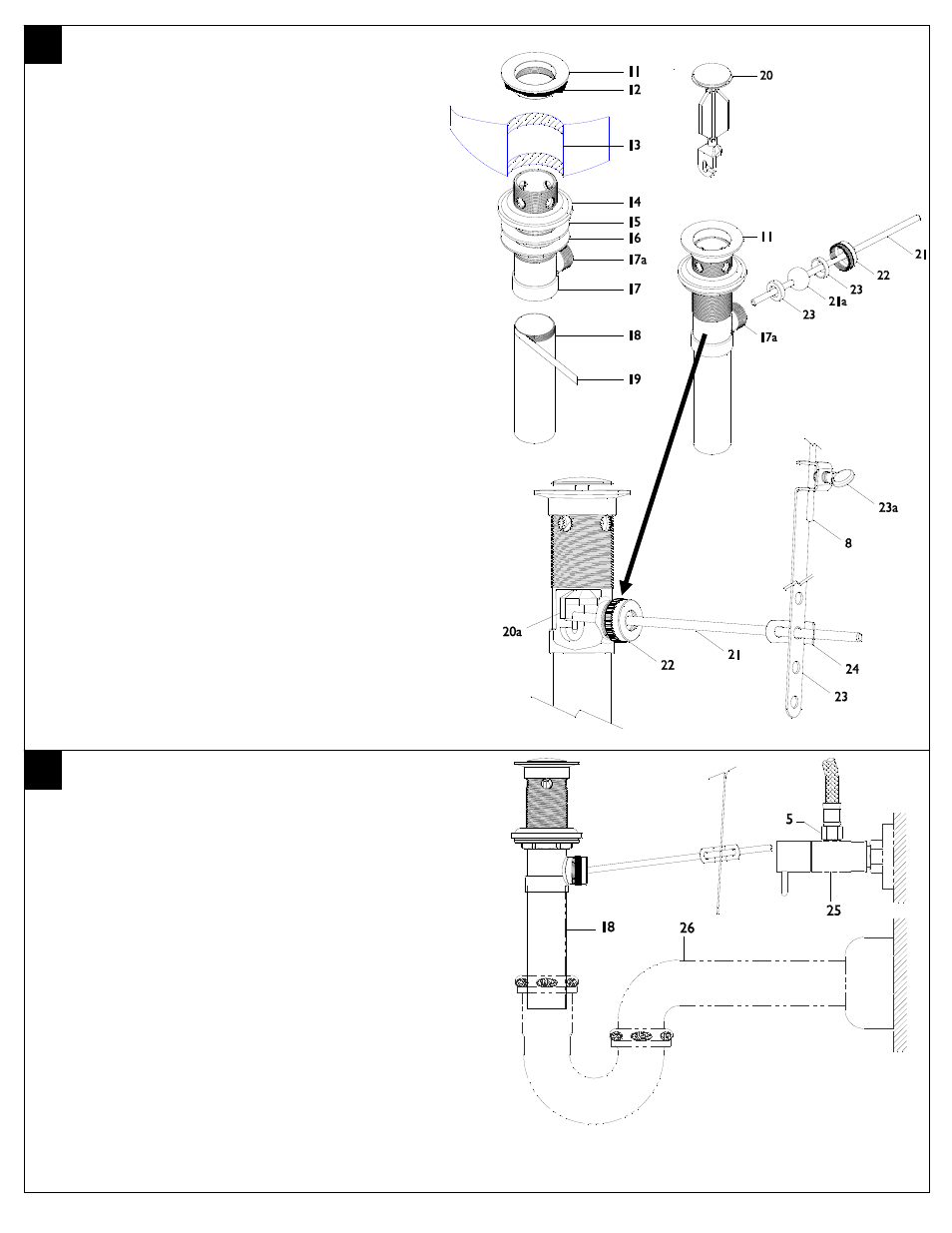

INSTALLING POP-UP DRAIN

• Remove COLLAR (11) from pop-up assembly and apply

SILICONE CAULK (12) (or equivalent) to underside of
COLLAR (11)

CAUTION: Do not use or any oil base sealant that may damage finish

• Insert DRAIN BODY (17) from underside through sink

DRAIN HOLE (13) & attach to COLLAR (11)

• Align BALL ROD HOLE (17a) toward rear of sink and

firmly tighten FLANGE NUT (16) against FRICTION

WASHER (15), MACK WASHER (14) and sink DRAIN

HOLE (13)

• Remove TAILPIECE (18) from DRAIN BODY (17), apply

thread SEALANT (19) to TAILPIECE (18) threads and
tighten into DRAIN BODY (17)

• Insert STOPPER (20) into COLLAR (11) & rotate off-set

HOOK (20a) to front of sink to accept BALL ROD (21)

• Remove spring CLIP (24) from BALL ROD (21)
• Place CONE WASHERS (23) on both sides of ball rod

BALL (21a) with NUT (22) to backside

• Insert BALL ROD (21) into body BALL ROD HOLE

(17a) and through off-set HOOK (20a)

• Tighten NUT (22), but allow BALL ROD (21) to freely

move up and down

• Place STRAP (23) onto LIFT ROD (8) and tighten

THUMB-SCREW (23a)

•

Place one end of CLIP (24) onto BALL ROD (21), then
STRAP (23), gently squeeze CLIP (24) and slide other

end of CLIP (24) onto BALL ROD (21)

•

Check proper operation of STOPPER (20) and adjust by
sliding STRAP (23) on LIFT ROD (8) as necessary

SUPPLY & WASTE CONNECTIONS

• Connect blue colored FLEX HOSE (5) to cold SUPPLY

VALVE (25) and red colored FLEX HOSE (5) to hot
SUPPLY VALVE (25)

IMPORTANT: Flush supply lines and valves prior to installation to prevent
damage and malfunction of cartridge

• Connect waste P-TRAP (26) to drain TAILPIECE (18)

NOTE: Supply valves and P-Trap are not supplied with faucet. See CAL
TRIM for complete selection of matching products in desired finish

• Turn on cold and hot SUPPLY VALVES (25)
• Slowly open faucet lever by lifting lever and rotate to left

and right

• Check all connections for leaks and repair as necessary
• Give these instructions to consumer for safe keeping

NOTE: Occasionally, due to water conditions it may be necessary to

remove aerator and clean debris off with soft bristle toothbrush
