10 Spare parts
65 KjelFlex K-360 Operation Manual, Version C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
a Boric acid tank
b H
2
O tank
c NaOH tank
d Storage bottle for reagent
e Cooling water valve in
f Boric acid pump
g H
2
O steam generator pump
h NaOH pump
i Reagent pump
j Condenser
k Receiving vessel (Titration set)
l Splash protector
m Sample tube
n Expansion vessel
o Steam generator
p Waste tank

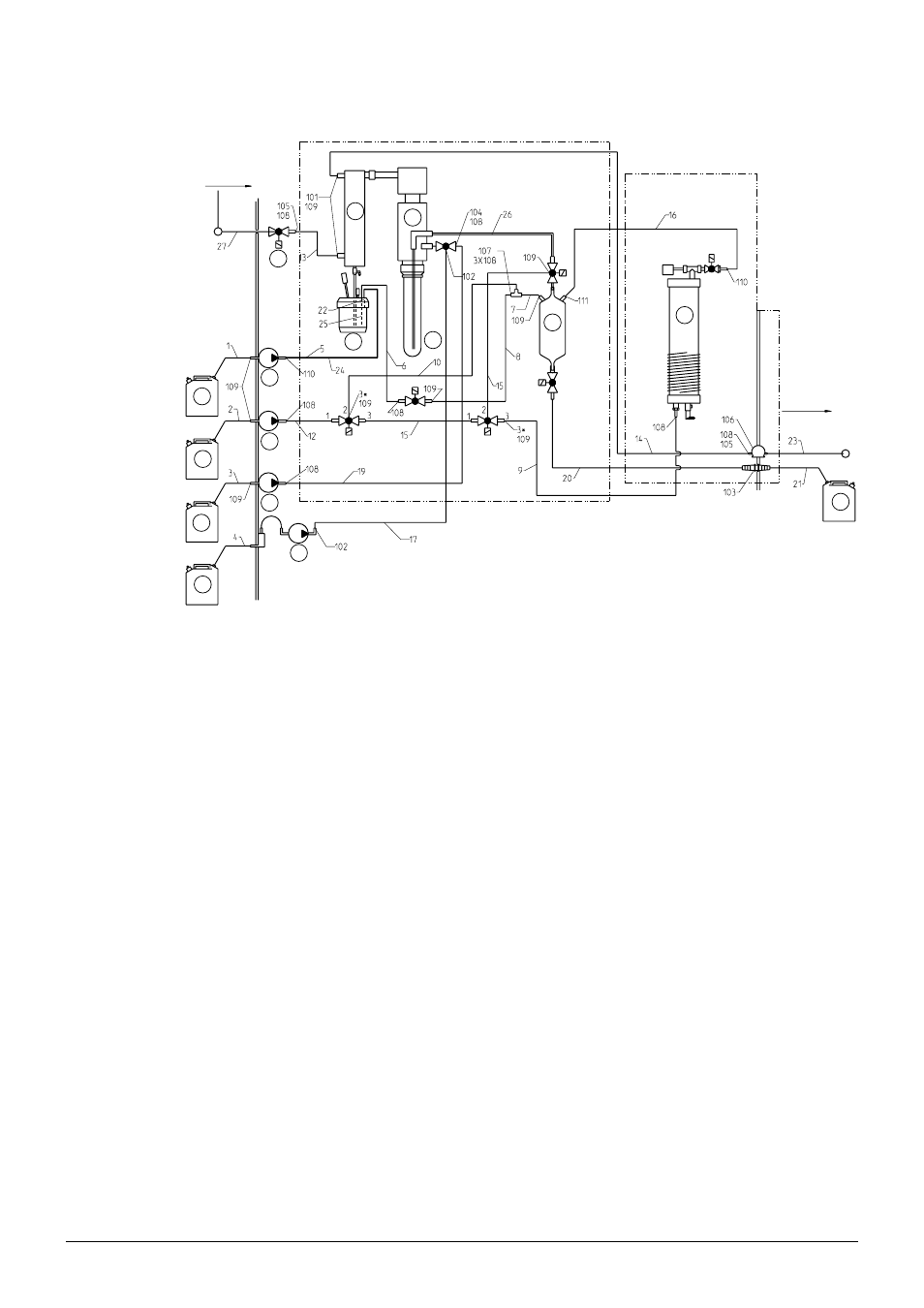

Fig. 10.4: Hosing connection scheme with acid-resistant pump and titration
