4 Description of function
17
B-390
Operation Manual, Version C

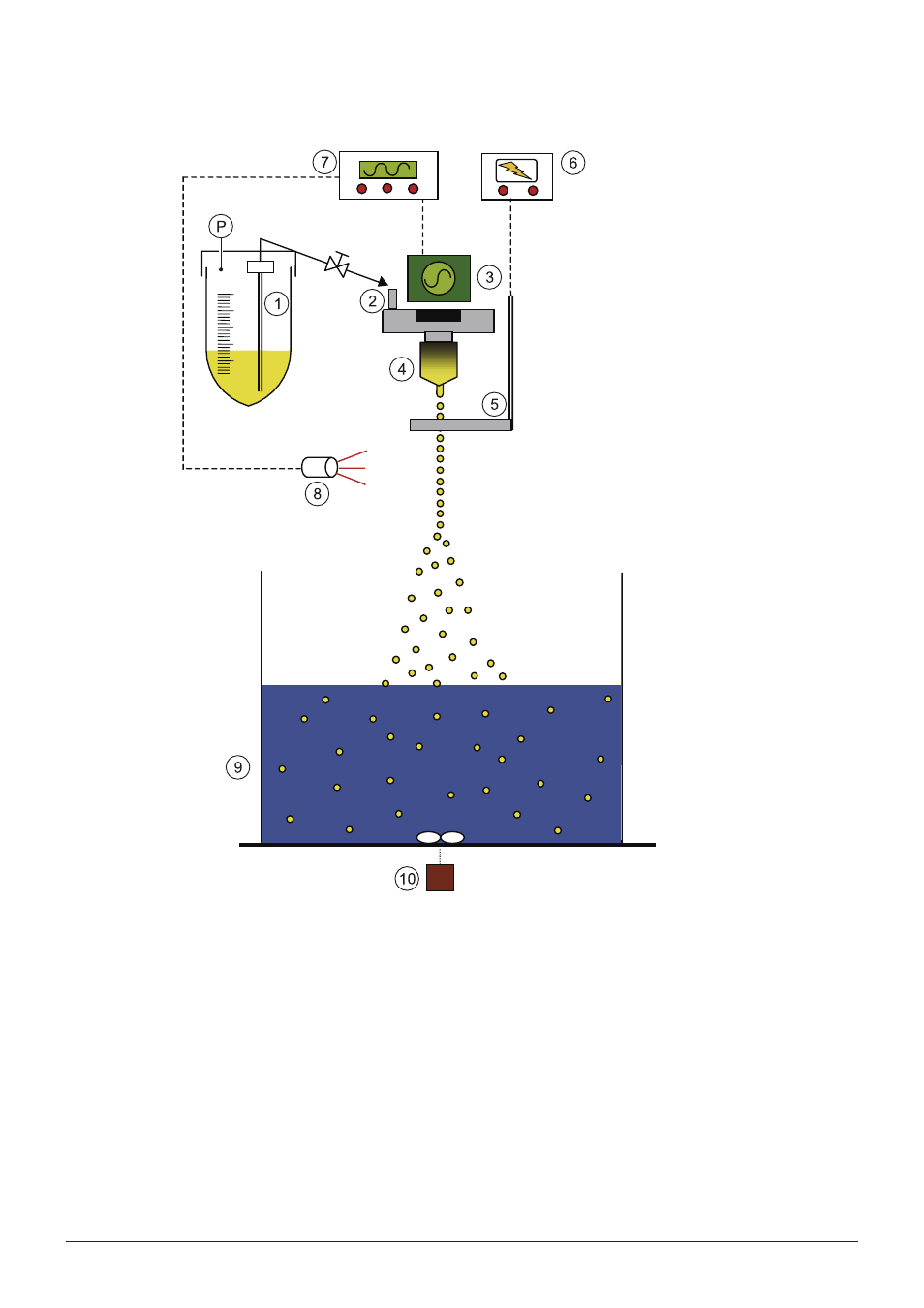

Figure 4-1: Schematic representation of the Encapsulator B-390
a Pressure bottle
Bead producing unit
Vibration unit
Single nozzle
Electrode
Dispersion control
Vibration control
LED/stroboscope
Polymerization bath
Magnetic stirrer
(P) Air pressure
