5 .3 Installing the AutoDest probe
1
To install the AutoDest probe proceed as follows:
• Insert the AutoDest probe into the opening at the top of the condenser.
• Push the probe down between the inner condenser coil and the vacuum tube in the center of the
condenser.

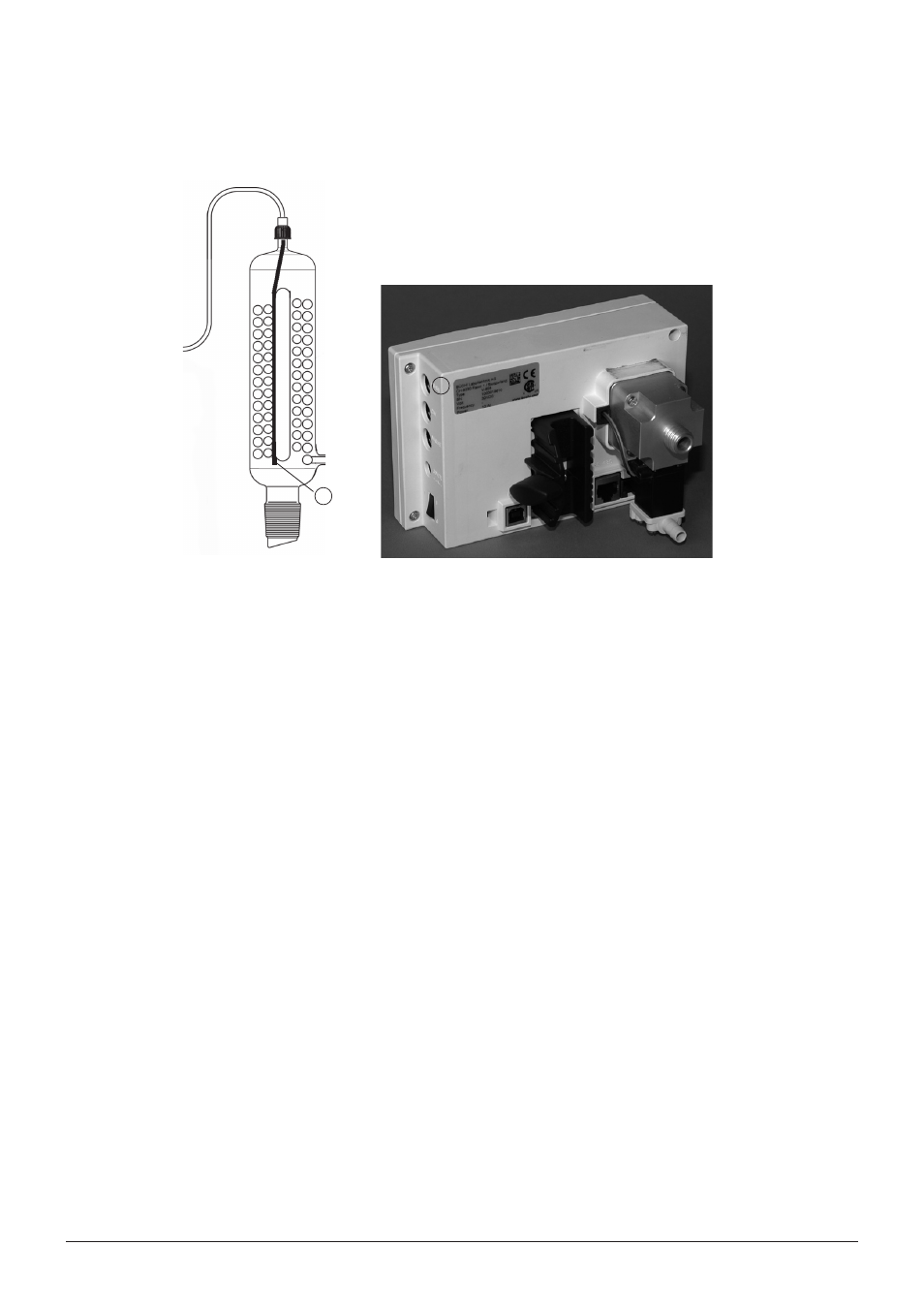

• Position the probe as shown in Fig. 5.3. Make sure that the prope tip position corresponds to posi-
tion a in Fig. 5.3.
• Tightened screw cap at the top of the condenser.
• Plug the cable of the AutoDest probe into the AS/SB socket of the controller (position b in the
figure above).
NOTE:
Calibrate the AutoDest probe, see also chapter 6.7.5.
