Connecting Pro16 Devices
In a simple Pro16 system, the easiest connection method uses what is called a daisy chain. That is, each
A-Net device is connected in series. The first device in the chain receives the A-Net signal from the Pro16
input module. Each successive A-Net compatible device gets its A-Net connection from the A-Net Out jack
of the device preceding it in the chain.
Series Connection of A-Net Devices

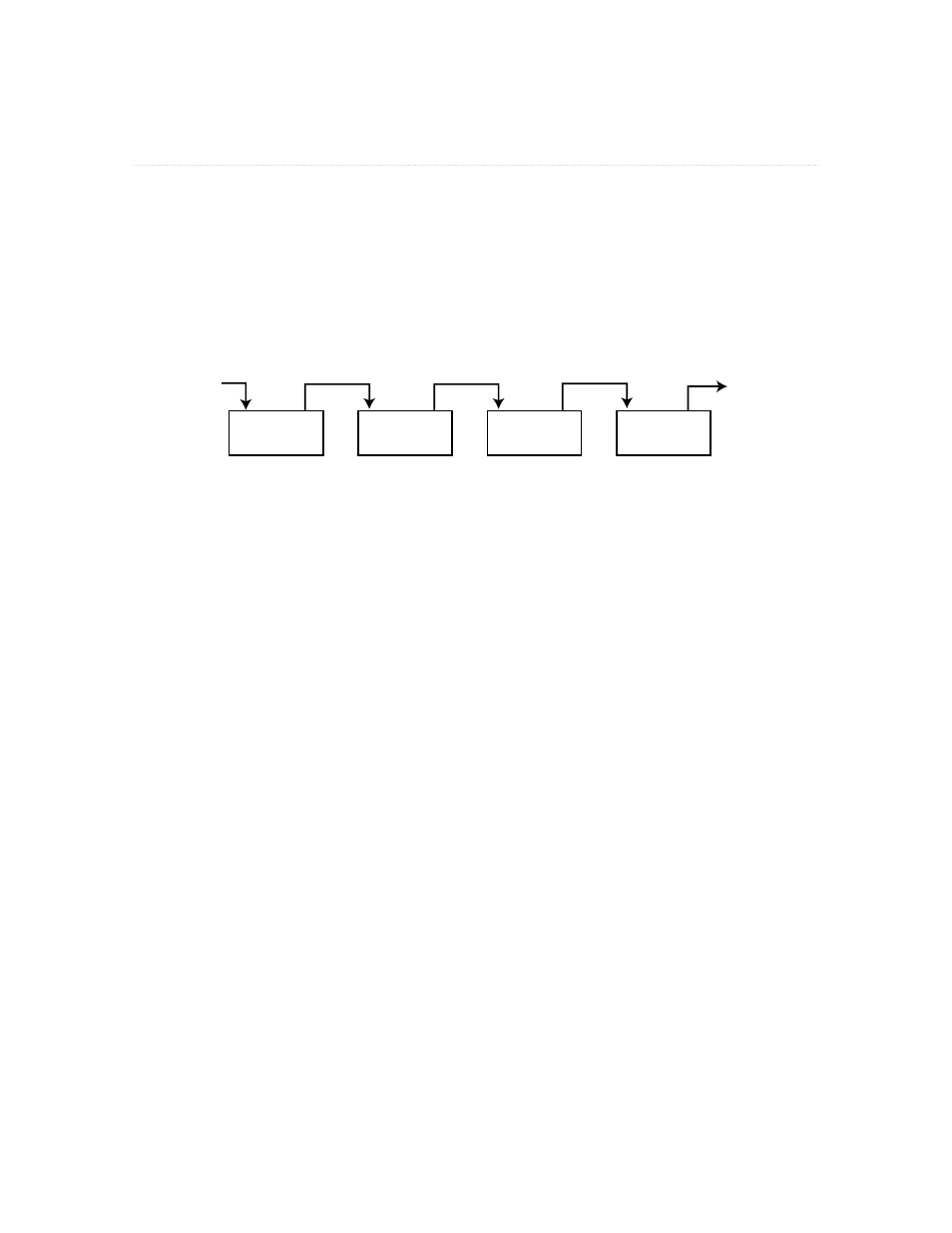

The diagram below illustrates a series connection of A-Net devices.
A-Net
In
Out
A-Net
In
Out
A-Net
In
Out
A-Net
In
Out
In this diagram, A-Net is connected from device to device using Cat-5e cable. The A-Net Out port on the first device
connects to the A-Net In port on the next, and so on.
There is one drawback to this connection method, however. If one A-Net device in the chain is disconnected
from the A-Net signal chain, all units beyond this point will not get any audio until the unit is reconnected
to a valid A-Net source.
A parallel A-Net connection solves that problem. By using an optional A-Net Distributor, parallel A-Net
connections are possible. In fact, any combination of series and parallel connections can be used to solve
even the most complex audio routing problems.
