Setting Channel Volume
When you change the volume of a channel on the Personal Mixer, the LEDs in the Volume section of the
mixer surface will indicate the level in real time. When a new channel is selected, its current volume is
instantly indicated on the LEDs. When no LEDs are lit, channel volume is at its minimum setting.

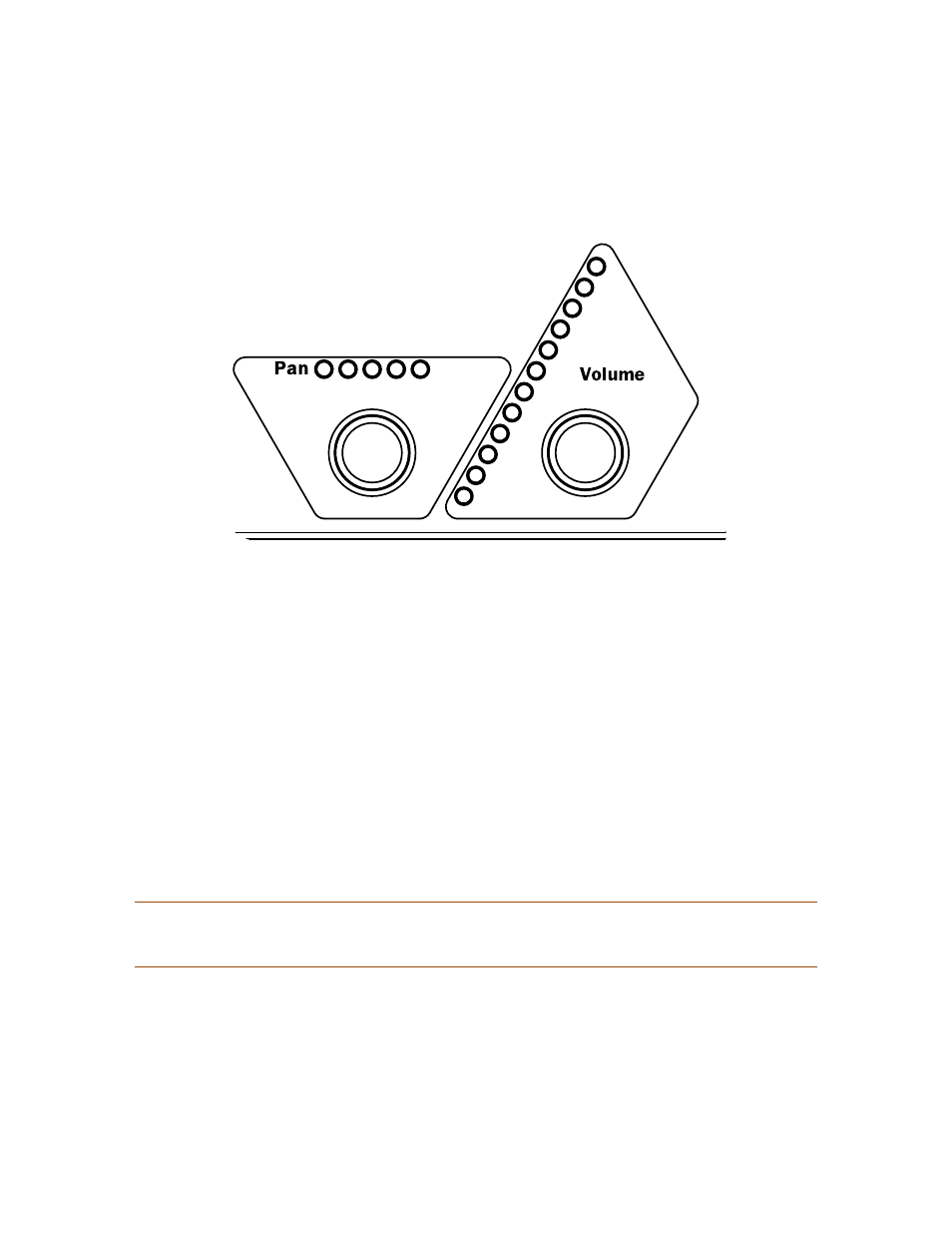

The Pan and Volume Controls for the selected channel
To make changes to a channel:
Select a channel by pressing its numbered button—the button’s upper LED will light.
•
Rotate the
•
V
OluMe
knob to the right to increase the volume, to the left to lower the volume
Setting Pan
The Pan indicator is made up of five LEDs. The center LED is green. The LEDs on either side of center are
red. As you turn the p
aN
knob, the LEDs will light in various combinations. At either end of the display only
one LED will be lit to indicate that the channel is panned full left or right.
When using stereo linked channels, the LEDs light in different patterns, using a pair of LEDs on either side
of the display to indicate the width of the stereo field. When the stereo image has been collapsed to mono,
only the center green LED will be lit. In this case the stereo input will be heard as mono.
P
N
Ote
:
If you have connected the output of the Personal Mixer to a mono audio system or speaker,
the pan position is irrelevant.
Continue this process of setting volume and pan until all the channels have been added to the mix.
At this point you should have a basic mix playing in your headphones, IEM, speakers, etc. You can continue
to make changes in real time as your needs require. Remember that changes to channel volume and pan
setting affect the selected channel only. The selected channel always has its red LED lit.
