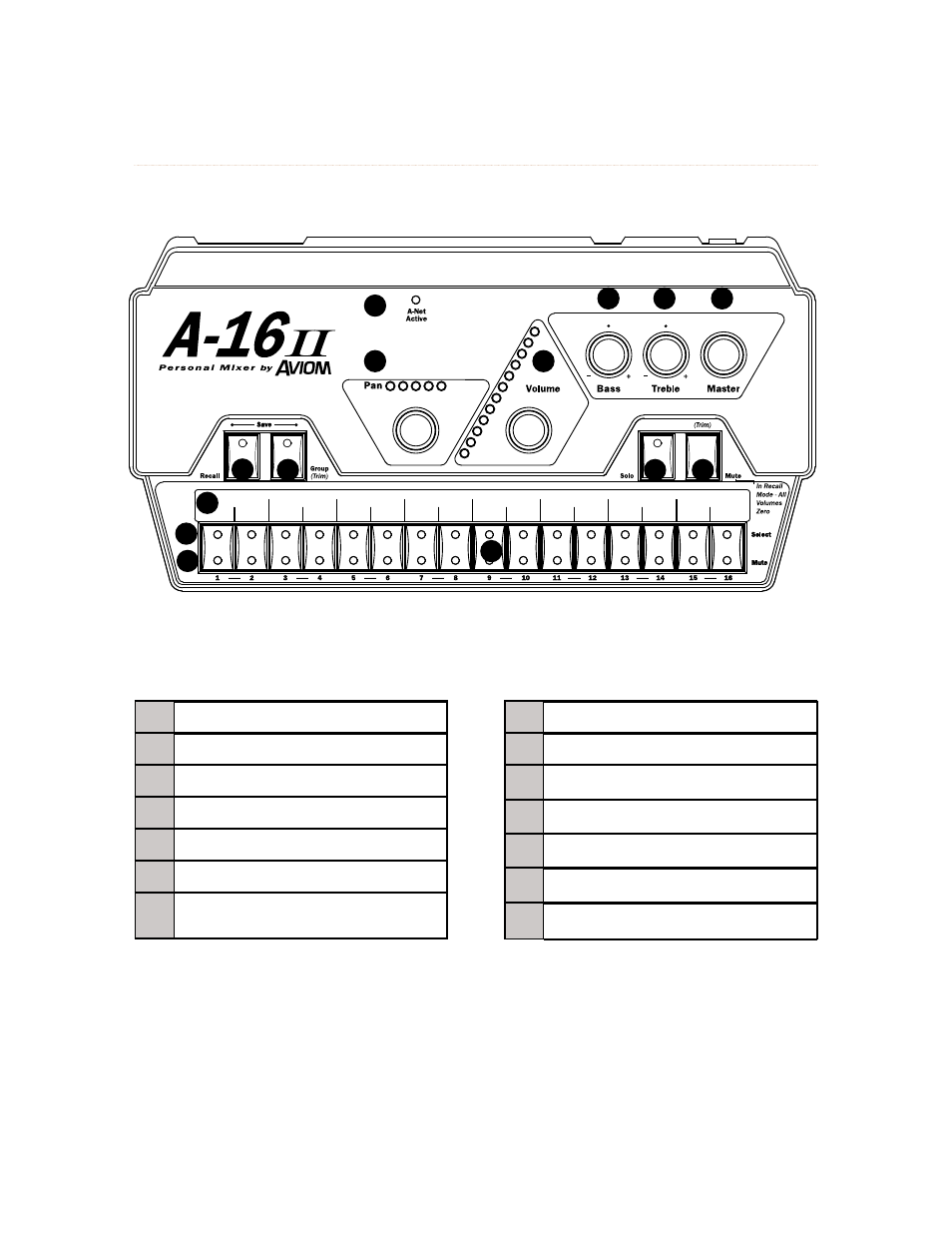

A-16II Personal Mixer Front Panel Components
1
A-Net Active LED
2
Channel Pan control and LEDs
3
Channel Volume control and LEDs
4
Bass tone control
5
Treble tone control
6
Master volume control
7
Recall button (for Save, hold R
ecall
and
G
Roup
)
8
Group button
9
Solo button
10
Mute button
11
Label strip
12
Channel select LED
13
Channel Mute LED
14
Channel select button
