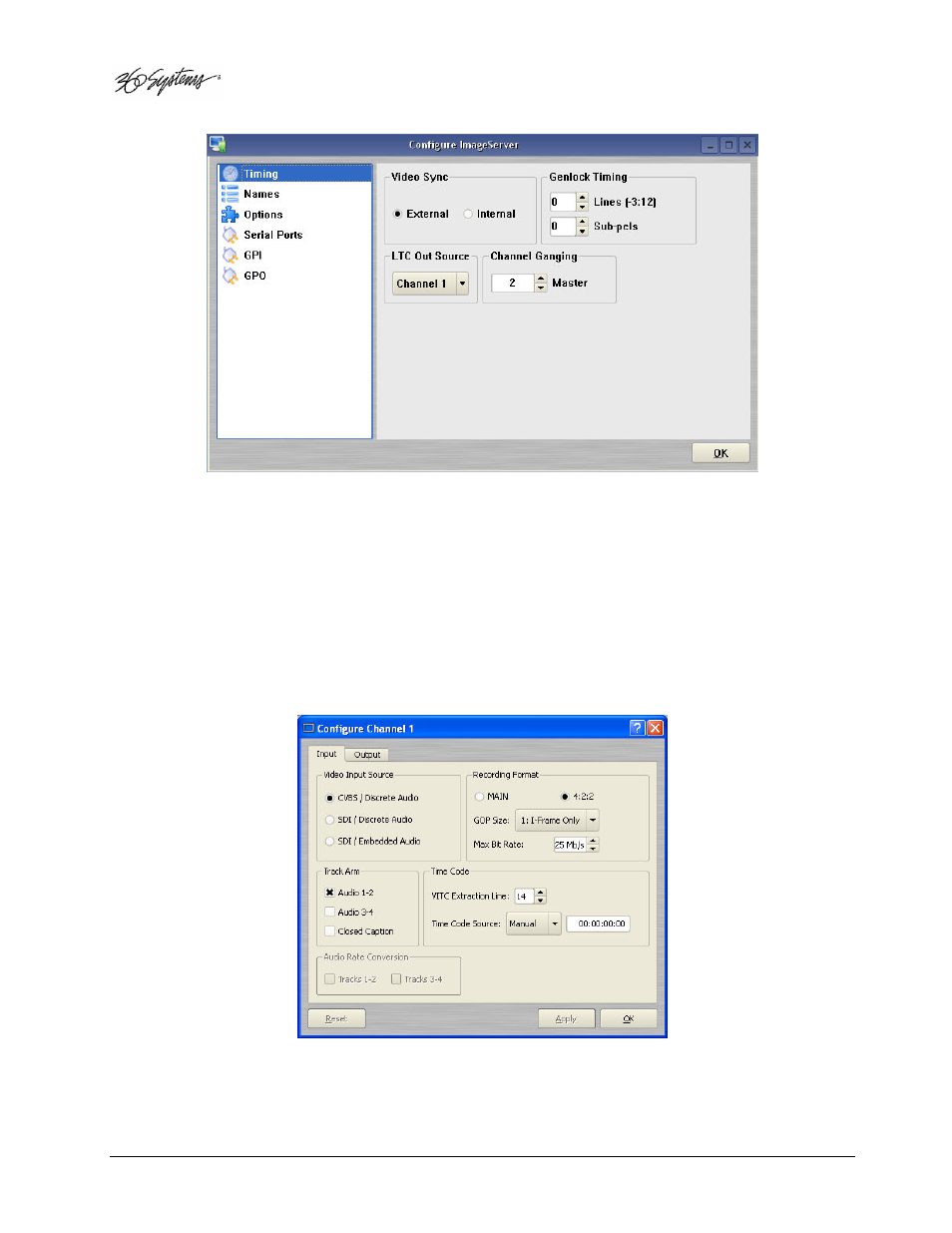

Figure 5 - Timing Configuration Screen
Setting the Video Input Source
The MAXX can accept a video signal at either its composite video input (CVBS), or its serial digital
(SDI) input. Verify that the input to be used is currently active. For a discussion of the SDI –
Embedded Audio option, refer to Configuring Embedded Audio on Page 69.
Select OPTIONS->CONFIGURE from the Channel 1 Transport Window.
The Dialog of Figure 6 appears. Select the appropriate Video Input source by clicking the related
radio button in the Video Input Source section of the dialog. Click APPLY or OK.
Figure 6 - Channel Configure Dialog
