MAXX Owner’s Manual
Determining the Condition of the RAID Array

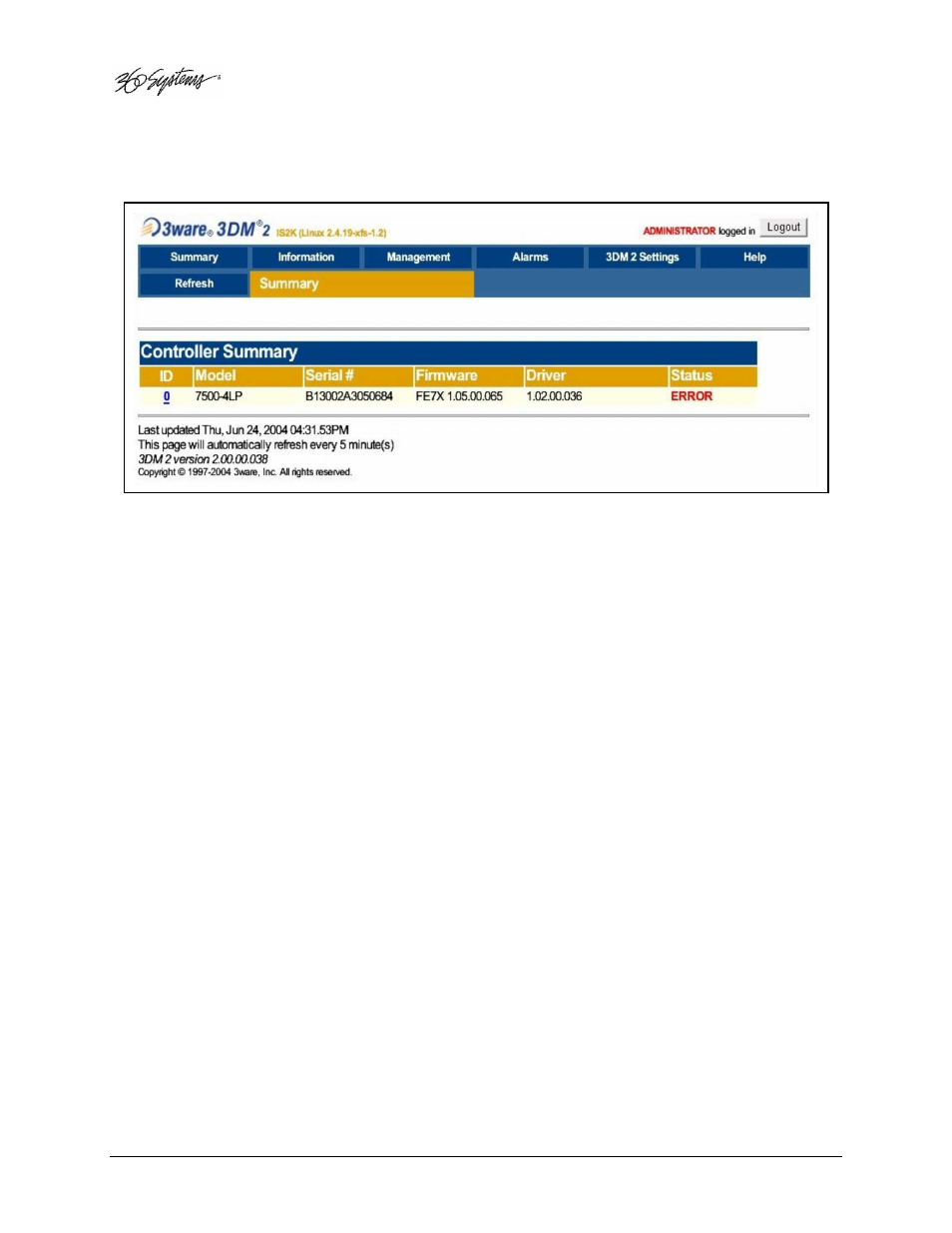

Figure 23: Report of RAID Array Condition
To replace a failed drive in the RAID control utility, perform the following steps. The above
drawing should appear.
• Login as ADMINISTRATOR.
• Note the ERROR STATUS on this Summary Screen.
• If an error condition is indicated continue to next page.
