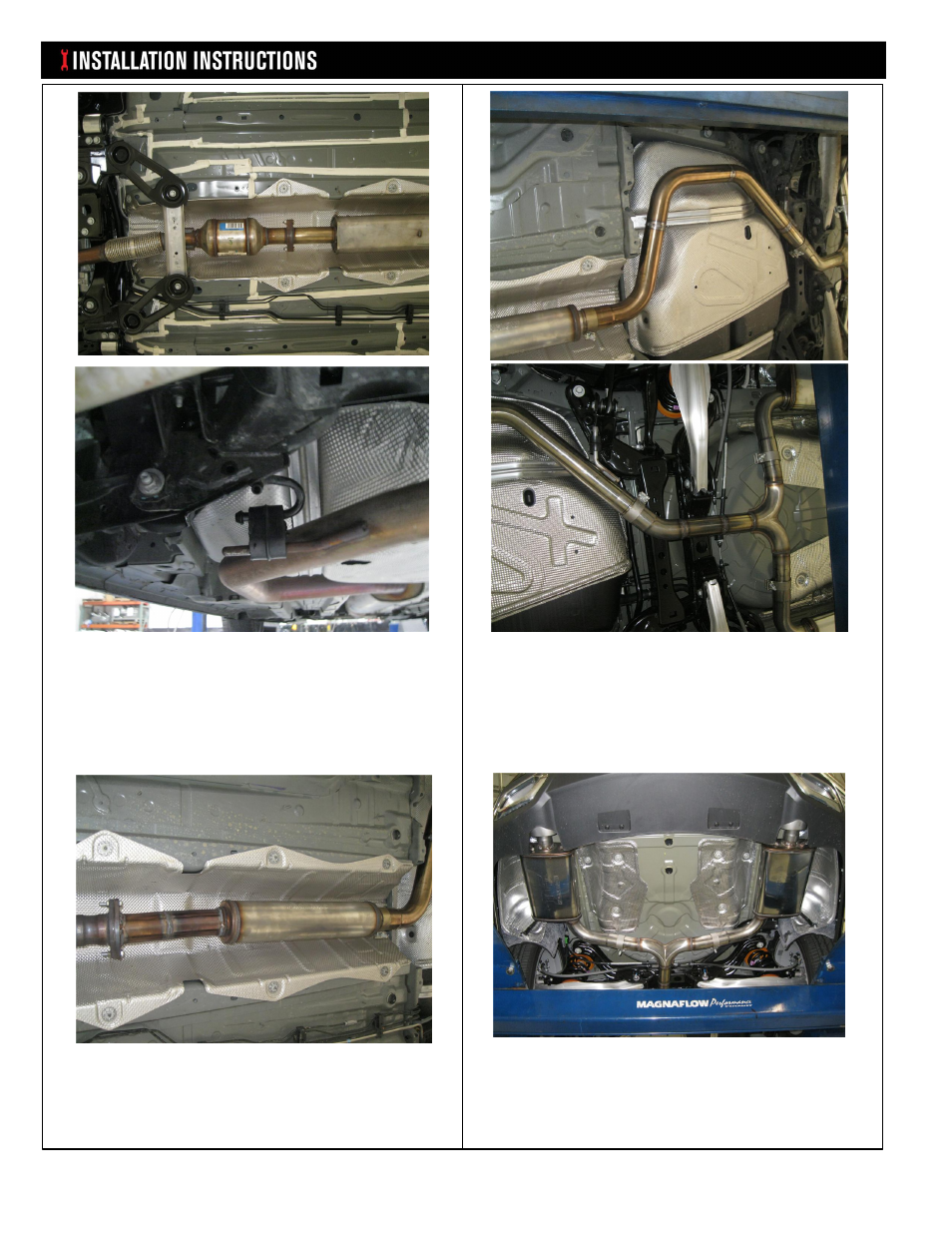

Step 1. To remove the OEM exhaust system, you
will first need to unbolt the resonator from the
catalytic converter and disengage all welded
hangers from the rubber insulators. Do not damage
or discard the rubber insulators, as they will be
reused to mount the new system. You can now
remove the exhaust from the vehicle
.
Step 2. To begin, fasten the Resonator Assembly
inlet to the catalytic converter using the provided
fasteners and gasket (Leave all clamps and
fasteners loose for final adjustment of the complete
system.)
Step 4. Finish by installing the Muffler Assemblies
to the Y-Pipe Assembly using the supplied 2.50"
clamps, and fitting the welded hangers into the
rubber insulators.
Step 3. Next Install the Extension Pipe Assembly
to the outlet of the Resonator Assembly using a
supplied 2.50" clamp, then the Y-Pipe Assembly to
the Extension Pipe Assembly again using a supplied
2.50" clamp. Fit the welded hangers into the rubber
insulators.
