Carrier 58PHA/PHX - Manual (Page 26)

26
See notes 2,5,7, and 10 on the page following these figures.
A04215

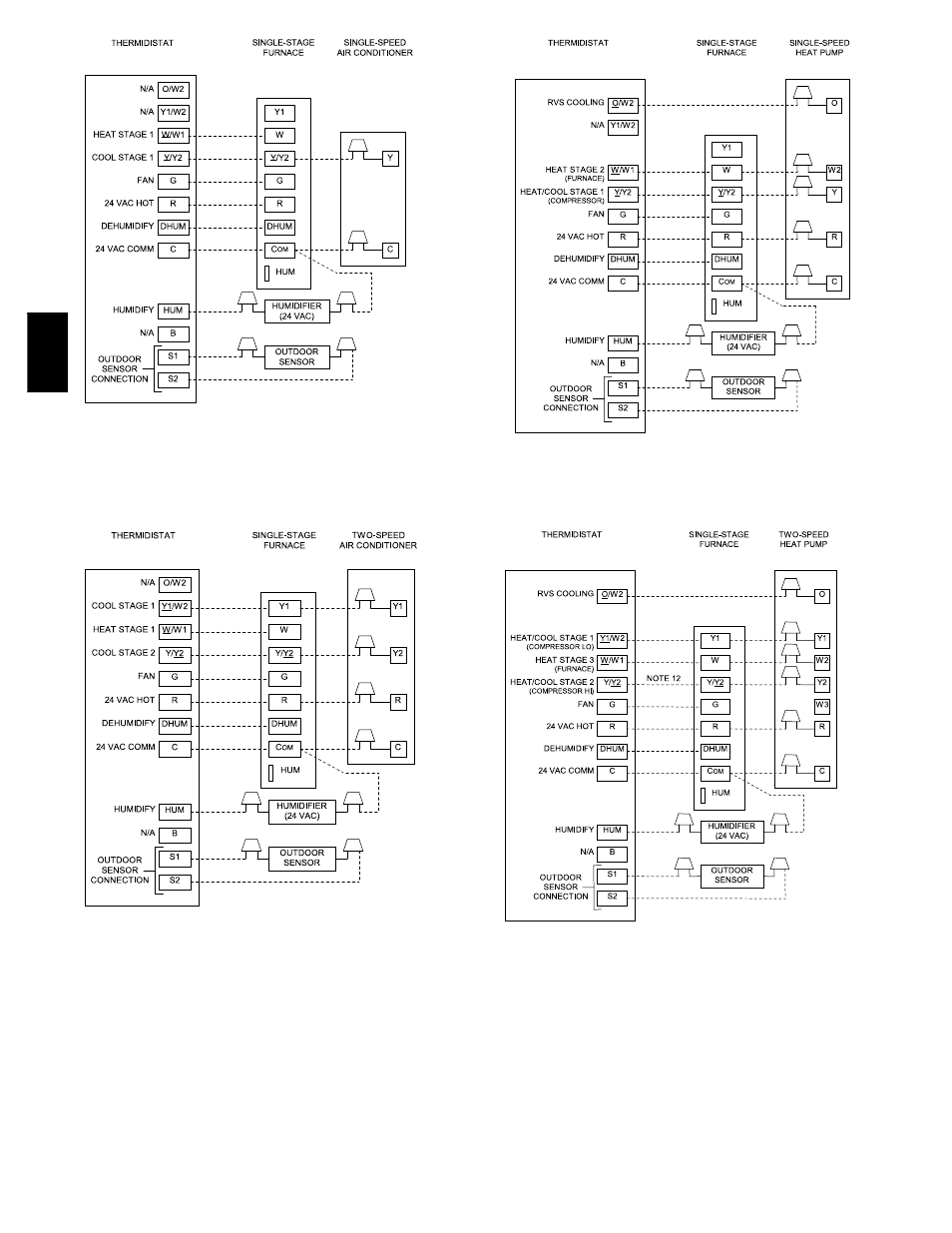

Fig. 26 -- Single--Stage Furnace with Single--Speed Air Con-
ditioner
See notes 2,5,8, and 10 on the page following these figures.
A04216
Fig. 27 -- Single Stage Furnace with Two--Speed Air Condi-
tioner
See notes 1, 2, 4, 6, 7, 9, 10 and 12 on the
page following these figures.
A04217
Fig. 28 -- Single--Stage Furnace with Single--Speed Heat
Pump (Dual Fuel)
See notes 1, 2, 3, 4, 6, 8, 9, 10 and 12 on the
page following these figures.
A04218
Fig. 29 -- Single--Stage Furnace with Two--Speed heat Pump
(Dual Fuel)
58PH
A
