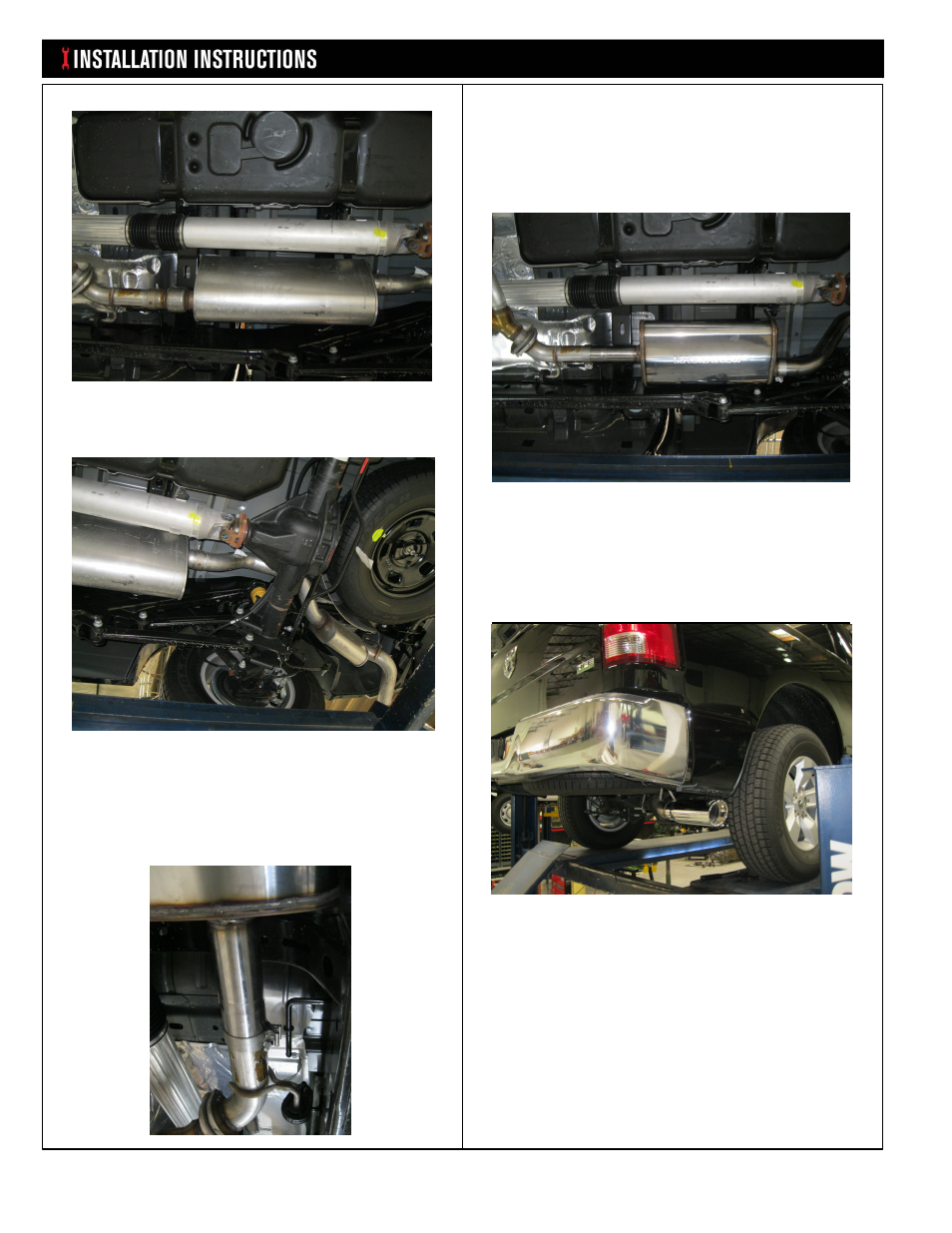

Step 1. Begin removing the OEM exhaust by
unbolting the muffler assembly rearward of the flange
coupling.
Step 2. Next unbolt the OEM clamp attaching the tail
pipe assembly to the muffler assembly. Remove the
welded hangers from the rubber insulators using a pry
bar. Do not discard or damage the insulators as they
will be needed to install your new system. The OEM
system may now be removed.
Step 3. You are now ready to install your new
MAGNAFLOW system. Loosely attach the the Muffler
Assembly to the OEM pipe outlet using the supplied
3.00" clamp. Engage the welded hanger to the OEM
rubber insulator. Leave all clamps and hardware loose
for final adjustment of the complete system.
Step 4. Slip the inlet of the Tail Pipe Assembly over
the outlet of the Muffler Pipe Assembly and loosely
secure using the supplied 3.00" clamp and 15mm
socket. Engage all welded hangers to the OEM rubber
insulators.
031
029
106
099
Step 5. Once a final position has been chosen for the
new system, evenly tighten all fasteners from front to
rear using the torque specifications on page one of this
document. Inspect all fasteners after 25-50 miles of
operation and retighten if necessary.
