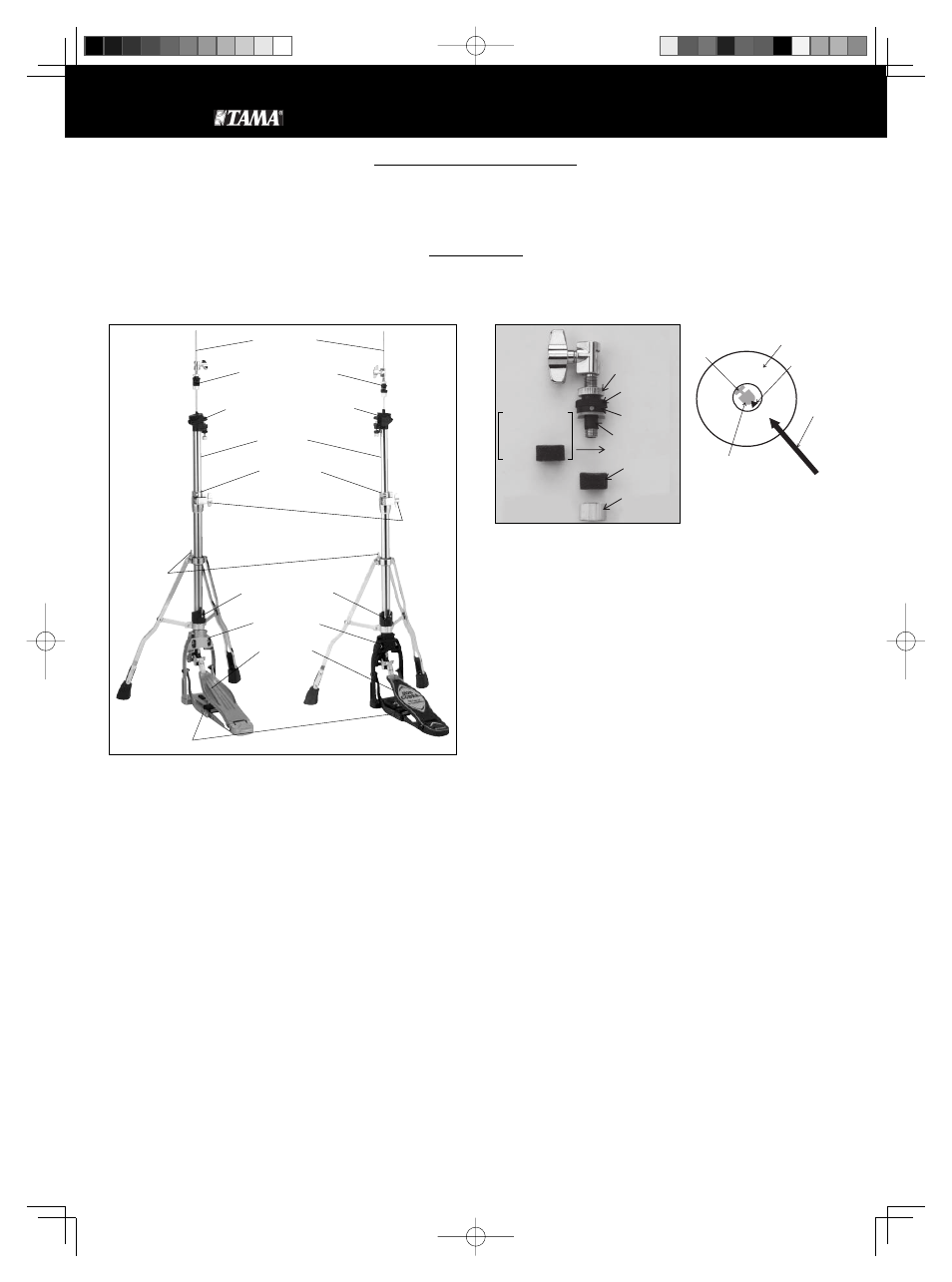

TAMA Iron Cobra/Speed Cobra Hi-hat Stand User Manual
Iron cobra / speed cobra hi-hat stand, Instruction manual, Assembly

6. Attach the top cymbal of the hi-hat to the clutch. First, remove
the lower nut and the felt washer from the clutch (Photo 2), and
then mount the cymbal, the felt washer and the nut. Make sure
that the lower nut is fi rmly tightened.
The Swing-lock clutch allows the top cymbal of the hi-hat to swing
naturally due to the two projections on the underside of the adjusting nut.
To adjust the tightness of the cymbal on the clutch, follow the
procedure described below.
6-1. Turn the locknut counterclockwise to loosen it.
6-2.
While checking the tightness of the cymbal, tighten the
adjusting nut at the desired position.
Before tightening the locknut, check the positions of the
position mark on the adjusting nut and the T-nut.
6-3.
In order for the cymbal to swing more naturally, the
position mark on the adjusting nut should face the tip of the
drumstick, as shown in fi g. 3. Also, make sure that the T-nut
will not interfere with playing the hi-hat cymbal.
6-4.
Tighten the locknut, then the T-nut of the clutch to secure
the pull rod at the desired position.
*1: If you prefer the sound and feeling of the top cymbal held
with two felt washers, use the accessory felt washer on the
underside of the adjusting nut. When two felt washers are used,
it is not necessary to check the direction of the position mark.
The protection sleeve can be replaced when it becomes worn
or stripped. To avoid damage to the cymbal, periodically check
the condition of the sleeve.
IRON COBRA / SPEED COBRA HI-HAT STAND
1. Loosen the T-nut to remove the hi-hat clutch from the upper
tube, and then pull the pull rod out of the tube.
2. Loosen the T-bolt
2, extend the two legs outward, and
stand the bottom section on the fl oor. Make sure the stand is
perpendicular to the fl oor, and then tighten the T-bolt
2.
3. Screw the pull rod into the hex nut on top of the bottom section.
The rod should be secured to prevent it from becoming loose
while playing.
4. Fit the upper tube over the pull rod and into the lower tube,
adjust to the desired height, and then fasten the T-nut
1 and the
square-headed bolt of the memory lock.
5. Set the bottom cymbal of the hi-hat (generally the thicker one)
on the felt of the cymbal seat.
Assembly/
Photo 1
1
Photo 2
2
Upper pull rod
Upper tube
Cymbal seat (Spring seat)
T-nut
1
1
Footboard
Tension adjuster
Hi-hat clutch
(Swing-lock clutch)
Memory lock
T-bolt
2
2
Stabilizer
Base frame
INSTRUCTION MANUAL
Please read through this instruction manual before starting to use your TAMA Hi-Hat Stand.
Thank you for your purchase of this TAMA Hi-Hat Stand. To ensure safe and effi cient use of this product, please read through this manual
before beginning assembly. Store this manual in a convenient place for future reference.
Fig.3
Hi-hat cymbal (top)
(top)
Drum stick
Position mark
Hi-Hat Clutch
T-Nut
Lock nut
Adjusting nut
Position mark
Felt washer (accessory)
Protection sleeve
*1
Felt washer
Lower nut
