TAMA HH205 Iron Cobra 200 Hi-hat Stand - Manual

6. Attach the top cymbal of the hi-hat to the clutch. First, remove
the lower nut and the felt washer from the clutch (Photo 3), and
then mount the cymbal, the felt washer and the nut. Make sure
that the lower nut is fi rmly tightened.
To adjust the tightness of the cymbal on the clutch, use the
adjusting nut above the cymbal. Once you reach the desired
tightness, tighten the lock nut, then the T-bolt of the clutch to
secure the pull rod at the desired position.
The general setup is one where there is a gap of around 1 inch
between the top and bottom cymbals when the footboard is in
raised position.
The protection sleeve (SLC085) can be replaced when it
becomes worn or stripped. To avoid damage to the cymbal,
periodically check the condition of the sleeve.
IRON COBRA HI-HAT STAND HH205
1. Loosen the T-bolt of hi-hat clutch to remove that from the upper
pull rod, and then pull the pull rod out of the tube.
2. Loosen the T-bolt 2, open the tripod to stand the bottom
section upright, and then tighten the T-bolt 2. Insert the radius
rod into the hole in the frame.
3. Screw the pull rod into the hex nut on top of the bottom
section (Photo 2). The rod should be secured to prevent it from
becoming loose while playing.
4. Fit the upper tube over the pull rod and into the lower tube,
adjust to the desired height, and then fasten the T-bolt 1 and
the square-headed bolt of the memory lock.
5. Set the bottom cymbal of the hi-hat (generally the thicker one)
on the felt of the cymbal seat.
Assembly/
INSTRUCTION MANUAL
Please read through this instruction manual before starting to use your TAMA Hi-Hat Stand.
Thank you for your purchase of this TAMA IRON COBRA Hi-Hat Stand. To ensure safe and effi cient use of this product, please read through
this manual before beginning assembly. Store this manual in a convenient place for future reference.

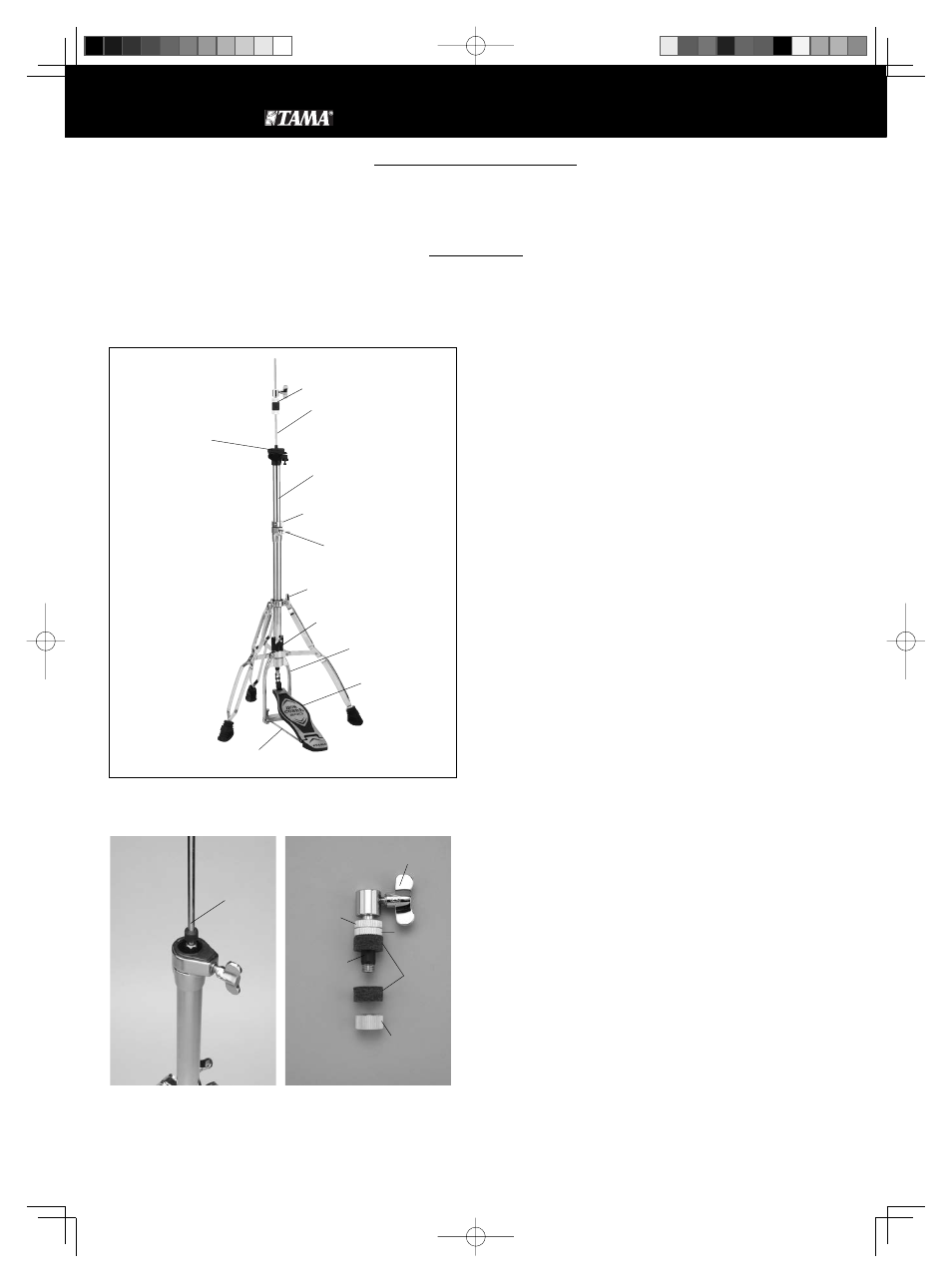

Hi-hat clutch
T-Bolt 1
1
Radius rod
Upper pull rod
Upper tube
Memory lock
T-Bolt 2
2
Tension adjuster
Frame
Footboard
Bottom cymbal seat
Photo 1
Upper pull rod
Lock nut
Hi-hat Clutch
Adjusting nut
T-bolt
Felt washers
Protection sleeve
(SLC085)
Lower nut
Photo 2 Photo 3
