Assembly of 45° SOL 25 Plus Mounting Systems
5.2 45° Industrial Mounting System for SOL 25 Plus (Vertical/Portrait Installation)

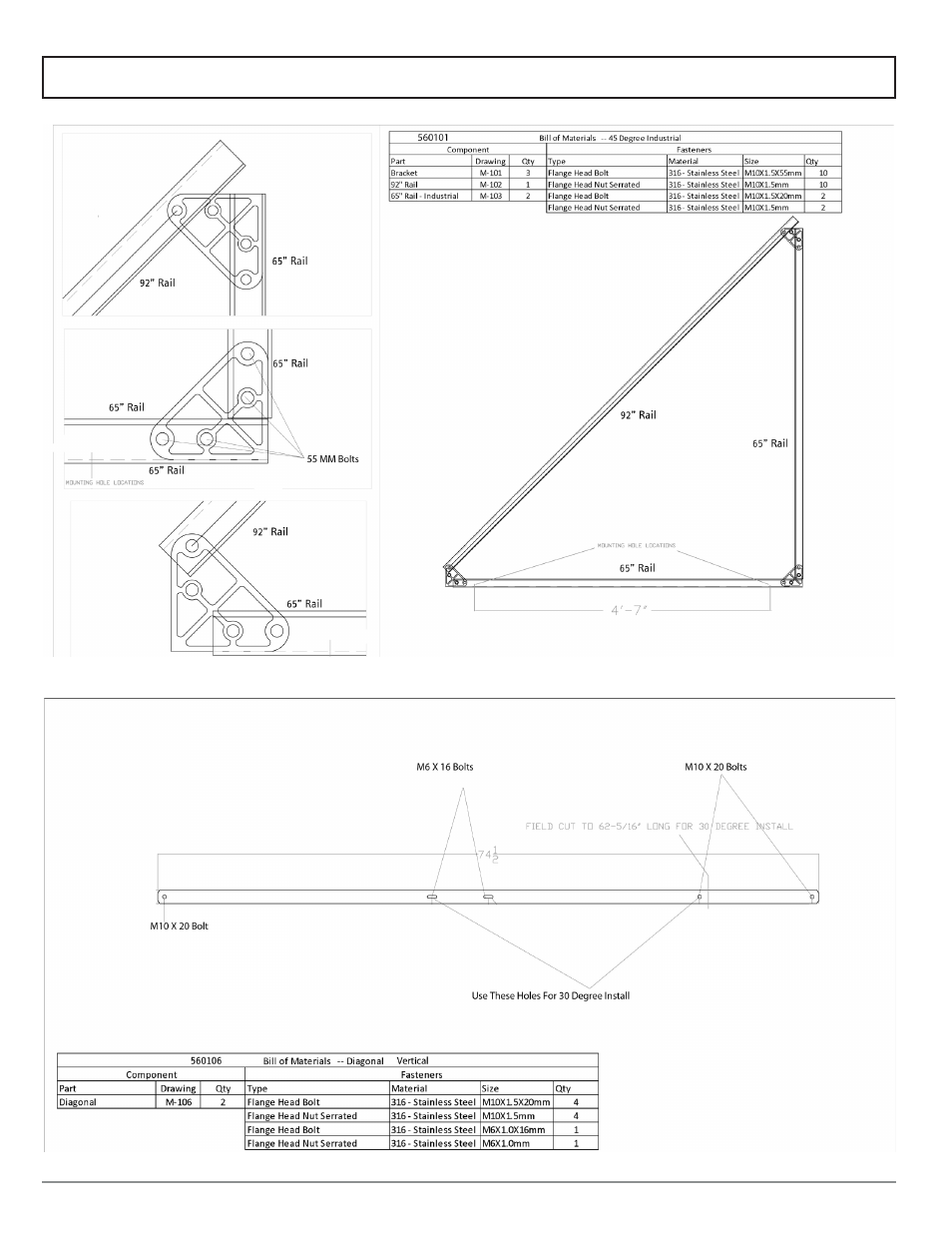

Figure 5.2.1: 45° Verticle Mounting Kit (Part # 560101) Componenet Listing and Assembly Example
Figure 5.2.2: SOL 25 Plus Cross Braces
