• This unit can be connected to an optional CD changer {CX-DP600EUC or CX-DP1200EUC). For details

consult your nearest Panasonic dealers,

• For connection to a CD changer, refer to the operating instructions of the CD Changer (CX-DP600EUC or

CX-DP1200EUC).

• Fader Control does not affect the output of the amplifier connected to this unit’s preout cord.

Installation Guide

continued

Caution:

• To prevent damage to the unit, be sure to follow the connection diagram below.
• Be sure to connect the ground lead (black) to the car chassis first before connecting the other leads to the speci

fied wires of the car.

• Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and

keep cable terminals free from touching any metal parts.

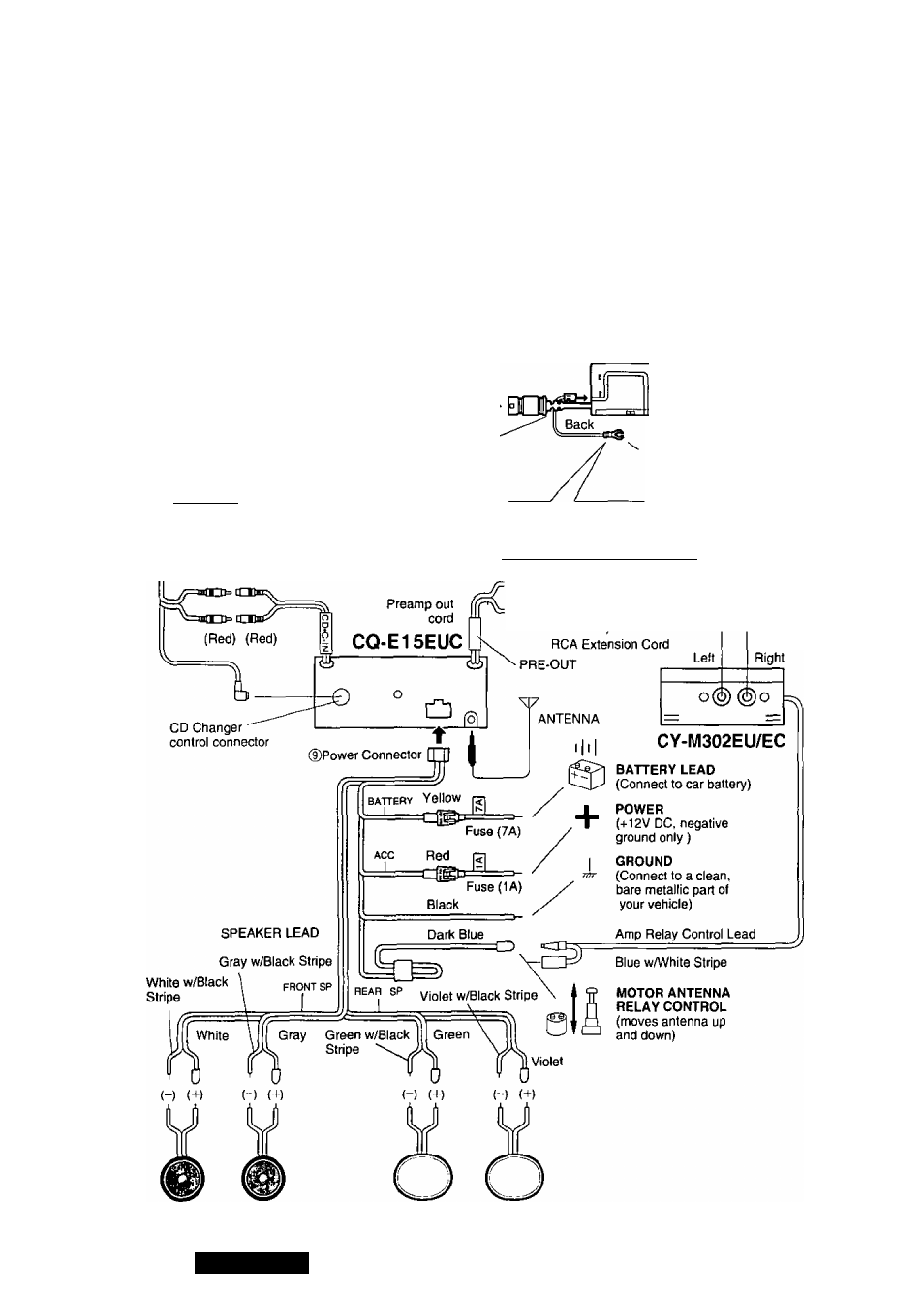

Extension Cord (DIN/BATT/RCA)

Insert the ground lead into

the notch of the chassis.

(Yellow)

—■::::::MBATTEnY|=|ZR^ht=’

Fuse (3A) Battery Cord

To a constant power supply

(White) (White)

CX-DP600EUC

Ground lead
(To a clean, bare metallic

part of your vehicle.)

Be sure to connect to a well grounded metallic
part ot your car because noises or troubles
may occur.

White

iBtO] <

Gray

Red

Red /

Red

LEFT SPEAKER RIGHT SPEAKER

(FRONT)

CQ-E15EUC

LEFT SPEAKER RIGHT SPEAKER

(REAR)
