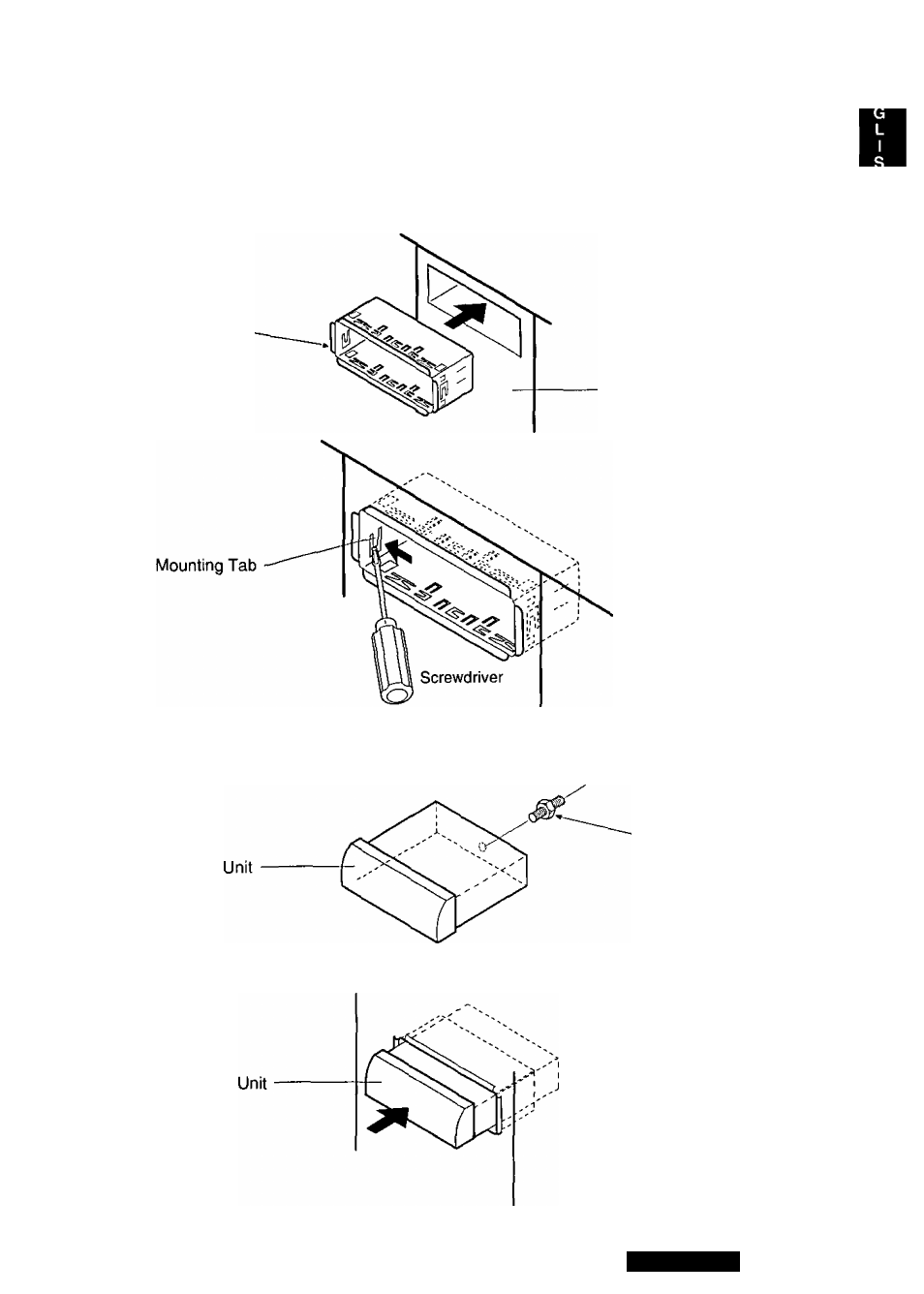

1. Secure the Mounting Collar ®.

Insert Mounting Collar© into the car’s dashboard, and bend mounting tabs out with a screwdriver.

□ Installation Procedures

(D Mounting Collar

Dashboard

2. Secure the rear of the unit.

a) Check the electrical connection by referring to this operating instructions.

b) Connect the Mounting Bolt

CD,

using a suitable wrench.

(8) Mounting Bolt

c) Insert the unit into Mounting Collar ® and push it in until “click” is heard.

d) Secure the rear of the unit to the car by either of the two recommended methods on the next page.

CQ-E15EUC
