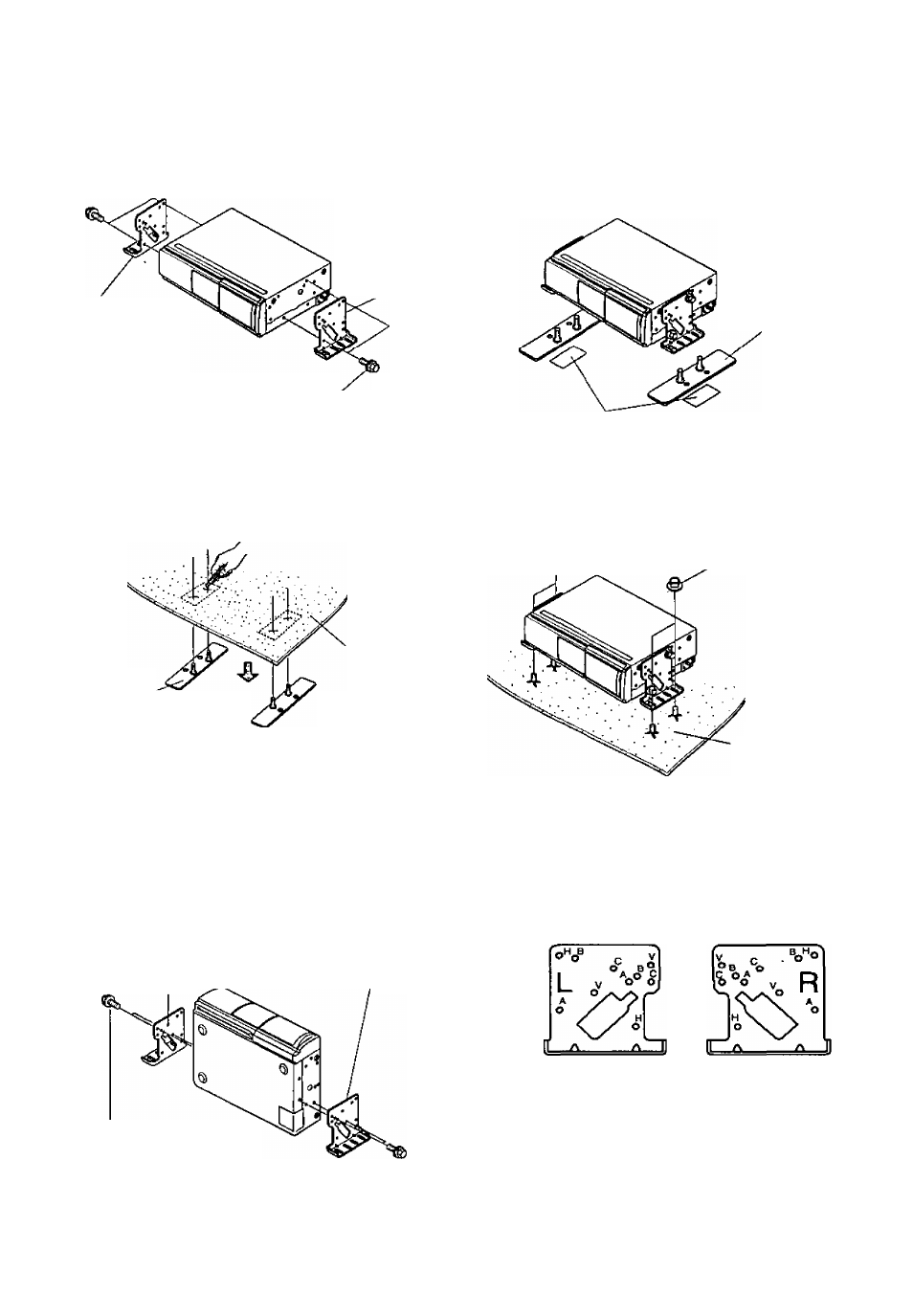

Typical horizontal installation
Mount a mounting bracket (L) or (R) on ei­
ther side of the main unit with a hex. bolt to­
gether with double washers (M4 x 8).
Mounting
bracket (R)
Mounting
bracket(L)
® Hex. boit with double
washers (M4 x 8)
2 Select a location where the unit should be
mounted. Fix the base brackets with a dou­
ble-faced adhesive tape.
0 Base
bracket x 2
0 Double-faced adhesive tape x 2
Use a cutter to cut a small cross in the car­
pet in accordance with the locations of the
MS bolts of the base brackets.
Carpet
4 Mount the unit on the carpet with four hex.
nuts (MS).
® Hex. nut (MS) X 4
0 Base bracket x 2
Fix both the base brackets and the double-faced
adhesive tape to a mounting surface below the
carpet.
Carpet
Typical vertical installation
Mount the unit with the mounting bracket on ei­
ther side with a hex. bolt with double washers (M4
x 8 ).
® Mounting bracket (L)
© Mounting
bracket (R)
© Hex. bolt with double
washers (M4 x 8).
Relationship between
mounting holes and angles
Mounting bracket (L) Mounting bracket (R)
The relationship between mounting holes and an­
gles of the mounting brackets (L and R) is illustrat­
ed above. Symbols corresponding to the mount­
ing angles are marked near the respective holes.
Select the correct holes in accordance with the
mounting angles to be used.
17
