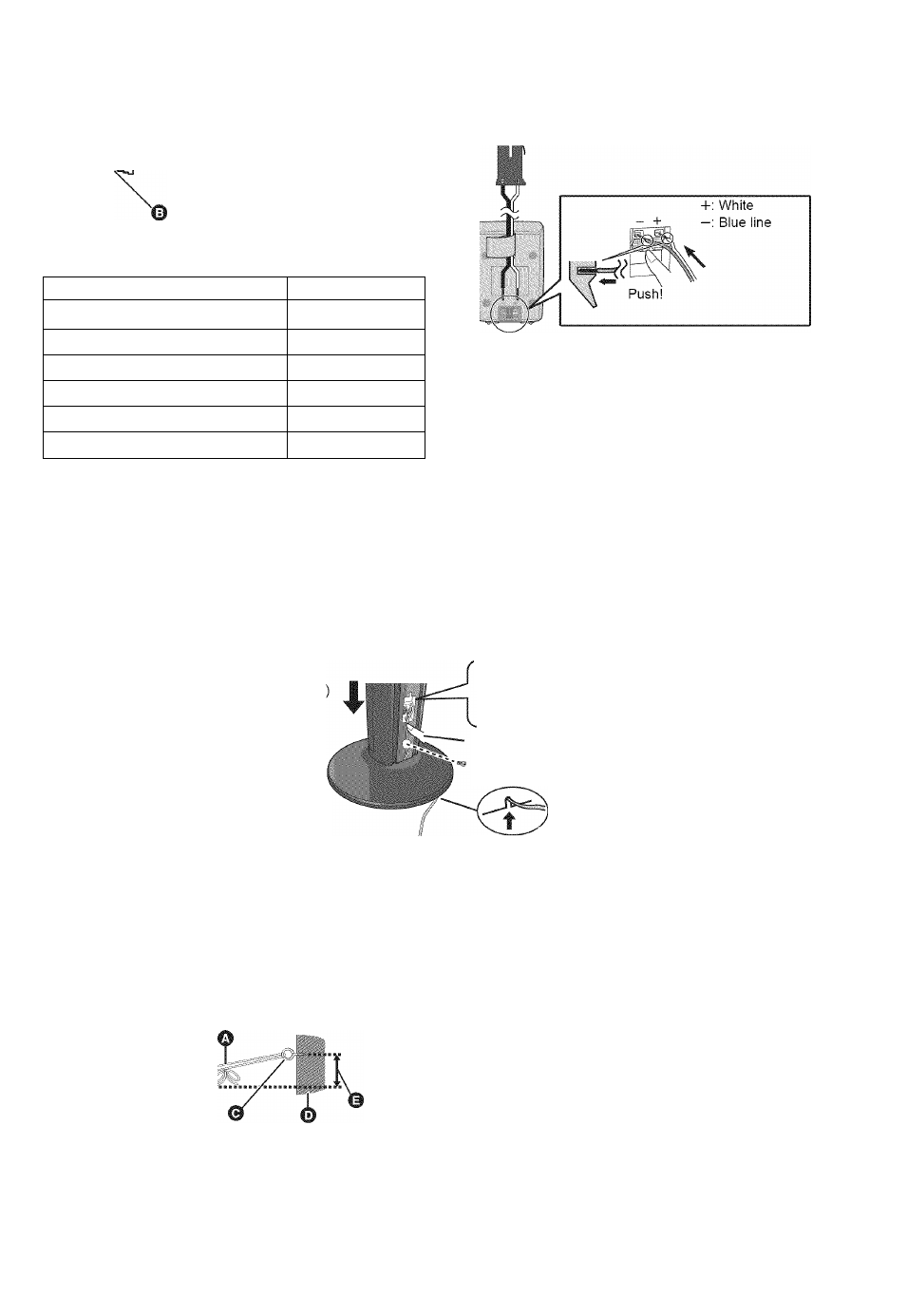

Use of the speaker cable stickers is
convenient when making cable connections,
e.g. Front speaker (L)
I Connecting the speaker cables. Insert the wire fully,
' taking care not to insert beyond the wire insulation.
e.g. Surround speaker
O Speaker cable sticker (included)
© Connector
Speaker cable sticker Color
® FRONT (L) WHITE
@ FRONT (R) RED
@ SURROUND (L) BLUE
@ SURROUND (R) GRAY
® CENTER GREEN
® SUBWOOFER PURPLE
I
I
«#5
Be sure to match the number on each sticker with the
connector color.
I Speaker assembly option
ta
• Be careful not to cross (short-circuit) or reverse the polarity of the
speaker wires as doing so may damage the speakers.
• Don’t use a front speaker as a surround speaker or vice versa. Verify
the type of speaker with the label on the rear of the speaker before
connecting the appropriate cable.
• To avoid injury by falling or dropping the speaker, place the speaker cables
with care not to stumble or hook.
• Do not hold the speaker in one hand to avoid injury by dropping the
speaker when carrying.
IISEiEI
Thread the speaker cable
through the base.
Attach the speaker.
Leave about 120 mm (4 ^% 2 '
V
You can remove and use the cable
from the stand. To reattach the
cable, refer to page 40.
A Insert the wire fully.
^
White
Blue line Push! r
Q
Press into the groove.
0 Tighten securely.
Q Slide into the
groove.
■ Preventing the speakers from falling
• Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that
may not have strong enough support. Improper attachment may result in damage to the wall or speakers.
eg, IliSEI O string (not included)
Thread from the wall to the speaker and tie tightly.
© Rear of the speaker
© Screw eye (not included)
© Wall
© Approx.150 mm (5 2®/32")
