Optional Equipment Connection and Operation
To Audio AMP Connection (Stereo)
Connect to an external audio amp auxiliary input for monitoring sound through a stereo system.

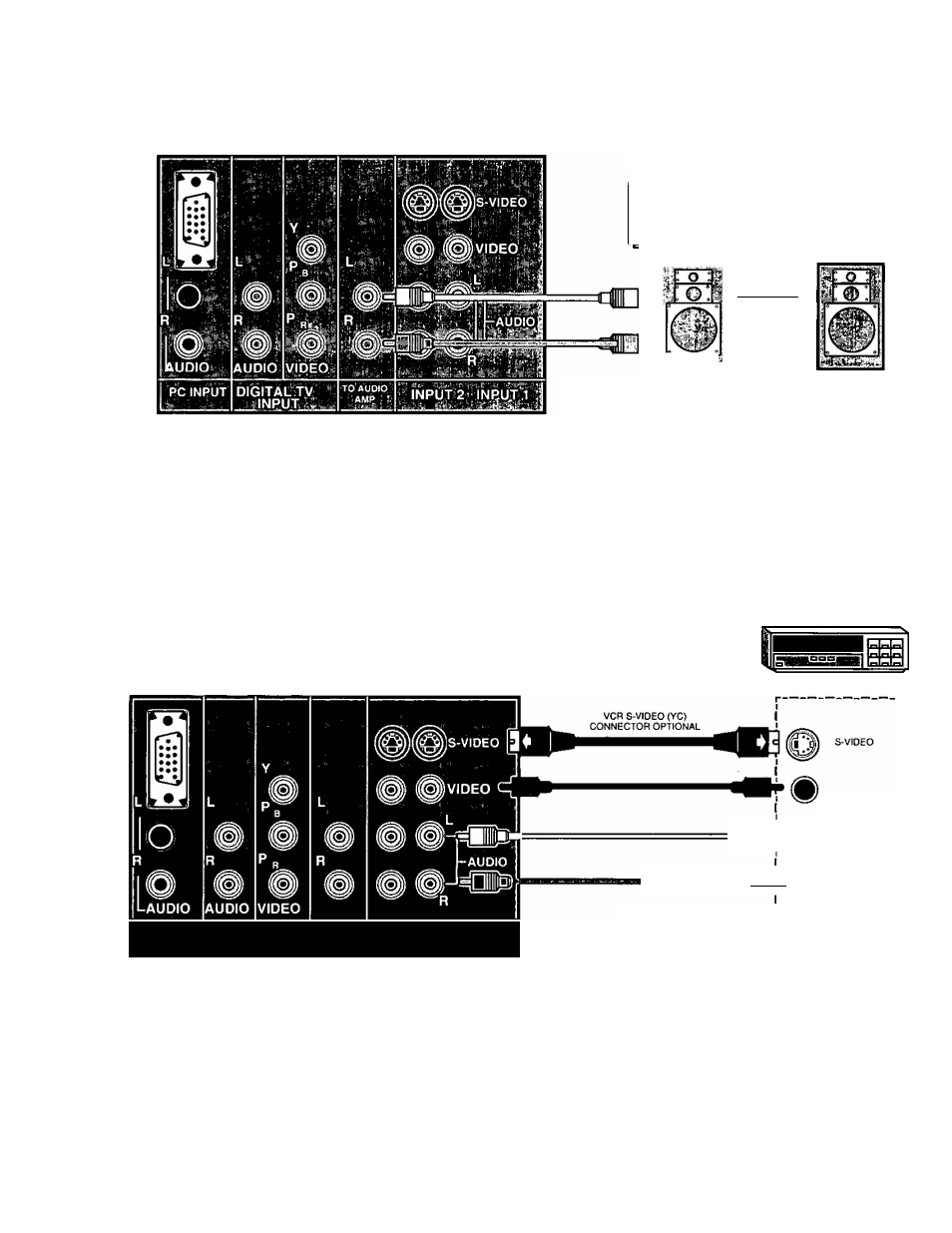

TERMINALS ON BACK OF MONITOR
“TO AUDIO AMP” terminals
cannot be used directly with
external speakers.
ìà==a»mii
(Connecting Cables Not Supplied)
Adjustment - When an audio amp is connected to ‘TO AUDIO AMP” terminals:
1. Select TV SPEAKERS “ON” Mode. {Refer to the Menu TV Speakers section.)
Set volume of audio amp to near minimum.
Adjust volume of TV to desired listening level.
Adjust volume of audio amp to match the level of TV.
Select TV SPEAKERS “OFF&VAO” Mode. (Refer to the Audio Menu TV Speakers section.)
Audio bass, treble, balance, volume and mute can now be controlled by the TV Remote Control.
NOTE: When Selecting TV SPEAKERS “OFF&FAO” Mode, the TV sound output is always at a constant level and cannot
changed (Refer to the Audio Menu TV Speakers section).
Audio/Video Input Connection
TERMINALS ON BACK OF MONITOR
S-Video connection is optional
and overrides the standard Video
connection when connected.
OPTIONAL EQUIPMENT
VIDEO OUT
olDf #
r 1MIIII.I»l«rriL,,MIMi|l
jJH to
JAUDIO OUT
PC INPUT
DIGITAL TV
INPUT
TO AUDIO
AMP
INPUT 2 INPUT 1
VCR or VIDEO
DISC PLAYER
Operation
1. Connect optional equipment as shown to INPUT 1 or 2 terminals. If S-Video is to be used, connect
S-Video (YC) connector to S-Video terminal 1 or 2 and connect audio cables to L & R Audio
INPUT 1 or 2 terminals.
2. Select the desired Video mode by pressing Input or TVA/IDEO button.
3. Operate optional equipment (VCR, DVD or VDP) as instructed in Optional Equipment manual.
NOTE:
• You must select the proper VIDEO Input Mode where the equipment is connected.
• Connection of optional S-VIDEO jack automatically disconnects Video Input 1 or 2 jacks.
-
