PREPARATIONS
1. Power Supply for Camera
Prepare a regulated DC power supply
which can supply DC 12 V ±10 % DC 170
mA or more current and rated CLASS 2.
2. Lenses
Be sure to use the optional manual iris lens
having the following items.
Focus : Adjustable
Lens Weight: Less than 300 g (0.66 lbs.)
Note: If the lens is heavier than 300 g (0.66
lbs.), both the lens and the camera
should be secured by using the sup­
porter.
Mount: C-mount
The protrusion
at the rear of
the lens should
be as shown in
the illustration.
Less than 5/6* (Less than 8 mm)
3. Switch Covers Removal
Caution: The following preparation should
be made by qualified service person­
nel or system installers.
For setting the Switch 1 No,1 to 6 and 2 No.
1 to 6, remove the switch cover fixing screw
on the side panel as shown below.

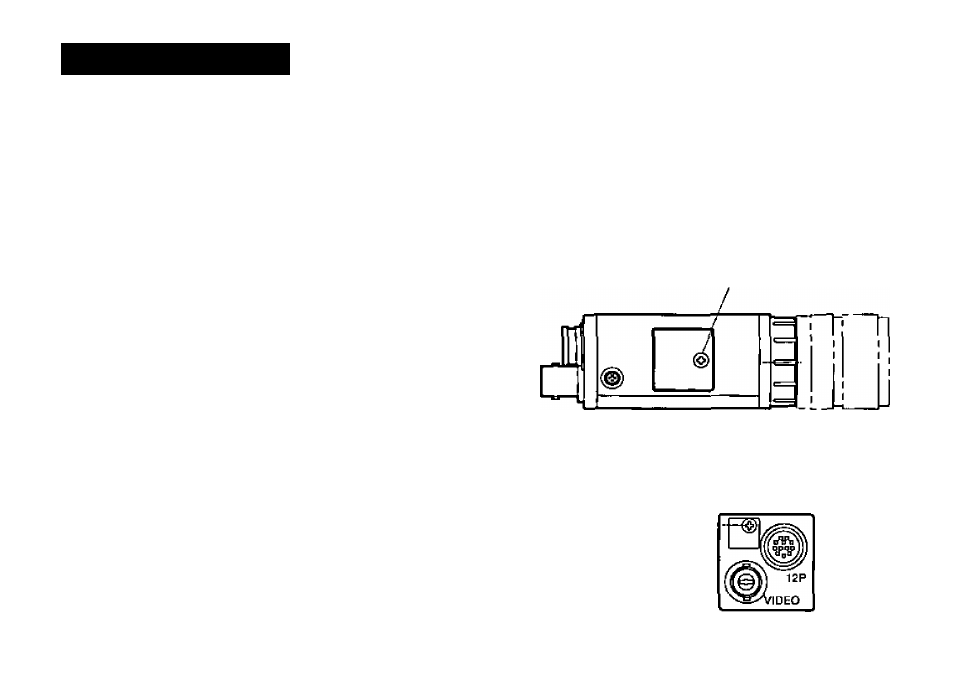

Remove this screw
And to control the pedestal level or gain
level, remove the cover fixing screw on the
rear panel as shown below.
Remove -
this screw
