Connecting to a Power Source
Your Combination VCR goes where you go with two different ways to supply power. You may connect the
supplied AC {alternate current) cord for use with any AC outlet. Or when travelling, connect the supplied DC
(direct current) Car Battery cord which can be inserted in your vehicle’s cigarette lighter.
For your safety and to avoid damage to the Combination VCR, please follow instructions and connections carefully.

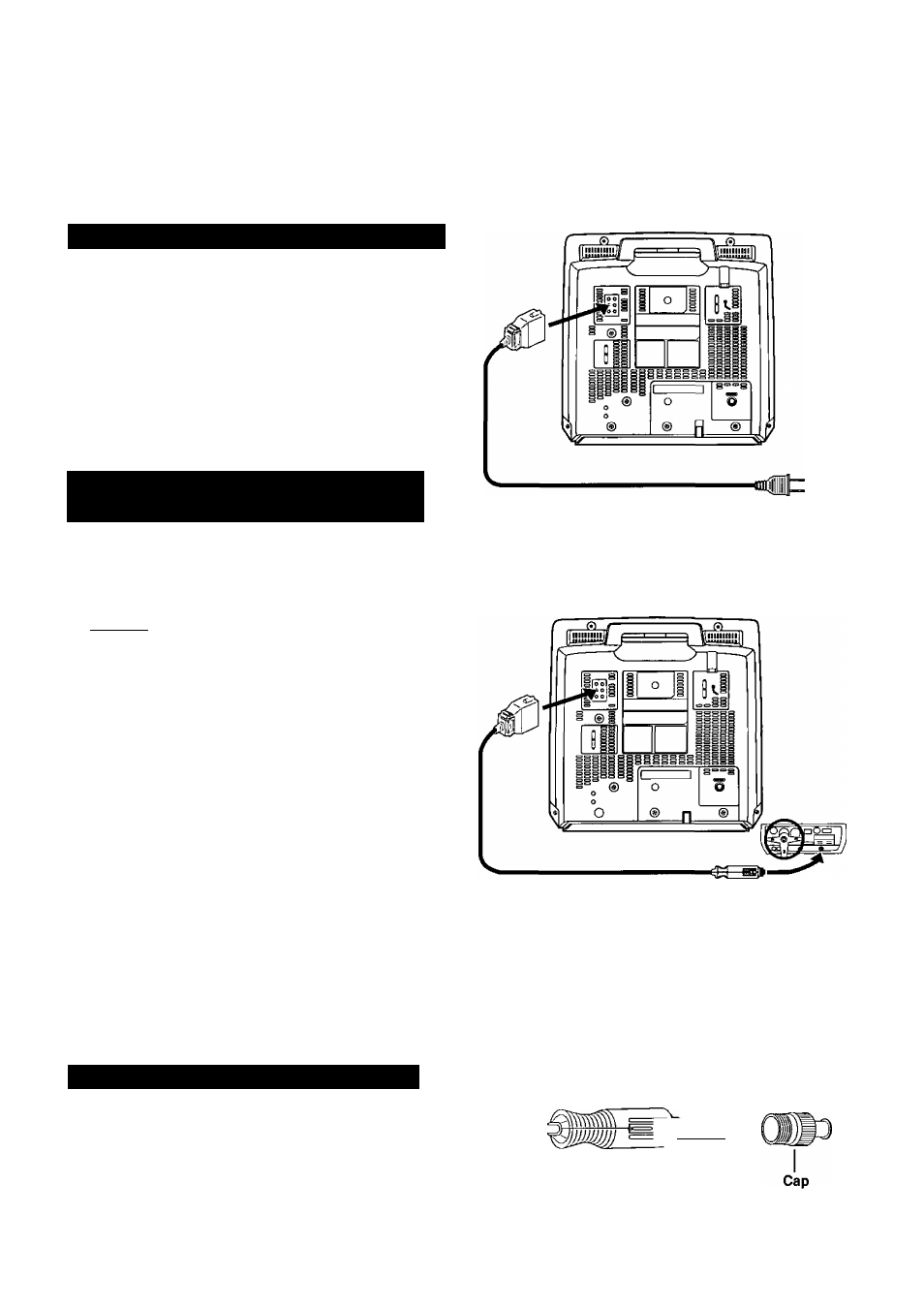

Connecting the (supplied) AC Cord
1 .Connect the supplied AC cord to the AC input
jack on the back of the Combination VCR as
shown.
2. Plug the AC cord into an AC wall outlet.
Connecting the (supplied) DC Car
Battery Cord
1. Connect the DC Car Battery cord to the DC
input on the back of the Combination VCR as
shown.
2. Start the engine of your vehicle.
• DO NOT insert the cord into the cigarette
lighter until the engine is running.
3. Remove the cigarette lighter from it’s socket
and insert the Car Battery plug in it’s place.
IMPORTANT NOTES
• This cord can only be used in vehicles
equipped with DC 12V (negative ground)
batteries. Check your car’s owner’s manual.
• Use the only the Car Battery cord packed
with your Combination VCR.
• To avoid a loss voltage, do not attach an
extension to the Car Battery cord.
• When unit is not in use, disconnect the Car
Battery cord from the cigarette lighter socket
to save car battery.
Replacing the DC Car Cord Fuse
If the safety fuse in the car cord plug blows out,
replace it as follows.
1. Unscrew the cap (counterclockwise).
2. Replace using a 125V 13A fuse.
• Only use fuses with the exact voltage and
amps specified.
3. Replace the cap (clockwise).
M gy~n
Fuse
