Magliner SLIDER RAMP ASSEMBLY AND PARTS LIST - Manual (Page 2)

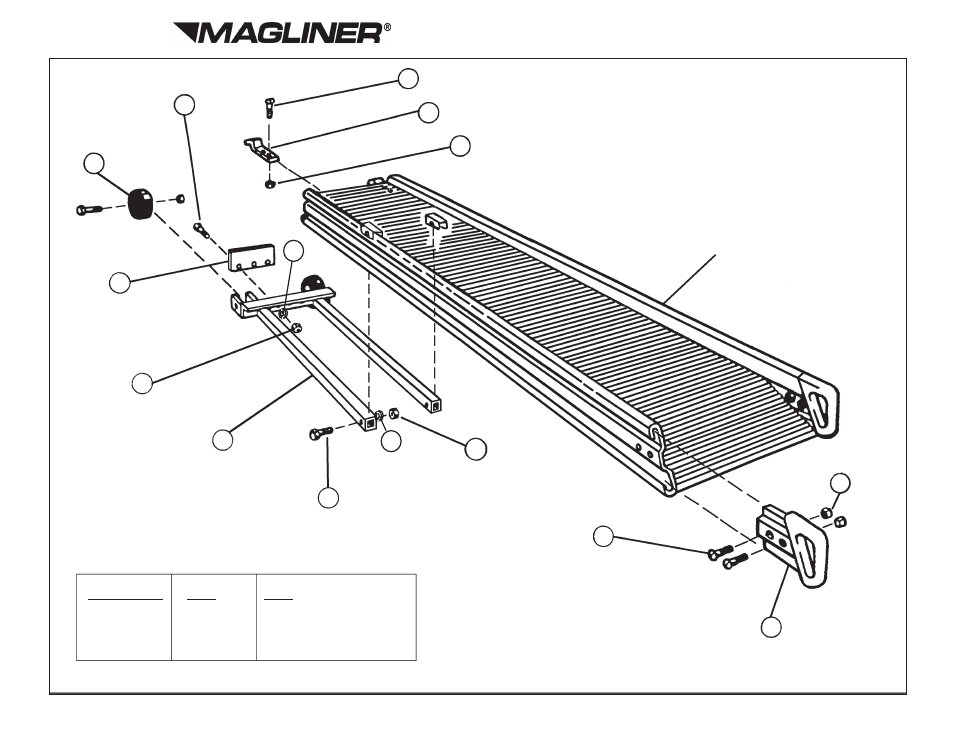

Slider® Ramp Replacement Parts List (Ramp & Carriage Assembly)
1
Handle
R.H. 34040
L.H. 34041
2
3
34004 Anti-Theft
Plate
34005 Ramp Hook (2)
6
80256 1/4"-20 x 3/4"
P.H. Mach Screw (4)
80109 3/8"-16 x 1-3/4"
Button Head Hex Screw (4)
80011 5/16"-18 x 1"
Hex Head Cap Screw (3)
8
80017 5/16"-18 x 2-1/4"
Hex Head Cap Screw (2)
80675 1/4"-20 Locknut (4)
80676 5/16"-18
Locknut (12 w/Lift Assist;
5 without Lift Assist)
80603 3/8"-16 Locknut (4)
Complete Ramp Assembly
(Includes Items 1 & 5)
www. magliner.com Magline ® , Inc., Standish, MI 48658, U.S.A., • 1-800-624-5463 (In U.S. & Canada) • (989) 512-1000 (Outside U.S. & Canada) • Fax (989) 803-5941 © 2010-2011, Magline, Inc. Form No.
B7570
Weldment Only Carriage Assembly (Incl. 2 & 4)
Carriage Series Part # Part #
2400 34309 34308
2600 34069 34002
3200 34117 34116
Rev 3/11
11
10
5
34100 3-1/2" Dia. Wheel
with axle, bushing and nut
4
12
7
80676 5/16"-18
Locknut (12 w/Lift Assist;
5 w/out Lift Assist)
11
9
Carriage
Weldment
13
80752
5/16" lock washer
(12 w/Lift Assist; 5 w/out
Lift Assist)
13
