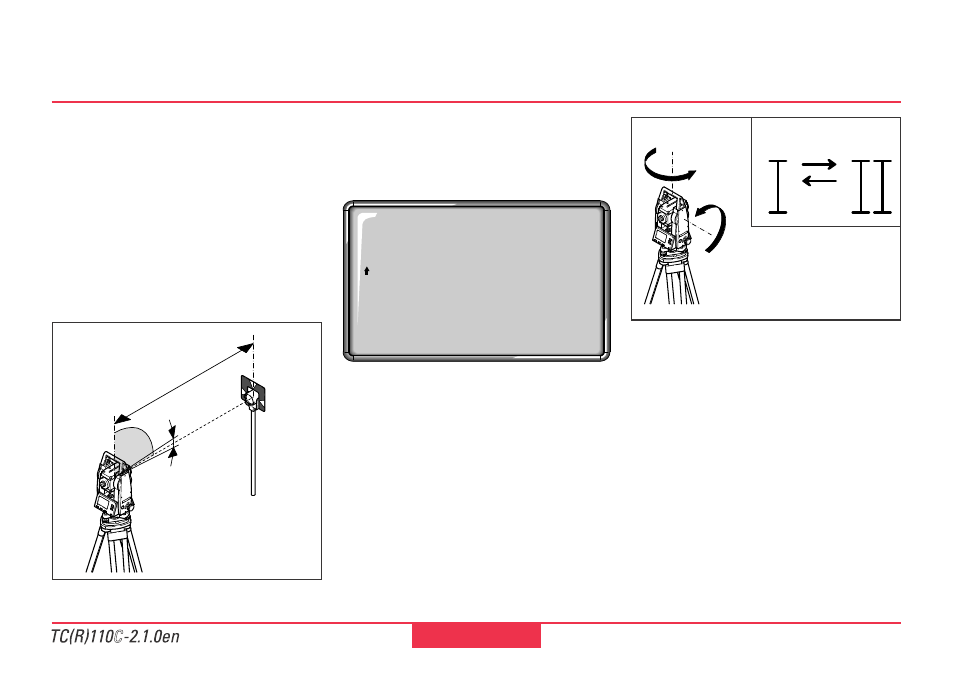

Determining The Line-Of-Sight Error (c)

1. Level up instrument exactly

using the electronic level.

2. Start Hz-collimation (refer to

p. 55).

3. Aim at a point approximately

100m from the instrument
that is less than ± 4°30' (5
gon) from the horizontal.

For checking the horizontal
aiming Hz- and V-angles are
displayed.

4. [MEAS] Trigger

measurement.

5. Change telescope face and

aim on point again.

6. [MEAS] Trigger

measurement again.
