Operating concept, Keyboard

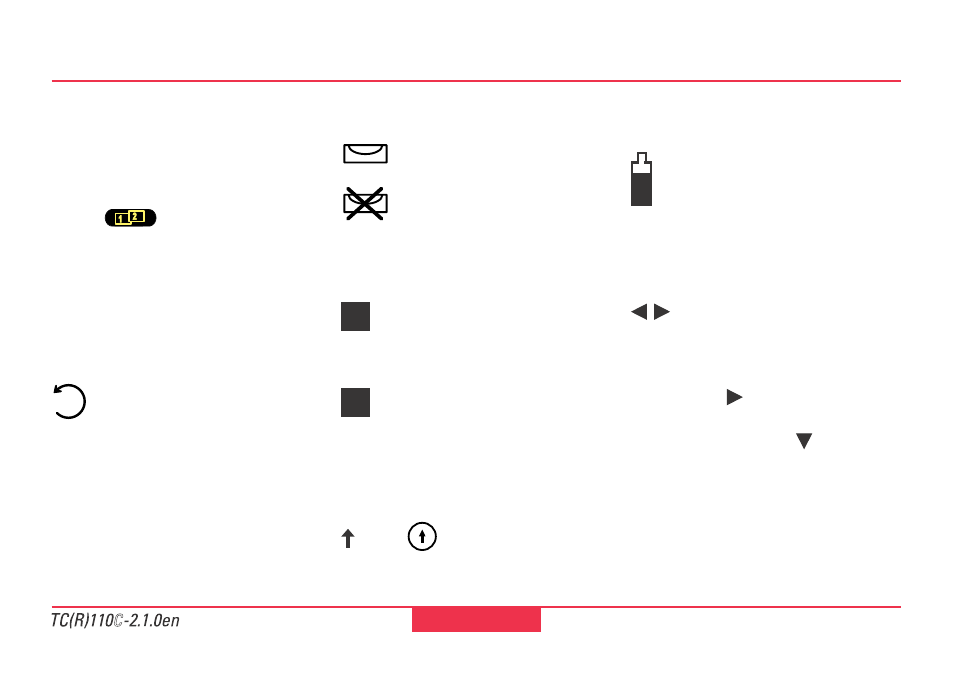

Status symbol "Battery
capacity"

The battery symbol
indicates the level of the
remaining battery
capacity (75% full shown
in the example).

A double arrow indicates
choice fields.
The desired parameter
can be selected using
the

button.

Selection fields can be
left with the button.

Compensator status

Compensator switched
on (2 axes).
Compensator switched
off.

Status symbol "EDM type"

Infrared EDM (invisible)
for measuring with
prisms and reflective
targets.
Reflectorless EDM
(visible) for measuring
without prisms.

Status Symbol "Shift"

was pressed.

1/3, 2/3, 3/3
1/2, 2/2

Indicates that several
pages are available which
can be selected with

. The last page is

followed by the first.

.. /..

Current page / total
number of pages

I, II

Indicates telescope face I
or II

Indicates that Hz is set to
"left side angle
measurement" (anti-
clockwise).

Symbols
