11 other interfaces – DVR systems DVRxx04HF-S Series User Manual
Page 63
53
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR.
3.11 Other Interfaces

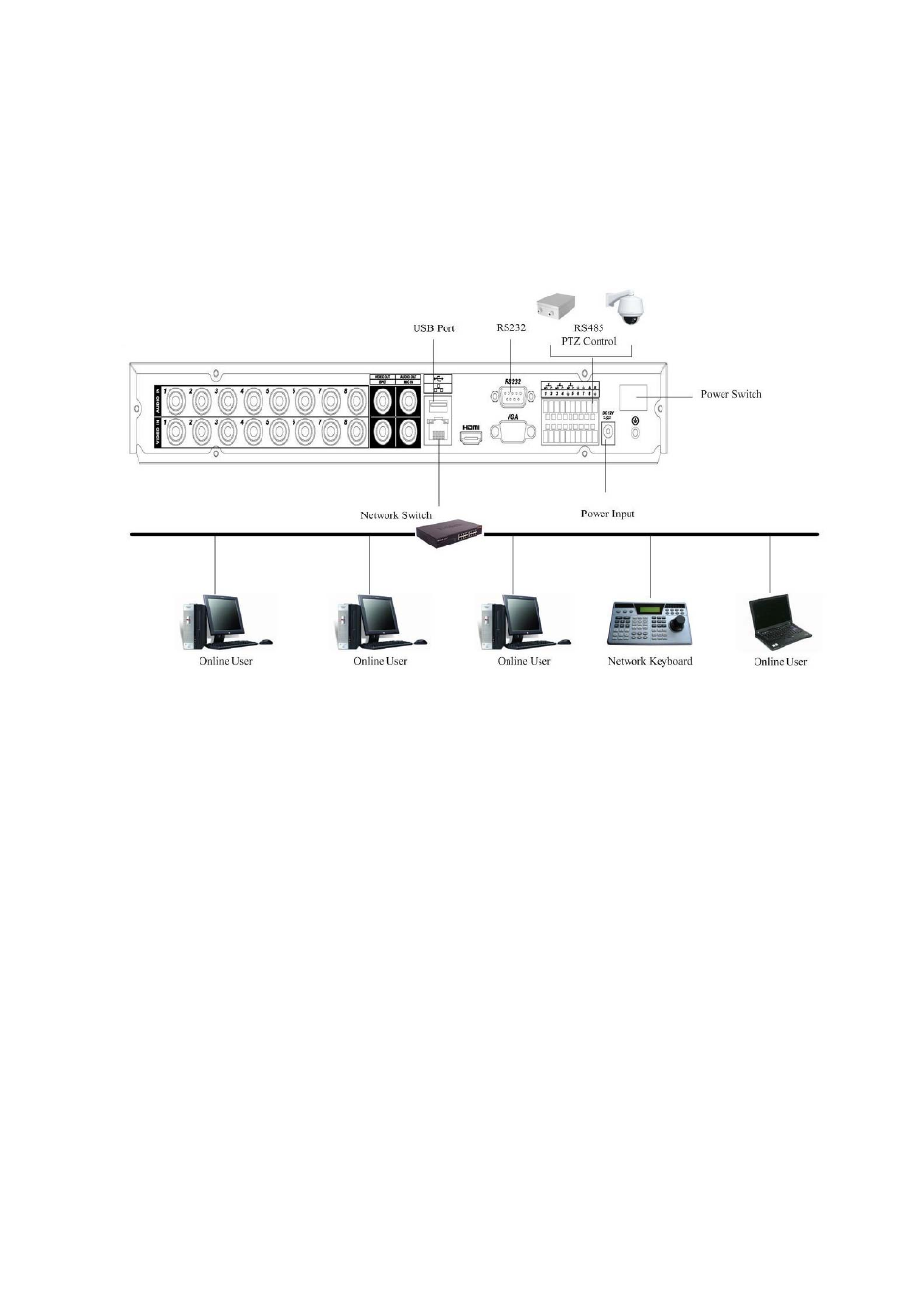

There are still other interfaces on the DVR, such as USB ports. You can refer to the Figure 3-6 for
more information.
1U series
