DVR systems DVRxx04HF-S Series - Manual (Page 118)

108
There are total four groups IP. The record channel applies to one group (optional) only.
Six frame ID groups verification can guarantee information validity and legal.

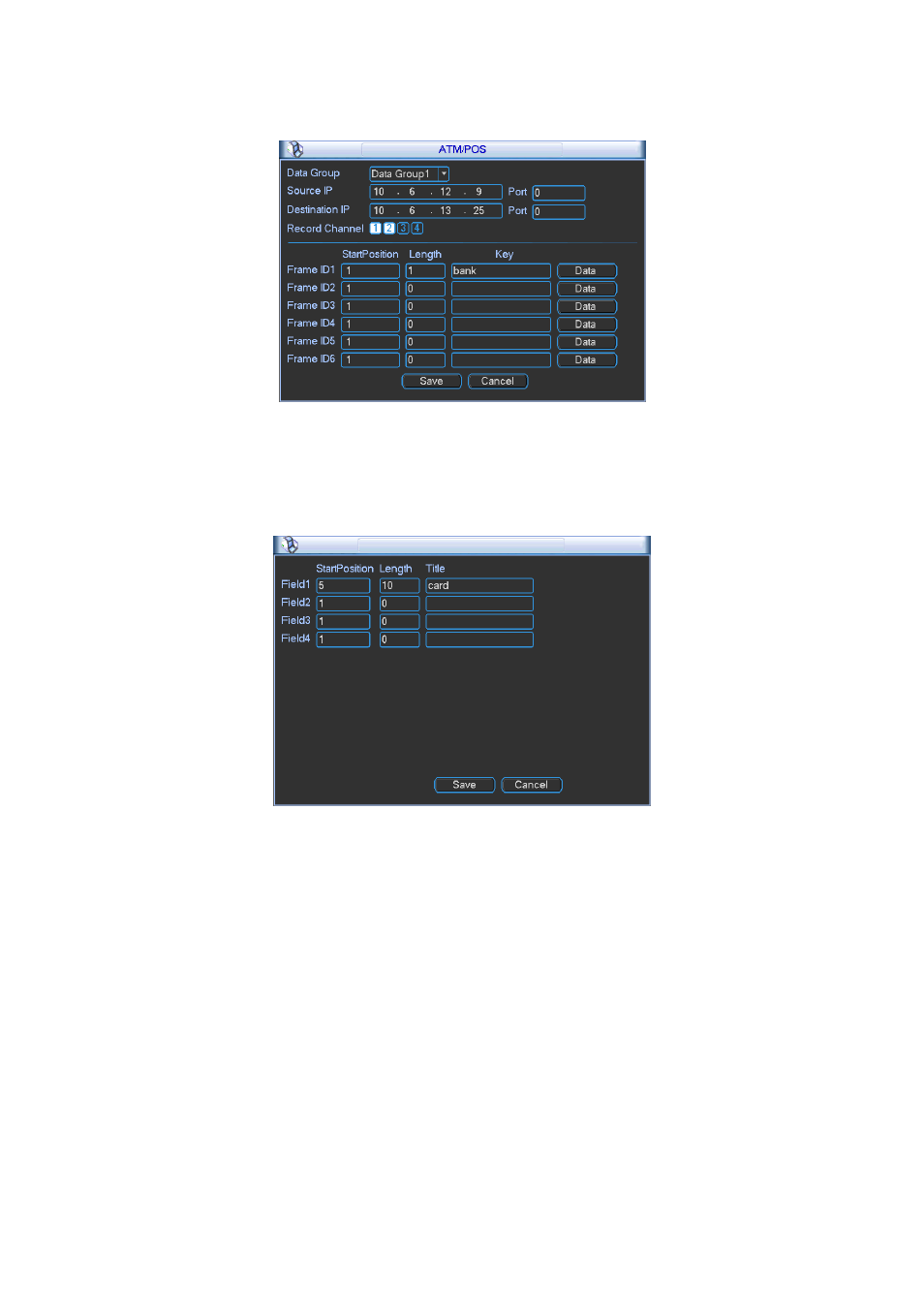

Figure 5-48
Click Data button you can see an interface is shown as in Figure 5-49.
Here you can set offset value, length, title according to your communication protocol and data
package. .
Figure 5-49
5.5.10 Config File Backup
The configuration file backup interface is shown as below. See Figure 5-50.
This function allows you to copy current system configuration to other devices.
