5 dte adapter, 10 programmable buffered interface, model p53 [dte – CANOGA PERKINS 2270 Fiber Optic Modem User Manual
Page 42
42
Canoga Perkins
3.9.5 DTE Adapter
This adapter is supplied with the P53 interface and should be used when connecting to a DCE
device. This allows the use of a straight-through RS-530 cable. Figure 3-10 illustrates the DCE to
DTE pin assignments. The gender of this adapter on the user side is male.

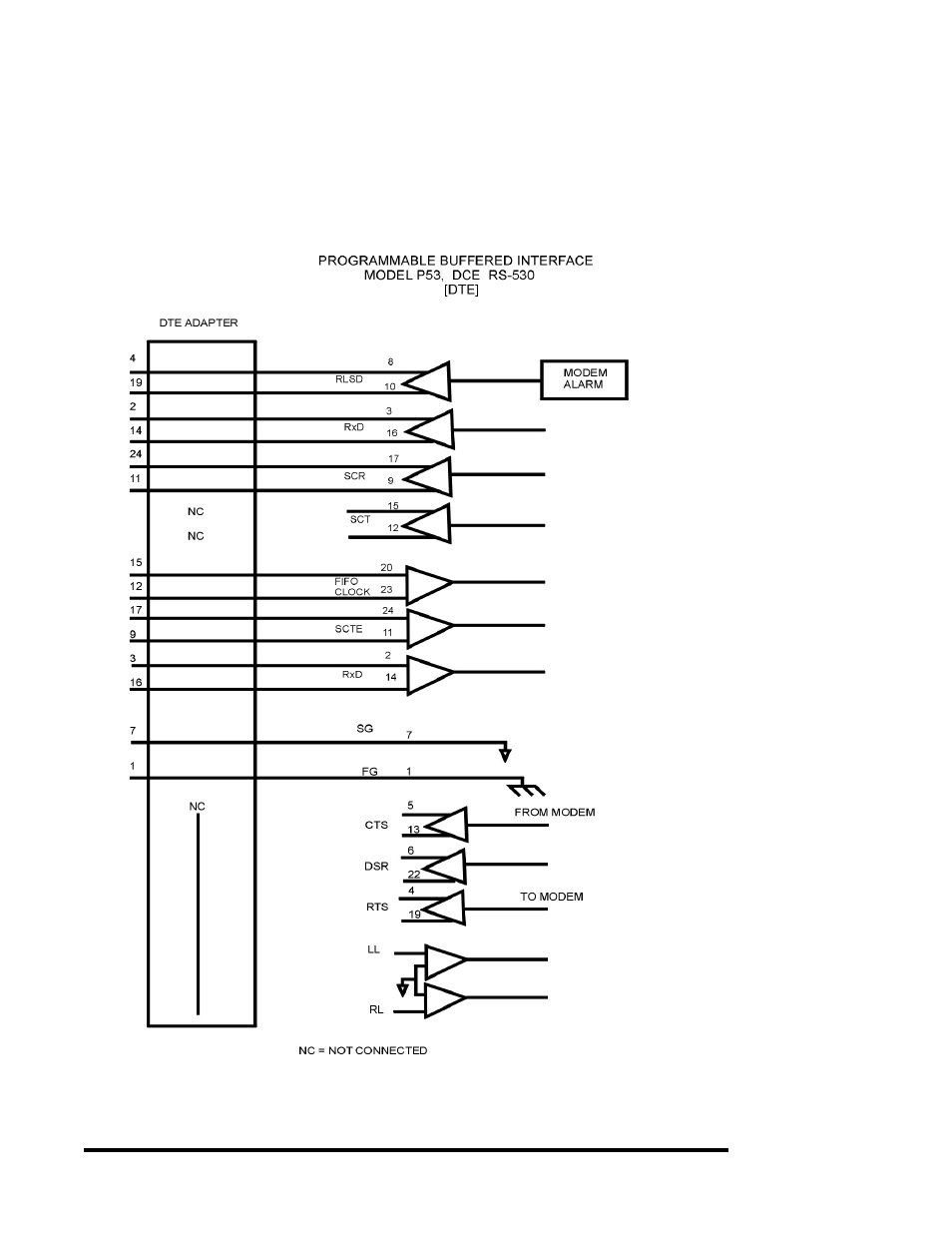

Figure 3-10.
Programmable
Buffered Interface,
Model P53
[DTE]
