Page 9 For technical questions, please call 1-800-444-3353. SKU 96035
instructions For putting
into use
read the entire important
saFetY inFormation
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
to preVent
serious injurY
From accidental
operation:
release the trigger and unplug
the tool from its electrical outlet
before assembling or making any
adjustments to the tool.
note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.

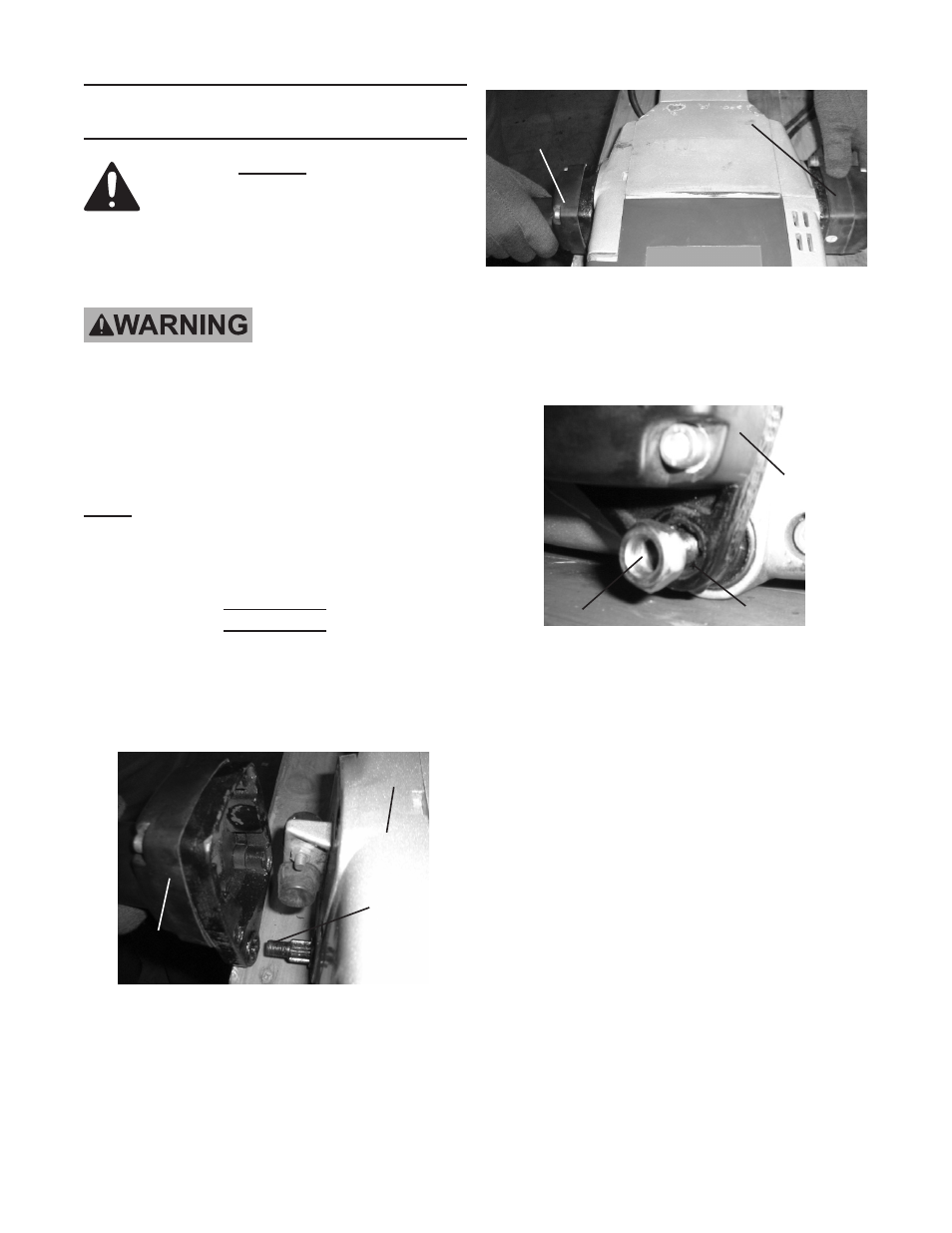

assembly
The only assembly required for the
Breaker Hammer is the installing of the Left
Handle (92) to the side of the Gear Box (23)
and the Spline Axle (27).
Gear
Box (23)
Spline
Axle (27)
Left
Handle
(92)
Figure A
1.
First, slide Left Handle over the Spline
Axle so that the end of the Spline Axle
slides through the opening in the Left
Handle. See Figure A.
Left
Handle
(92)
Figure B
Right
Handle
(89)
2. With your other hand, hold and slightly
twist Right Handle (89) while slowly
manipulating Left Handle over the Spline
Axle until the splines line up and it fits
snug into place. See Figure B.
Figure C
Nut (91)
Left
Handle
(92)
Spline Axle (27)
3. Thread Nut (91) over tip of Spline Axle.
Use Wrench (not included) to fasten
Nut, securing Left Handle in place.
Periodically, check Nut for tightness.
See Figure C.
