Page 13 For technical questions, please call 1-800-444-3353. SKU 96035
Clearly mark the work area. 1.
Plug in the Breaker Hammer. 2.
Place the Chisel on the block you will be 3.
breaking.
note: carbon brushes (51) will wear
during use. the breaker Hammer will
cease functioning if the brushes are
worn. this does not mean breaker
Hammer is malfunctioning or broken,
only that the worn brushes will need
to be replaced with the included
Brushes by a qualified technician.
Grasp the handles firmly with both hands
4.
and depress the Trigger (86).
As you break the block into big chunks, 5.
release the Trigger (86) and move to
other large pieces until all of the larger
pieces are broken. Do not try to break
up smaller pieces with this tool as it is
too powerful and aggressive to control
on small pieces.
When you are finished, release the
6.
Trigger (86) and unplug the cord.
Clean, then store indoors out of 7.
children’s reach.
important - replacing carbon
brushes
tHe breaker Hammer will
cease operation once tHe
carbon brusHes are worn.
Check Carbon Brushes (51) after every
hundred (100) hours of regular use. If brush
change is necessary, it must be done by a
qualified service technician.

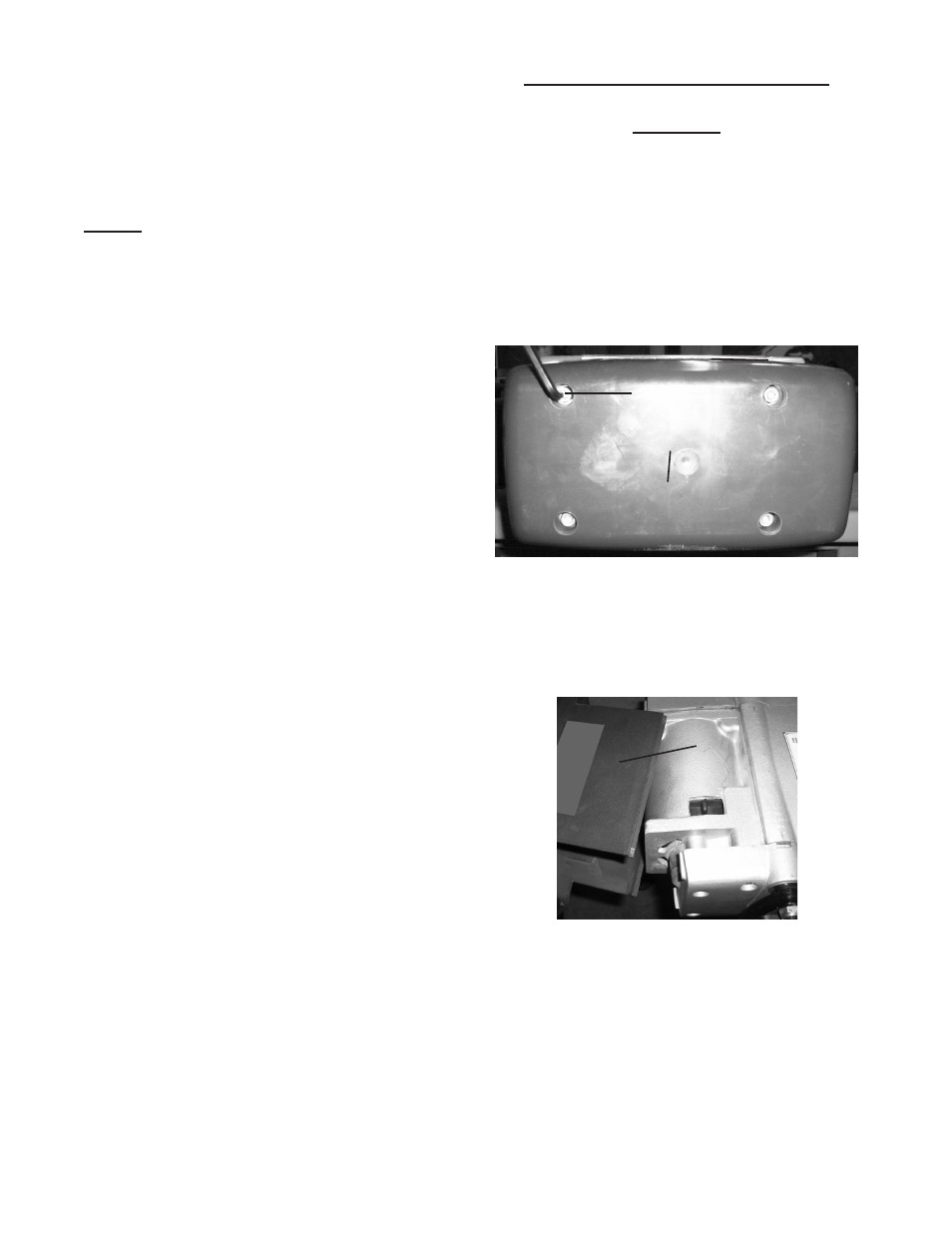

Figure 4
Screws (1)
Cover (2)
1. Set the Breaker Hammer down on a
work bench with the spline axles closer
to the top. Use a 5mm Hex Wrench (not
included) to loosen the four Screws (1)
fastening Cover in place. See Figure 4.
Cover (2)
Figure 5
2. Slide Cover off top of Breaker Hammer.
See Figure 5.
